LM2596 DC to DC Step Down Module

Detail LM2596 DC to DC Step Down Module

Hi #RekanEasyWare ...
EasyWare Part#: EP000307

A versatile power supply DC-DC converter module that offers a wide range for both input voltage (4V-35V) and output voltage (1.23V-30V). Tabs on each side allow for the input / output leads to be easily soldered on.

NOTE:
- Putar trimpot searah jarum jam, ini memakan sekitar 20 putaran untuk mendapatkan efek.

Spesifications :
- Input voltage: 4V to 35V DC
- Output voltage: 1.23V to 30V
- Output current: 3A max
- Regulator IC: LM2596S
- Efficiency: 92%
- Switching frequency: 150Khz
- Output ripple: 30mV max
- Load regulation: ±0.5%
- Voltage regulation: ±2.5%
- Opearting temperature: -40º to 85ºC

Package :
- 1x Adjustable Switching Power Supply Module IN 4V-35V OUT 1.5V-30V LM2596S Step-Down Converter

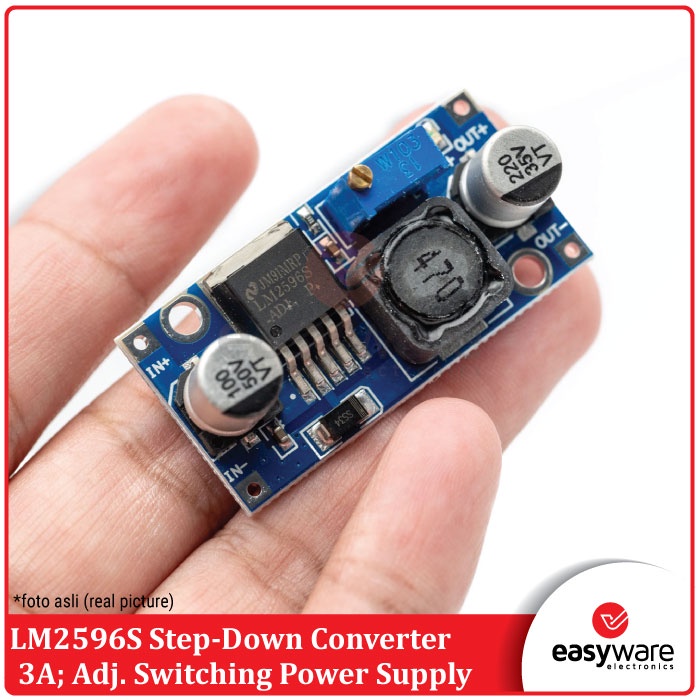

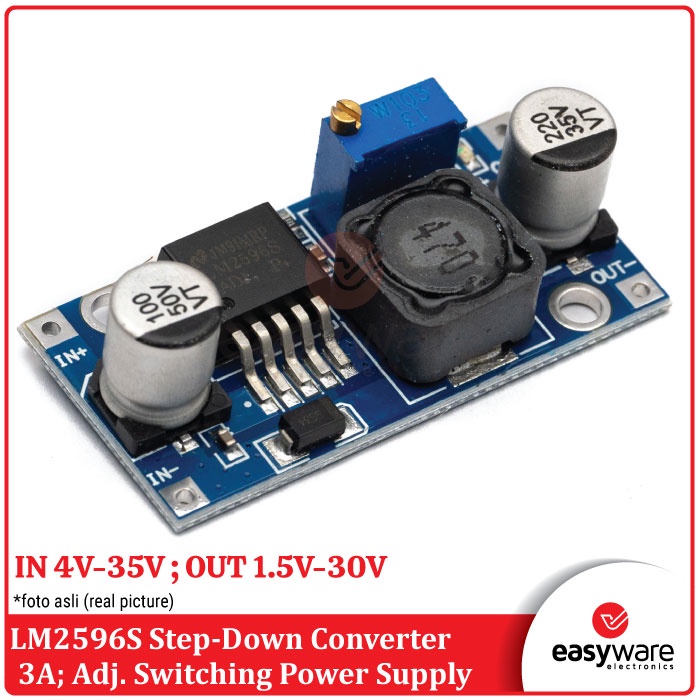

Gambar produk
