LM2596 DC 3A step down module power suplay voltage regulator LM2596S

Detail LM2596 DC 3A step down module power suplay voltage regulator LM2596S

Note:
- Input harus lebih tinggi 1.5V dari output

Specifications:
- Input voltage: 3.2-40V
- Output Voltage: 1.2V-35V (adjustable)
- Output Current: Rated 2A, Max 3A (need to add heat sink), if the output power greater than 15W, combined heat sink is proposed.
- Conversion Efficiency: Up to 92% (output voltage higher, the higher the efficiency)
- Minimum Dropdown voltage: 1.5V
- Voltage Regulation: 0.5%
- Dynamic Response Speed: 5% 200uS
- Circuit Protection: SS36
- Operating Temperature: Industrial grade (-40 to +85) (output power 10W or less)
- Dimension: 43mm * 21mm * 14mm

Package Content:
- 1x LM2596 DC-DC Step Down

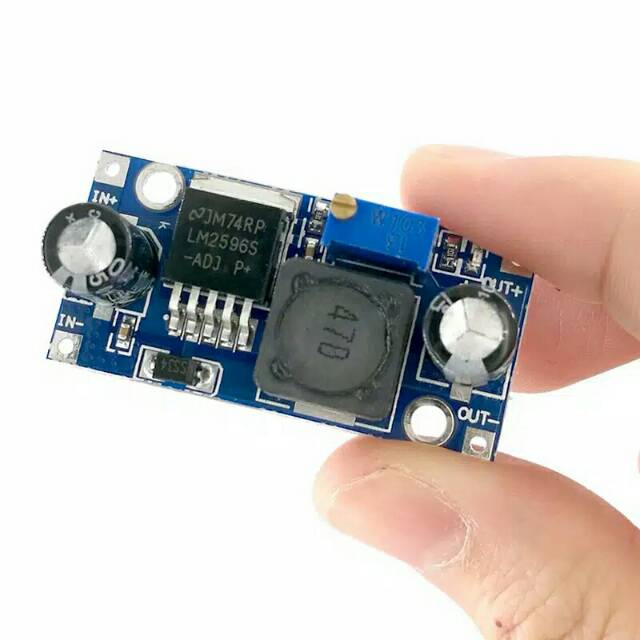

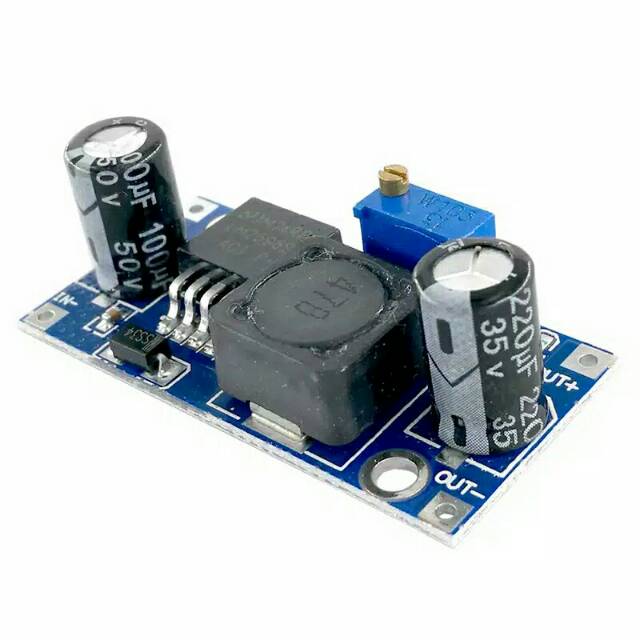

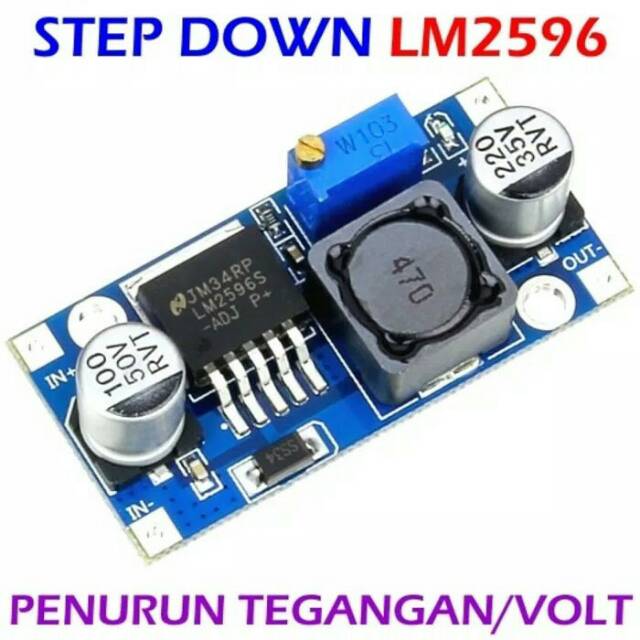

Gambar produk
