LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596

Elektronik > Elektronik Lainnya > LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:ratu_grosir1Lihat semua produk Elektronik oleh ratu_grosir1
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596

Electronics Description :
Conversion efficiency: Up to 92% (output voltage higher, the higher the efficiency)
Switching Frequency: 150KHz
Rectifier: Non-Synchronous Rectification
Module Properties: Non-isolated step-down module (buck)
Short circuit protection: current limiting, since the recovery
Operating temperature: Industrial grade (-40 to +85 ) (output power 10W or less)
Full load temperature rise: 40
Load regulation: 0.5%
Voltage regulation: 2.5%
Dynamic response speed: 5% 200uS

Specification:
Input voltage:3-40V
Output voltage:1.5-35V(Adjustable)
Output current:Rated current is 2A,maximum 3A(Additional heatsink is required)

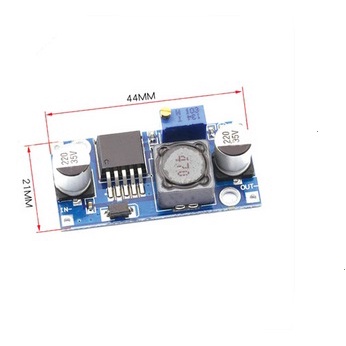

Dimension:45*20*14mm(L*W*H)

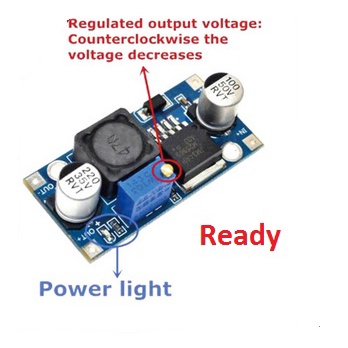

Gambar produk

LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
LM2596 adjustable Module DC step down 3A in 3-40V out 1.5-35V LM 2596
Lihat lebih banyak informasi produk
