Detail LJ12A3-4-Z-BY PNP DC 6V-36V Inductive Proximity Sensor Detection

Deskripsi Produk
LJ12A3-4-Z/BY PNP DC 6V-36V Inductive Proximity Sensor Detection (3 wires)

Size : 58 x 12mm (L x Diameter), thread lenght 40mm
Head diameter: 10.5mm
Cable Length(Approx.) : 115cm
Material : Plastic & Metal
Protection class: IP65
Implementation standards: GBT14048.102008
Certificates: CE

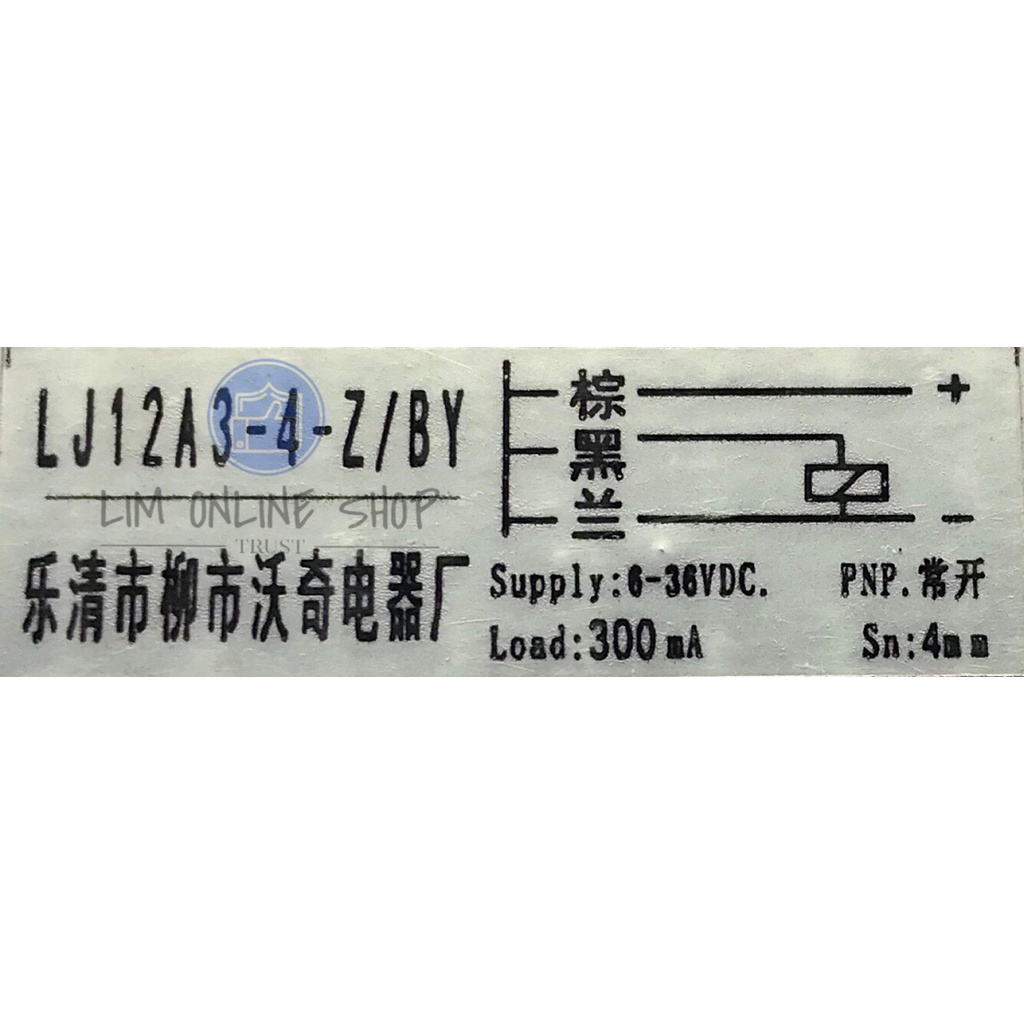

Output: PNP- NO(Normal Open)
Detection distance: 4mm (effective 0-4mm)
Detection objects: metal material
Voltage : DC 6-36V Max 200mA
Output indicator: LED
