Lithium battery protection board 3/4/6MOS 3.7V &3,2V (079)

Detail Lithium battery protection board 3/4/6MOS 3.7V &3,2V (079)

Lithium battery protection board 3/4/6MOS (079)


***3MOS Operation parameters:
Charging test voltage: 4.25 + / - 0.05 V
Charging: release of the 4.23 + / - 0.05 V
A discharge detection voltage: 2.45 + / - 0.1 V
Maximum sustained current: 6 a
Over-current detection current: 7.5 A
Charging voltage: 4.2 V
Product size: 35 * 7.4 * 7.4 MM
IC components: DW01 + 8205A

***4MOS Operation parameters:
Over charge voltage: 4.25±0.05V
Over charge release voltage:4.23±0.05V
Over discharge voltage:2.54±0.1V
Maximal continuous charging/discharge current: 7.5A
Maximal Discharging current: 10A
Size: L35*W7*T2mm
IC component: DW01+8205A
Weight: 10g

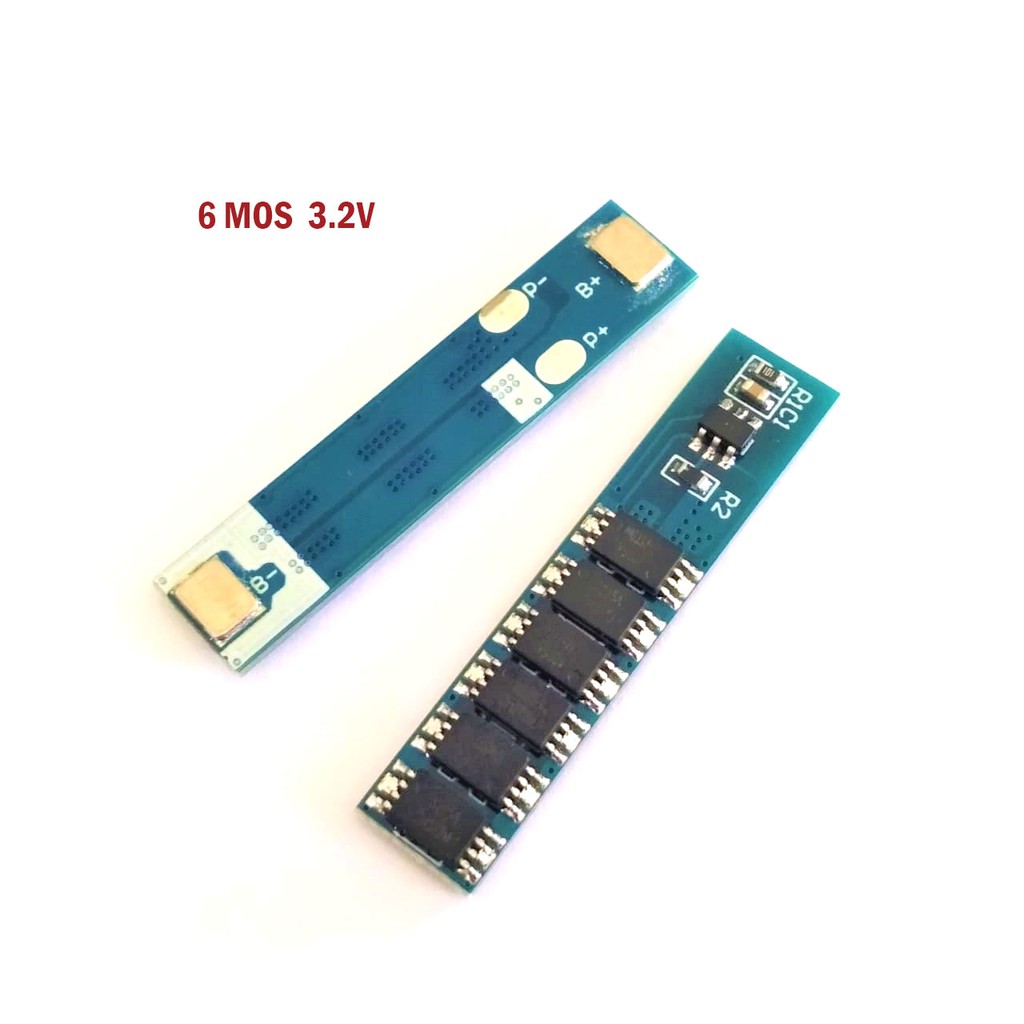

***6MOS Operation parameters:
Overcharge detection voltage: 4.25 + 0.05V
Overcharge disconnection voltage: 4.23 + 0.05V
Overdischarge detection voltage: 2.45 + 0.1v
Maximum continuous current: 12A
Overcurrent detection current: 15A
Charging voltage: 4.2v
Product size: 35*7.6*2MM
IC component: DW01+8205A
