Detail Lithium battery protection 2 strings of 6.4V (075)

Lithium battery protection 2 strings of 6.4V (075)

Perhatian !!!
Papan pelindung ini tidak dapat digunakan untuk lampu hernia, kemasan baterai bor tangan, unit baterai mesin ikan elektrik, paket baterai sepeda listrik, baterai mobil anak-anak, motor di atas 775 (4A), lampu LED fisheye 1W

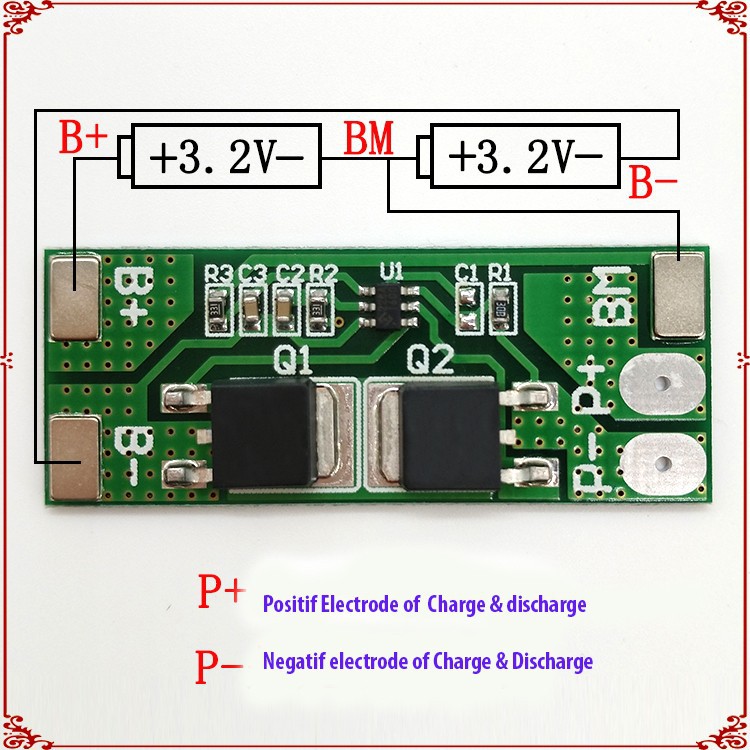

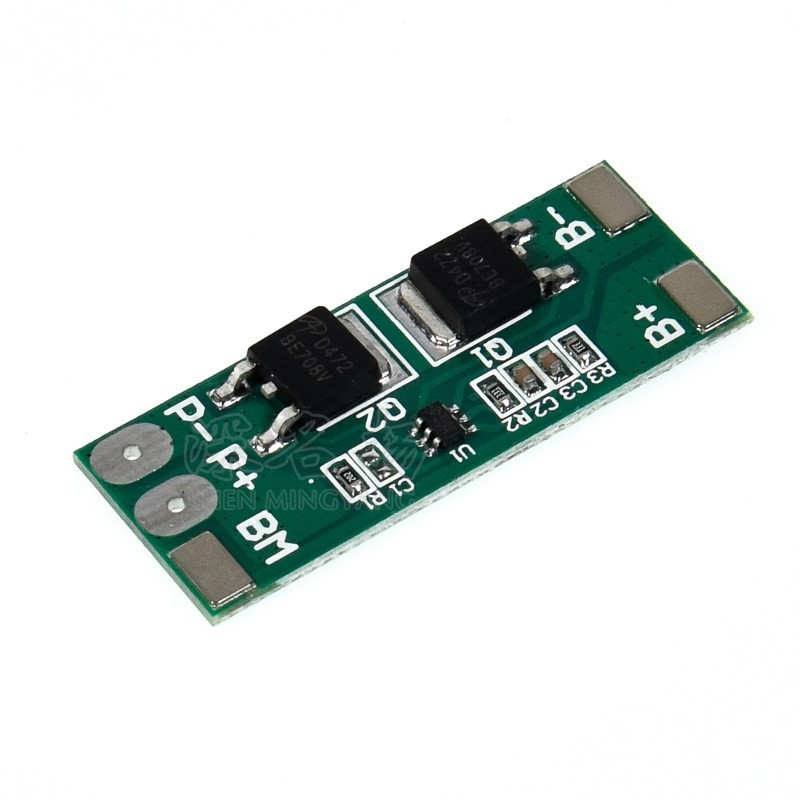

The properties of 2 strings of 6.4V lithium iron phosphate protection boards:

Model: HX-2S-D01

Overcharge voltage range: 3.65v±0.05v

Size: 41*16*3.5mm

Over discharge voltage range: 2.0-2.5v±0.05v

Maximum working current: 8A Working temperature: -40---+50℃

Upper limit instantaneous current: 10A Storage conditions: -40-- +80℃

Quiescent current: less than 10uA Effective life: more than 50,000 hours

Internal resistance: less than 300mΩ Short circuit protection: can be protected, need to charge recovery
