lithium battery 3 seri 12V 18650 protection 11.1V 12V 12.6V (4049)

Detail lithium battery 3 seri 12V 18650 protection 11.1V 12V 12.6V (4049)

lithium battery protection board 3 seri 11.1V 12V 12.6V

3 series 12V 18650 lithium battery protection board ,11.1V 12.6V anti overcharge and overdischarge ,overcurrent protection 10A \ 3 series 11.1V, 12V, 12.6V lithium battery protection plate with overcharge, over discharge, short-circuit function, 10A current limit \ 3 series 12V18650 lithium battery protection plate 11.1V 12.6V with balanced 25A over flow charging and discharge protection

catatan:
Papan perlindungan ini tidak dapat digunakan untuk baterai lithium besi fosfat, lampu xenon, paket baterai bor tangan, paket baterai ikan listrik, paket baterai sepeda listrik, baterai mobil anak-anak, motor 775 (4A) di atas, lampu LED fisheye 1W, digunakan di di atas Harap perhatikan pelanggan yang membeli kombinasi tersebut!

The lithium battery protection board properties:

Model: HX-3S-FL10-A Over charging voltage range: 4.25-4.35v±0.05v
Size: 53*17*4.0mm Over discharge voltage range: 2.3-3.0v±0.05v
Maximum operating current: 6-8A Operating temperature: -40---+50°C
Upper limit instantaneous current: 10-13A Storage condition: -40-- +80°C
Static current: less than 30uA effective life: more than 30000 hours
Internal resistance: less than 100mΩ Short-circuit protection: protection, delay self-recovery.
Charging voltage: 12.6V-13V

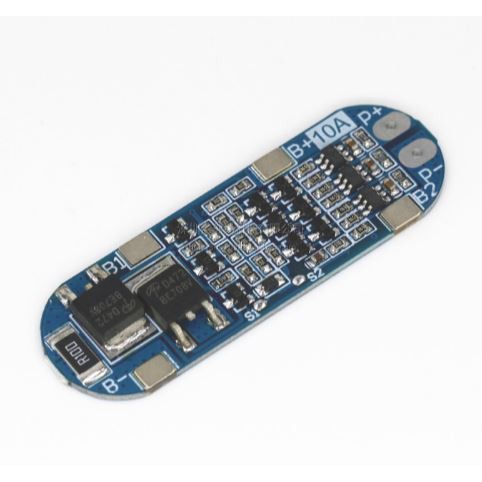

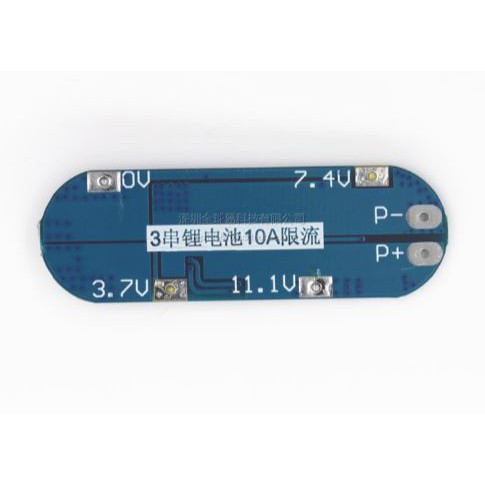

The protection board size and device description;
The protection board size is 53*17*4.0mm; the components are 2110-CB protection chip and AOD472*2

Gambar produk
