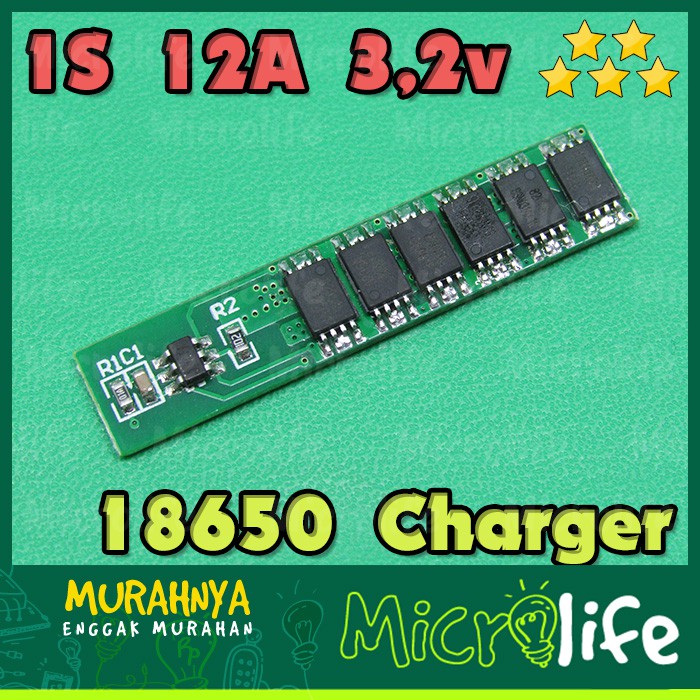

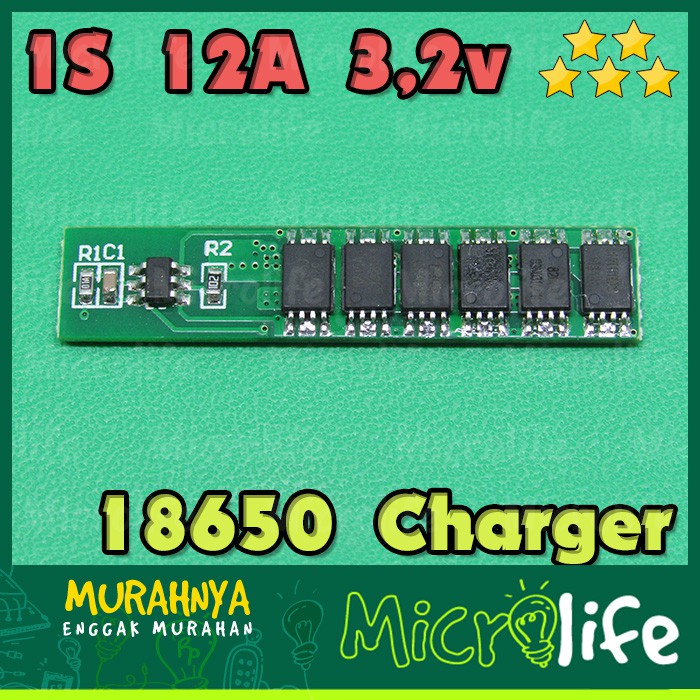

Detail LITHIUM BATTERY 1S 12A 18650 CHARGER MODULE PROTECTION
Lithium Battery 1S 12A 18650 Charger Module ProtectionModul charger dengan fungsi proteksi pengisian daya berlebihan , proteksi over discharge, korsleting, dan proteksi kelebihan arus
Detail Produk :
++ Overcharge detection voltage: 3.75V±0.25V
++ Overcharge release voltage: 3.6V±0.25V
++ Over discharge detection voltage: 2.1±0.05V
++ Overcurrent detection current: 15A
++ Continuous operating current: 12A
++ Charging voltage: 3.6V
++ Size: 35*7.6*2.2MM
++ MOS: 8205A*6
Connection description:
B+ connect to battery+
B- connect to battery-
P+ for battery output input+
P- for battery output input-
Isi Paket :
1x Lithium Battery 1S 12A 18650 Charger Module Protection
