Lithium Baterai Charger Modul 3S/4S/5S 3.7V 100A BMS Protection Board

Detail Lithium Baterai Charger Modul 3S/4S/5S 3.7V 100A BMS Protection Board

Lithium Baterai Charger Modul
3S / 4S / 5S 3.7V 100A BMS Protection Board

BMS ini adalah modul pengisian sekaligus protection untuk baterai Lithium 3.7V

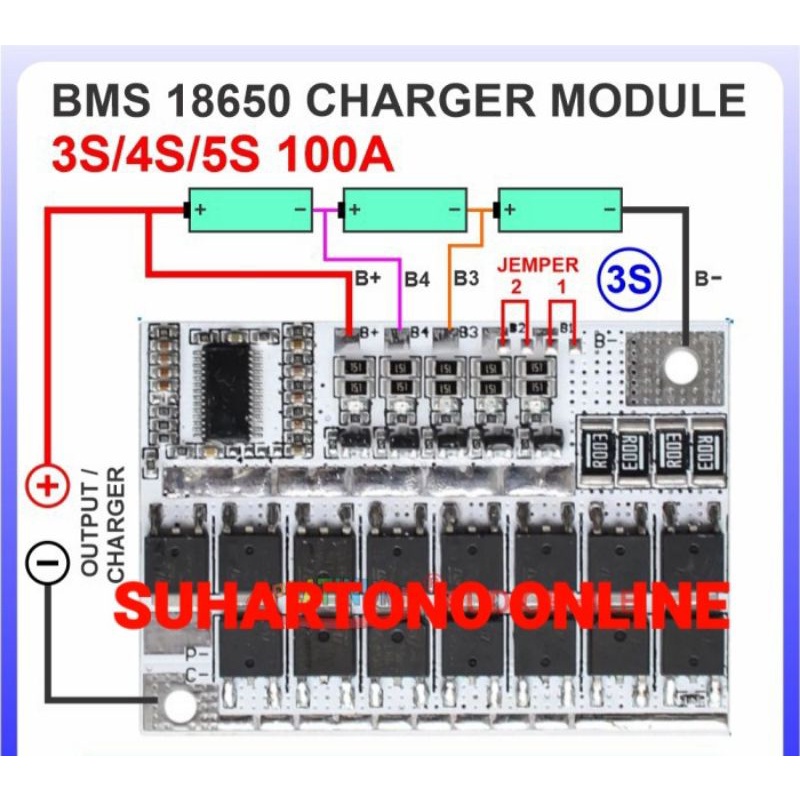

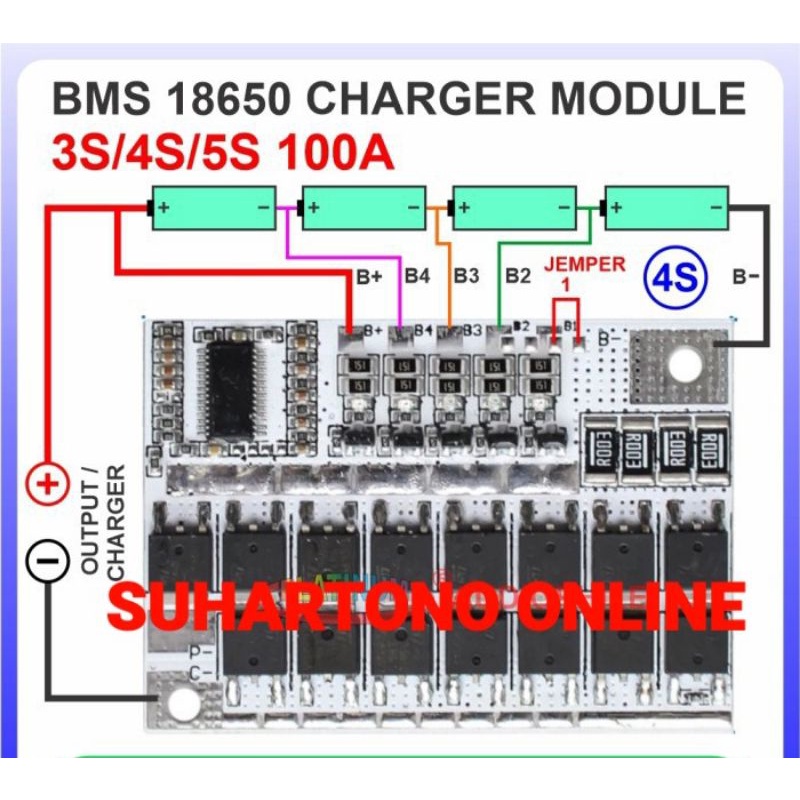

Dapat menyesuaikan berapa banyak baterai yang akan digunakan ( 3S/4S/5S)

Kinerja stabil,
Dukungan perlindungan pemutusan,
Perlindungan arus berlebih,
Perlindungan over discharge,
Perlindungan overcharge, dengan keseimbangan, dll.

Parameter:
Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Overcharge protect Current : 100A
Over-discharge protect Current : 100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA

Pengiriman dengan packing full free buble wrap

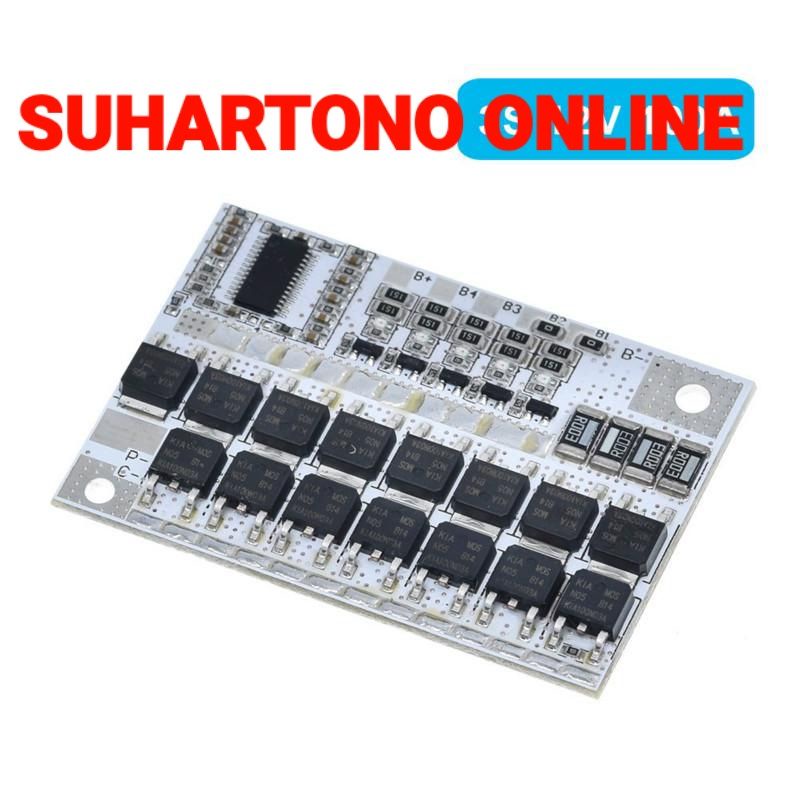

Gambar produk
