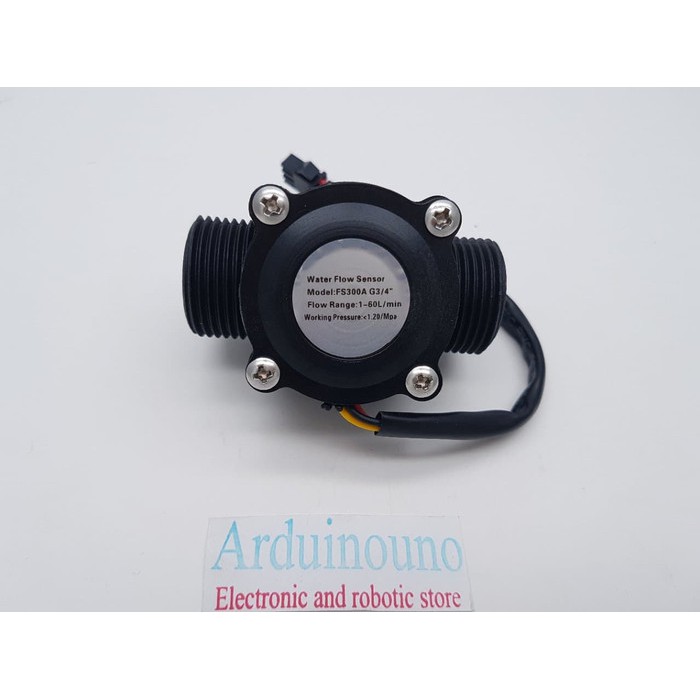

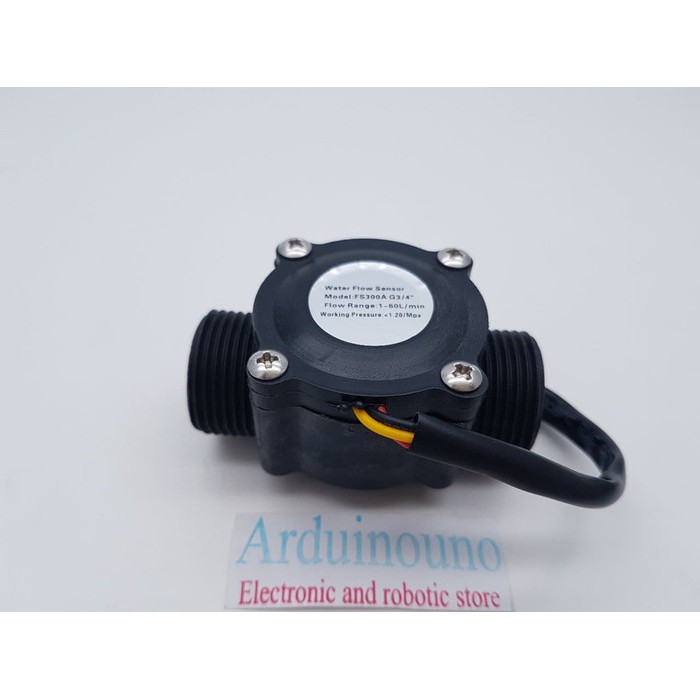

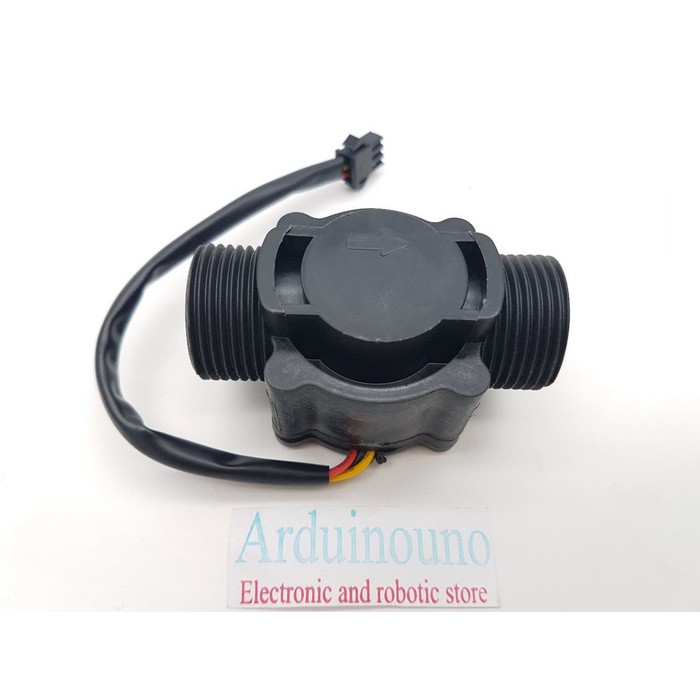

liquid Water flow sensor / counter 1-60L/min 3/4" 3/4 inch DC 3.5-24V

Detail liquid Water flow sensor / counter 1-60L/min 3/4" 3/4 inch DC 3.5-24V

Deskripsi Produk

Frequency: F = 5.5 * Q (L / Min) error: 2% voltage :3.5-24VDC, current can not exceed 10mA, stream End 330 liters of water output pulses

The calculation of frequency = constant 5.5 * the units flow (L / min) * time (seconds) flow range :1-60L / min

Output pulse duty cycle of 50 10%
Output rise time 0.04S
Output fall time 0.18S
Connection method:
1, Red IN Connect Positive
2,Yellow OUT Connect signal output
3, Black GND Connect Negative

Gambar produk
