LIQUID Water flow sensor 1/2" 1-30L / min transparent color TRANSPARAN

Detail LIQUID Water flow sensor 1/2" 1-30L / min transparent color TRANSPARAN

Deskripsi Produk

Lead the way:
1 red IN then positive
2 yellow OUT signal output line
3 black GND then negative
Frequency: F = 5 * Q (L / Min) -3 error: 2% voltage: 3.5-24VDC, current can not exceed 10mA, finished a liter of water stream output 300 pulses
That constant frequency calculation = 5 * Unit Flow (L / min) * Time (seconds) -3 (Revised - can be reduced to be diminished)
Flow range: 1-30L / min
Technical Parameters
Scope:
Suitable for water heaters, credit card machines, water vending machines, and other flow measurement devices!
1, the lowest rated voltage
DC4.5 5V-24V
2, the maximum operating current
15 mA (DC 5V)
3, the operating voltage range
DC 5 ~ 18 V
4, load capacity
10 mA (DC 5V)
5, temperature range
80 c
6. Operating humidity range
35% ~ 90% RH (no condensation state)
7, allowing pressure
The following pressure 1.75Mpa
8, storage temperature
-25 ~ + 80 c
9, storage humidity
25% ~ 95% RH

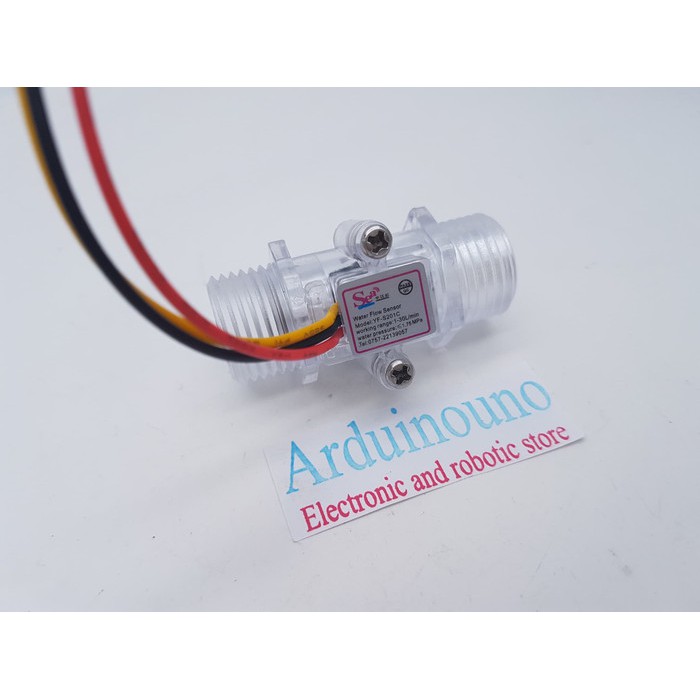

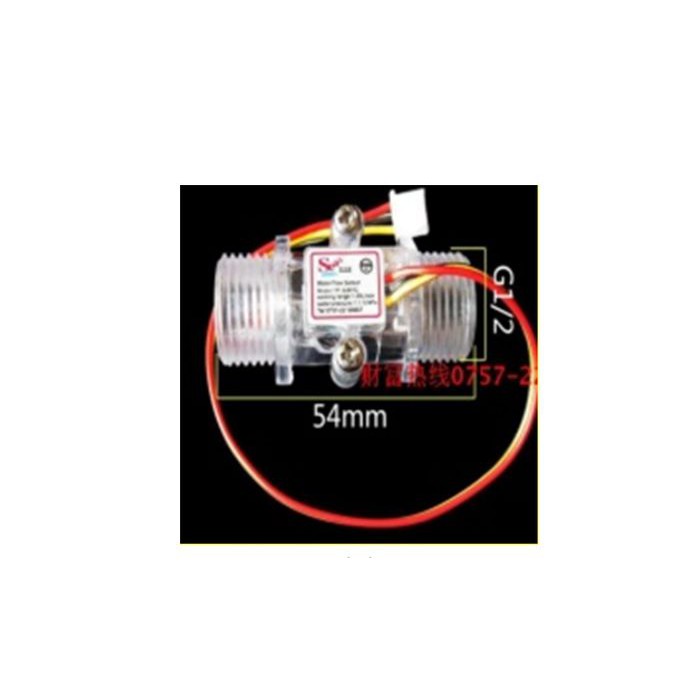

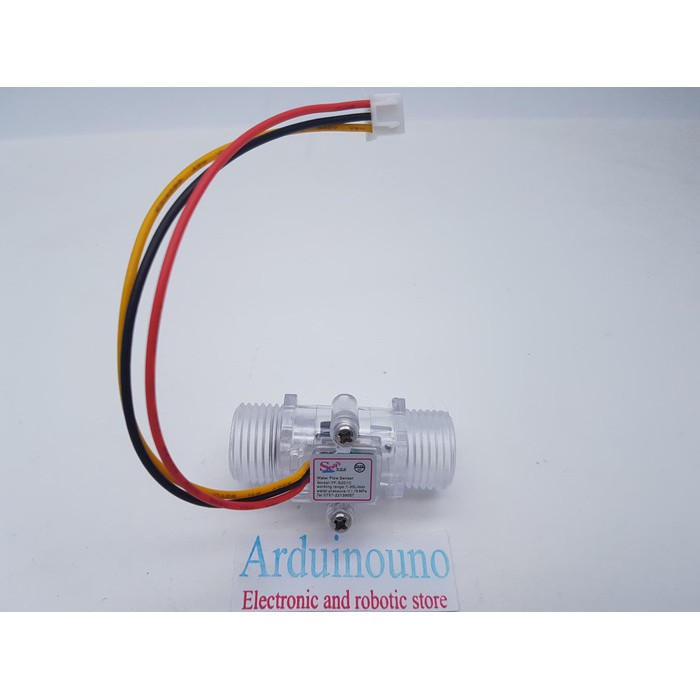

Gambar produk
