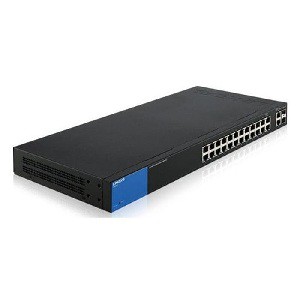

LINKSYS LGS326-AP 26-PORT BUSINESS GIGABIT SMART SWITCH

Detail LINKSYS LGS326-AP 26-PORT BUSINESS GIGABIT SMART SWITCH

Model Name:
LGS326
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3z
IEEE 802.3x
IEEE 802.3ad
IEEE 802.3az
IEEE 802.1d
IEEE 802.1Q/p
IEEE 802.1X
Memory:
128 MB
LEDs:
System (blue), Link/Act (green)
System Power Consumption without PoE+:
110V:17.62W
220V:17.72W
Forwarding Rate:
38.69 Mpps
Switching Capacity:
52 Gbps
Jumbo Frame (FE, GE):
9K
Dimensions (LxWxH):
440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
Weight:
2.424 kg (5.33 Ibs.)
Power Input:
100240V
50-60 Hz
(0.7A max)
Operating Temperature:
0 to 50C (32 to 122F)
Storage Temperature:
-40 to 70C (-40 to 158F)
Operating Humidity:
10 to 90% RH
Storage Humidity:
10 to 90% RH (non-condensing)
Spanning Tree:
IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree
Link Aggregation:
IEEE 802.3ad LACP, up to 4 groups with up to 8 ports per group
VLAN:
Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
Auto Voice VLAN:
VLAN Voice traffic is automatically assigned by OUI to a voice-specific VLAN and treated with appropriate levels
IGMP Snooping:
IGMP (v1/v2/v3) snooping provides for fast client joins and leaves of multicast streams and limits bandwidth-intensive video traffic to only the requestors; supports 256 multicast groups
HOL Blocking Prevention:
Head-of-line (HOL) blocking prevention
Port Mirroring:
Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
Security Features:
802.1x Radius authentication
DHCP snooping
IP-MAC binding
Port security supports limited dynamic lock and locked MAC address
Management access control
