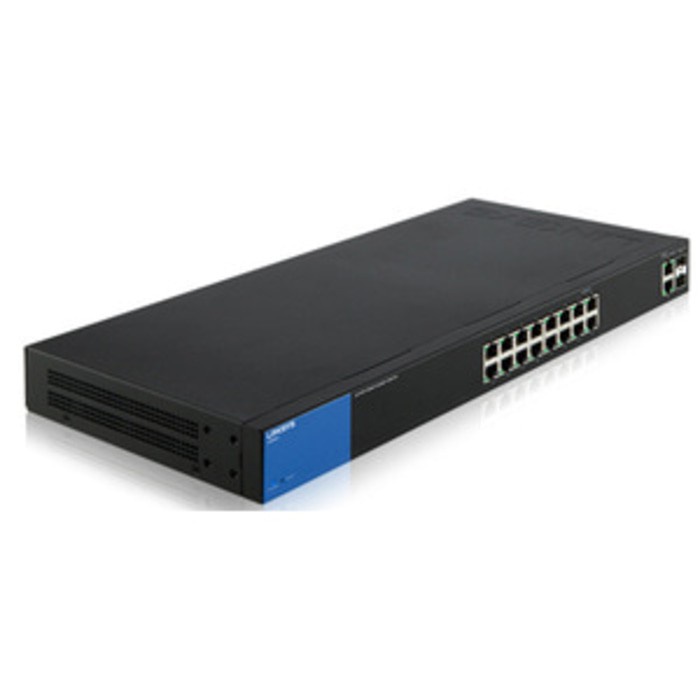

LINKSYS LGS318-AP 18-Port Business Gigabit Smart Switch

Detail LINKSYS LGS318-AP 18-Port Business Gigabit Smart Switch

- Proven Performance and Reliability
- Easy Configuration and Management
- Advanced Network Security
- IPv6 Support
- Enhanced QoS
- Enhanced Security
- Meets EEE (Energy Efficient Ethernet) 802.3az standard


- Security Features: 802.1x Radius authentication, DHCP snooping, IP-MAC binding, Port security supports limited dynamic lock and locked MAC address, Management access control
- Dimensions (LxWxH): 440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
- Power Input: 100240V, 50-60 Hz, (0.7A max)
- System Power Consumption without PoE+: 110V:13.55W, 220V:13.66W
- Weight: 2.378 kg (5.23 Ibs.)
- Operating Temperature: 0 to 50C (32 to 122F)
- Operating Humidity: 10 to 90% RH
- LEDs: System (blue), Link/Act (green)
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1d, IEEE 802.1Q/p, IEEE 802.1X
- Management Interface: HTTP, HTTPS
- SNMP: Version 1, Version 2c
- Firmware Upgrade: Web Browser (HTTP/HTTPS), TFTP
- Model Name: LGS318
- Storage Temperature: -40 to 70C (-40 to 158F)
- Mac Addresses: 8K
- Storage Humidity: 10 to 90% RH (non-condensing)
- Total System Ports: 18GE
- Copper FE/GE Ports (RJ45): g01g08, g09g16
- Combo Ports (RJ45 + SFP): 2 combo on ports g17, g18
- CPU Memory DRAM: 128 MB
- Green Power Mode: EEE+, Short Reach + Energy Detect
- Forwarding Rate: 26.79 Mpps
- Switching Capacity: 36 Gbps
- Jumbo Frame (FE, GE): 9K
- VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
- HOL Blocking Prevention: Head-of-line (HOL) blocking prevention
- Port Mirroring: Traffic on multiple ports (up to four ports) can be mirrored to another port for analysis with a network analyzer
- RMON: Embedded remote monitor
