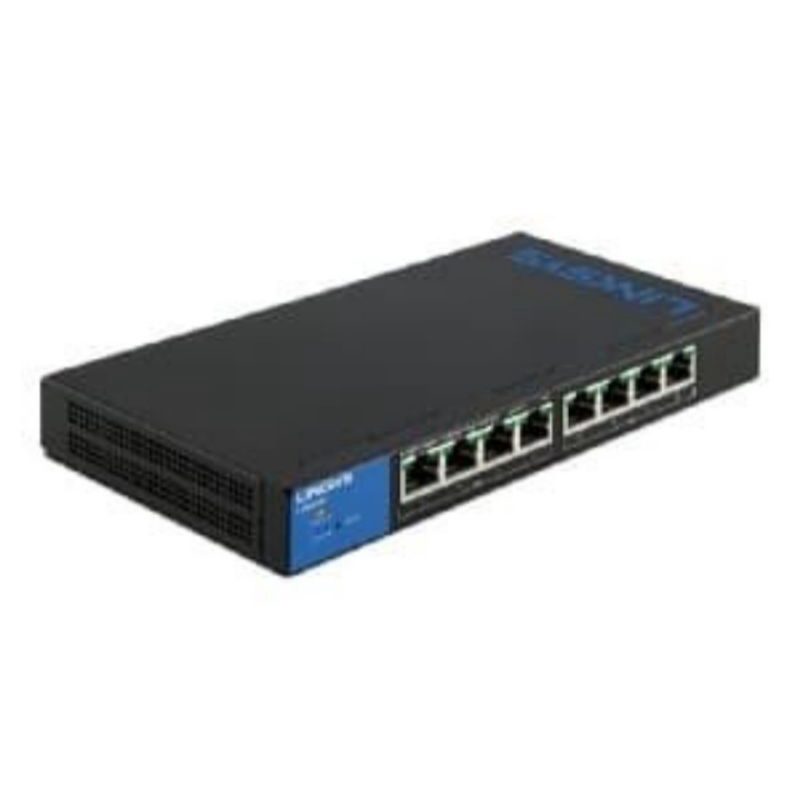

LINKSYS LGS308P-AP - Smart Switch Gigabit Bussiness 8Port PoE+

Detail LINKSYS LGS308P-AP - Smart Switch Gigabit Bussiness 8Port PoE+

Integrated Power Over Ethernet Plus
- Easy Configuration and Management
- Advanced Network Security
- Advanced QoS
- Meets EEE (Energy Efficient Ethernet) 802.3az standard


- Security Features: 802.1x Radius authentication, DHCP snooping, IP-MAC binding, Port security supports limited dynamic lock and locked MAC address, Management access control
- Dimensions (LxWxH): 210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
- Power Input: 100240V, 50-60 Hz, (1.5A max)
- System Power Consumption without PoE+: 110V:9.95W, 220V:10.17W
- Weight: 0.562 kg (1.23 Ibs.)
- Operating Temperature: 0 to 50C (32 to 122F)
- Operating Humidity: 10 to 90% RH
- LEDs: System (blue), Link/Act/PoE (green/green)
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3af, IEEE 802.3at, IEEE 802.1d, IEEE 802.1q/p, IEEE 802.1X
- Management Interface: HTTP, HTTPS
- SNMP: Version 1, Version 2c
- Firmware Upgrade: Web Browser (HTTP/HTTPS), TFTP
- Model Name: LGS308P
- Storage Temperature: -40 to 70C (-40 to 158F)
- Storage Humidity: 10 to 90% RH (non-condensing)
- Number of VLANs Supported: 128 active VLANs (4,096 range)
- Total System Ports: 8GE
- Copper FE/GE Ports (RJ45): g1g8
- CPU Memory DRAM: 128 MB
- Power Dedicated to PoE+: 72W
- Number of Ports with PoE+ Support: 8
- Green Power Mode: EEE+, Short Reach + Energy Detect
- Forwarding Rate: 11.90 Mpps
- Switching Capacity: 16 Gbps
- MAC Address Table Size: 8K
- Jumbo Frame (FE, GE): 9K
- VLAN: Port-based and 802.1q tag-based VLANs, Management VLAN, Guest VLAN support, Dynamic VLAN assignment via Radius server with 802.1x client authentication
- HOL Blocking Prevention: Head of line (HOL) blocking prevention
- Port Mirroring: Traffic on multiple ports can be mirrored to another port for analysis wi
