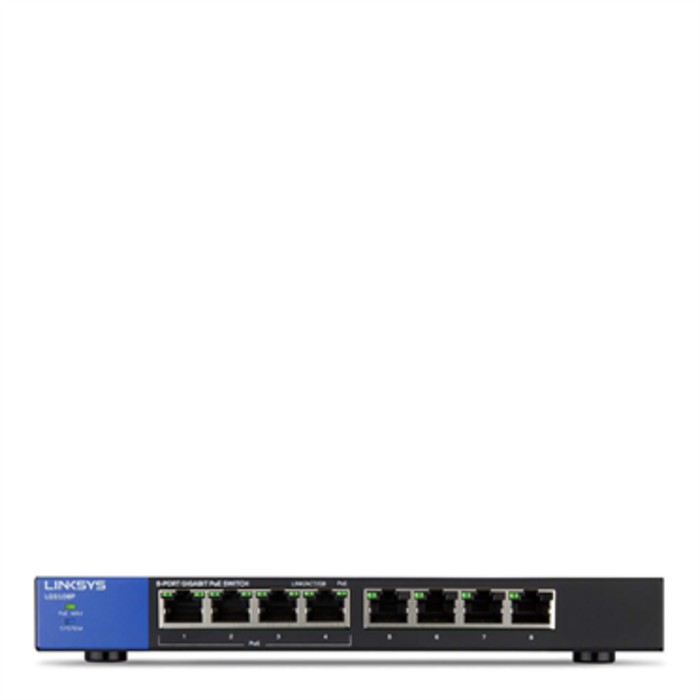

Linksys LGS108P 8-Port Business Desktop Gigabit PoE+ Switch

Detail Linksys LGS108P 8-Port Business Desktop Gigabit PoE+ Switch

Technical Specs

Model Name:
LGS108P
Network Standards:
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3ab
IEEE 802.3az
IEEE 802.3af
IEEE 802.3at (PoE+)
Ports:
8-port switch with 4 PoE+ ports (first 14 ports) and dedicated PoE power budget of 50 W
LEDs:
Link, speed, activity, and PoE indicators
Performance:
Full line rate and forwarding rate of 64B frame at:
1.488 Mpps for 1000M port
0.1488 Mpps for 100M port
0.01488 Mpps for 10M port
MAC Address Table Size:
8,000 entries
Bandwidth:
16 Gbps (non-blocking)
Fans:
None
Minimum System Requirements:
Connected devices need Ethernet connectivity and Ethernet cables
Dimensions (LxWxH):
210 x 104 x 25 mm (8.3 x 4.1 x 1.0 in.)
Weight:
0.556 kg (1.23 lbs)
Power:
54 VDC, 1.2 A
Power Consumption:
3.83 W / 7.0 W

Power Saving:
Cable connected detection, sleep mode
Power Supply:
External
Operating Temperature:
050C (32122F)
Storage Temperature:
-4070C (-40158F)
Operating Humidity:
1090% (non-condensing)
Storage Humidity:
1090% (non-condensing)
Mounting:
Wall
Quality Of Service:
802.1p and DSCP
Regulatory Compliance:
FCC Class A, CE
Warranty and Support:
Limited Lifetime
