LIMIT SWITCH V-155-1C25 V1551C25 MOTOR WITH ROLLER

Detail LIMIT SWITCH V-155-1C25 V1551C25 MOTOR WITH ROLLER

SEN-0113
========

Deskripsi:
===================
Limit switch ini Umum dipakai di industri kegunaannya sebagai saklar atau
switch:))

Yuk di order sebelum kehabisan:))

Spesifikasi:
===================
3 pin (NO/NC/COM)
Contact Material: Silver
Housing Material: Thermoset
Mechanical Life: 50 Mcycles
Contact Current Rating: 15 A
Current Rating: 10 A
Differential Travel: 635 µm
Electrical Life: 100 kcycles
Max Operating Temperature: 80 °C
Max Voltage Rating (AC): 250 V
Max Voltage Rating (DC): 250 V
Min Operating Temperature: -25 °C
Operating Force: 2.35 N
Operating Position: 20.701 mm
Orientation: Straight
Overtravel: 762 µm
Pretravel: 1.6002 mm
Switch Function: On-Mom
Termination: Quick Connect
Throw Configuration: SPDT
Voltage Rating (AC): 250 V
Voltage Rating (DC): 30 V

Paket:
===================
1 x LIMIT SWITCH V-155-1C25 V1551C25 MOTOR WITH ROLLER

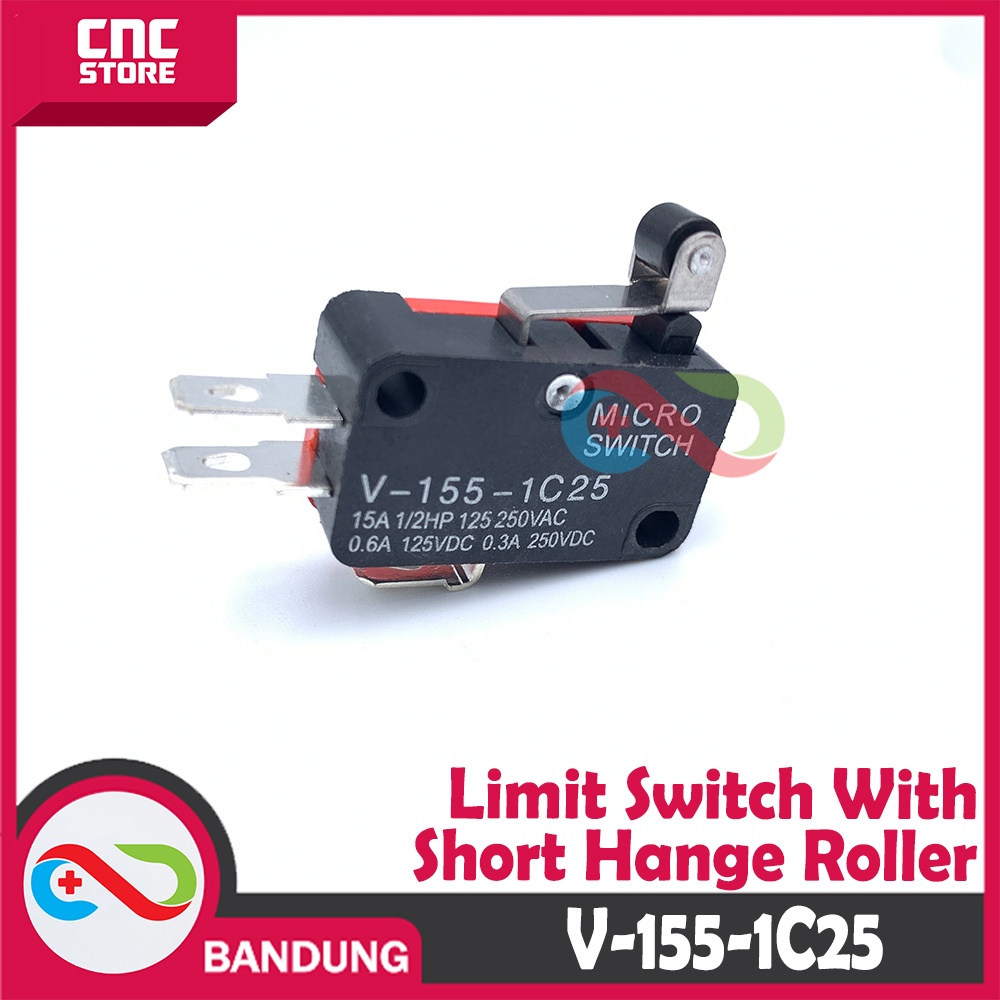

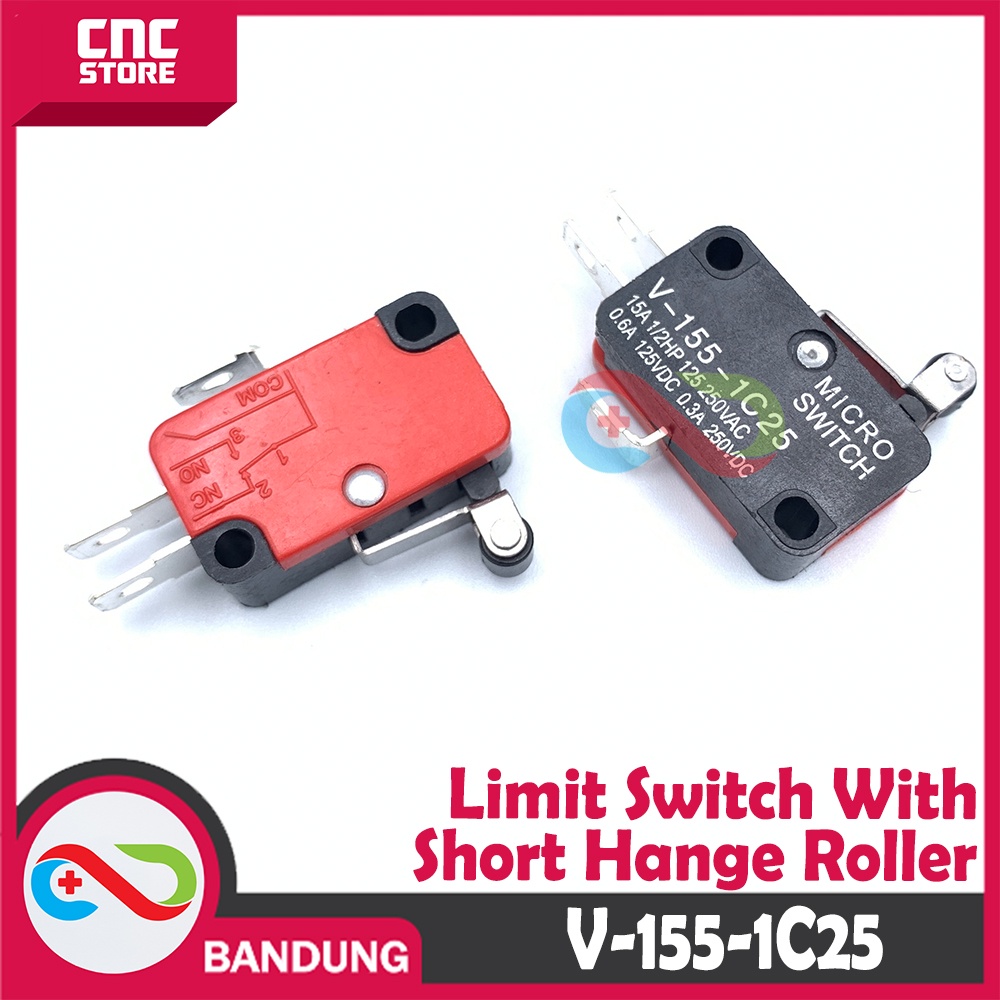

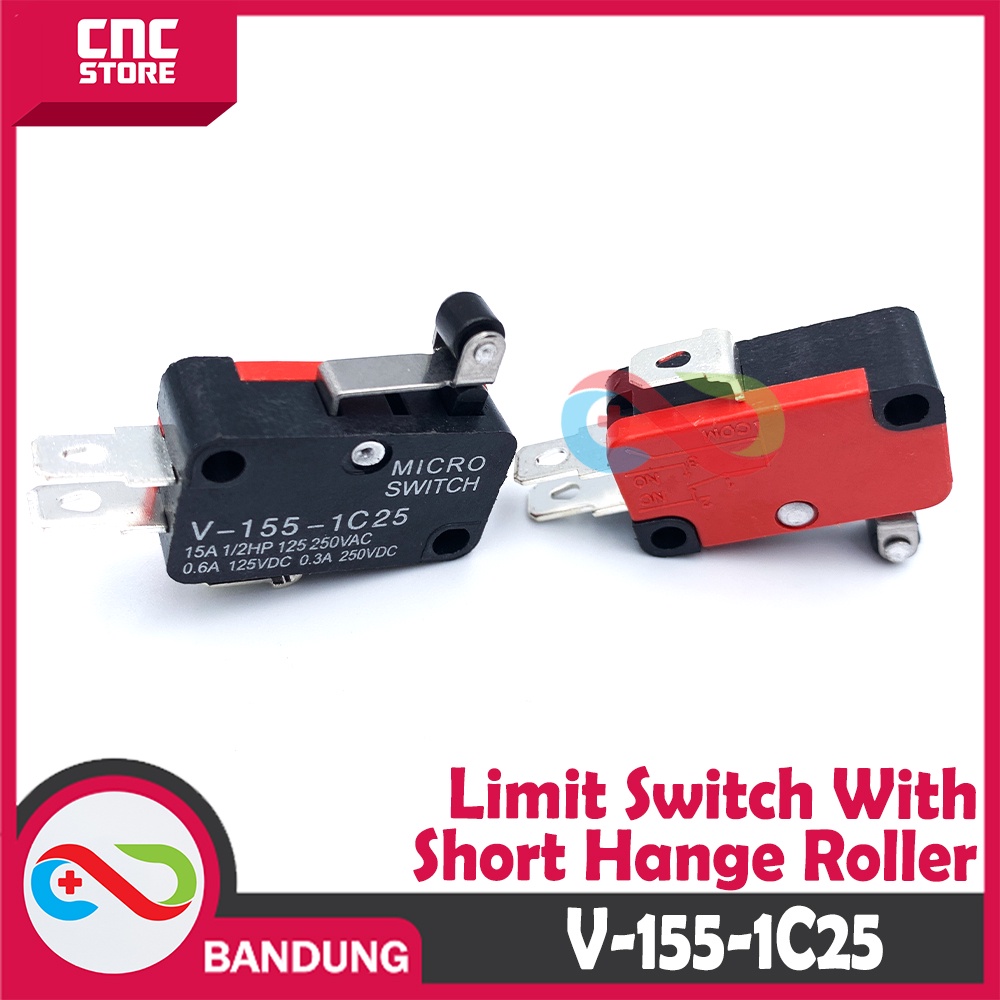

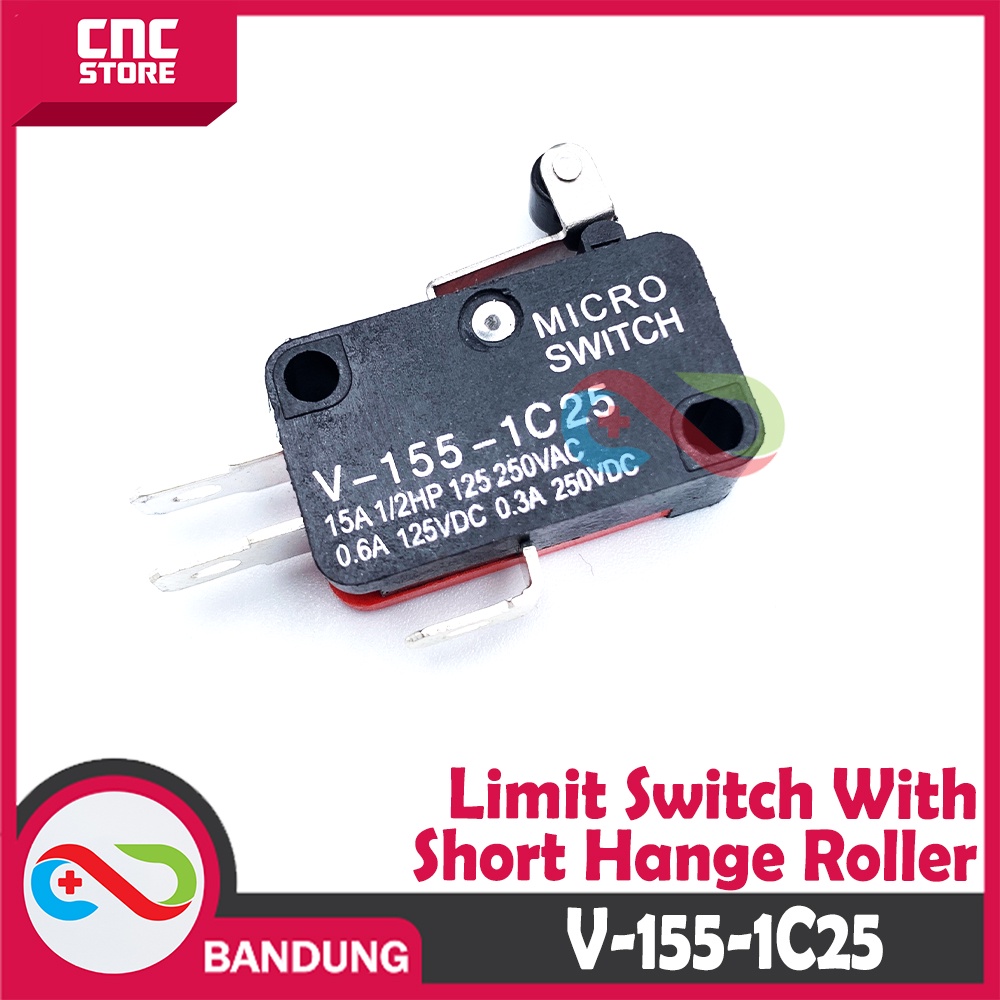

Gambar produk
