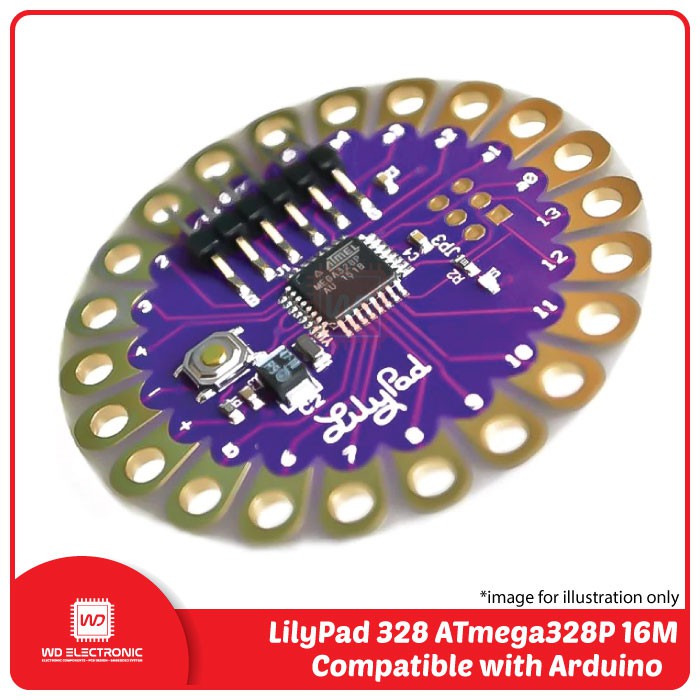

Detail LilyPad 328 Main Board ATmega328P 16MHz For Arduino

The Lilypad Audriono ATMega328P 16M HW-1 Board is a compatible Arduino-program micro-controller is designe to be easily integrat into e-textiles and wearable projects. It offers the same functionality you find in other Arduino boards, in a lightweight, round package design to minimize snagging and profile. With wide tabs that can be sewn down and connect with conductive thread.

Spesifications :
- Microcontroller: ATmega168 or ATmega328V
- Operating Voltage: 2.7-5.5 V
- Digital I/O Pins: 14
- PWM Channels: 6
- Analog Input Channels: 6
- DC Current per I/O Pin: 40 mA
- Board will run from 2V to 5V.
- The latest version of the LilyPad supports automatic reset for even easier programming.
- The back side of the LilyPad is now completely flat!

Package :
- 1x LilyPad 328 Main Board ATmega328P 16M For Arduino



***
