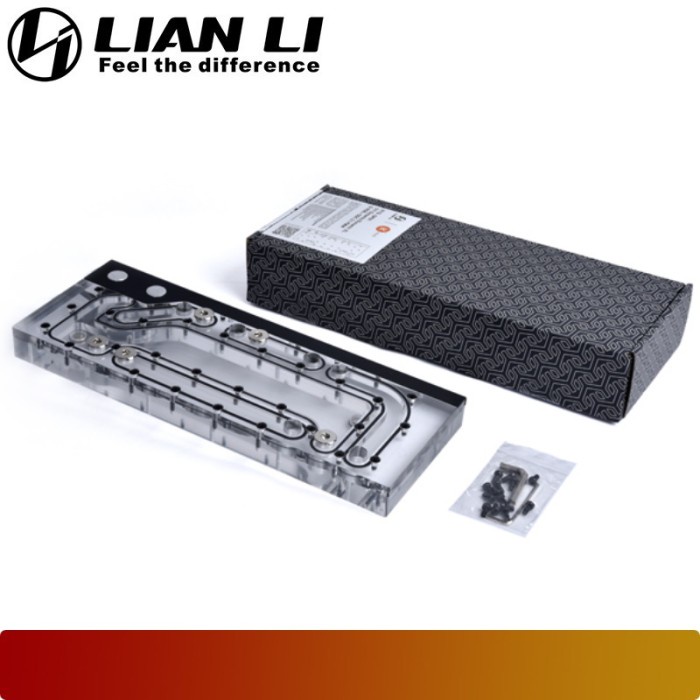

LIAN LI O11D DISTRO-PLATE G1 WITH DDC 3.1 PUMP

Detail LIAN LI O11D DISTRO-PLATE G1 WITH DDC 3.1 PUMP

- SPECIFICATIONS
MODEL : LIAN LI O11D DISTRO-PLATE G1 DESIGNED BY EKWB WITH DDC 3.1 PUMP
DIMENSIONS : (L) 345 x (W) 131 x (H) 29 mm
MATERIAL : ACRYLIC (BODY)
: PPS-GF30, EPDM O-RINGS, ALUMINUM OXIDE, GRAPHITE (PUMP)
COMPATIBILITY : O11D, O11D XL
ADDRESSABLE RGB LED STRIP : 1 (LED COUNT 18
LED POWER CONSUMPTION : 0,3A 5V
CPU BLOCK SUPPORT : 1 CPU block
GPU BLOCK SUPPORT : UP TO 2 GPU BLOCKS IN SLOT 1 OR SLOT 2
RADIATOR SUPPORT : UP TO 2 X 120/240/360MM RADIATORS UP TO 60MM IN THICKNESS
PORT THREAD TYPE : G1/4
MOUNTING HOLE SIZE : M4 (MOUNTING HARDWARE IS INCLUDED)

- PUMP ELECTRICAL & MECHANICAL PROPERTIES
MOTOR : ELECTRONICALLY COMMUTED MOTOR
RATED VOLTAGE : 12V DC
POWER CONSUMPTION : 6W
MAXIMUM PRESSURE HEAD : 2.6M<
MAXIMUM FLOW : 500 L/H
MAXIMUM AMBIENT TEMPERATURE : 10-50°C
MAXIMUM FLUID TEMPERATURE : 10-60°C
POWER CONNECTOR : 4PIN PWM FAN CONNECTOR
CABLE LENTH : 50CM

- TECHNICAL DATA
RESERVOIR DIAMETER : 60mm
OVERALL HEIGHT : 121mm incl. pump
MOUNTING HOLE PATTERN 50x50mm

- OPERATIONAL REGIME
PWM DUTY CYCLE : ~ 20-100%
DEFULT BEHAVIOR : Runs at 100% duty cycle when no PWM feedback signal is present.
