Detail Li-ion Lithium Battery 18650 5S 15A Charger PCB BMS 18.5V Cell Protect

Features:
This board is 5 string 3.7V/4.2V lithium battery protection board.
High current protection board, continuous 15A current.
Protection board with overcharge protection, over-discharge protection, over-current protection, short circuit protection.

PCB board size: 88*17*3 (MM)

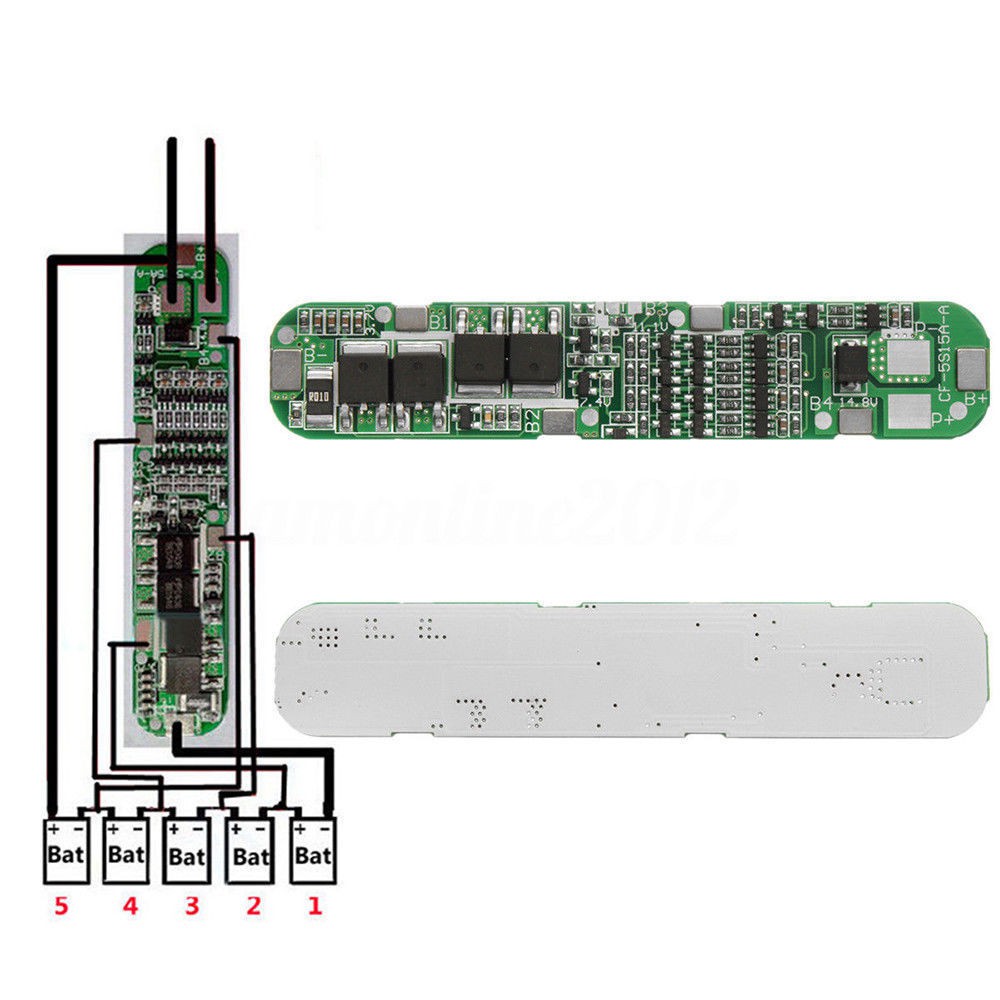

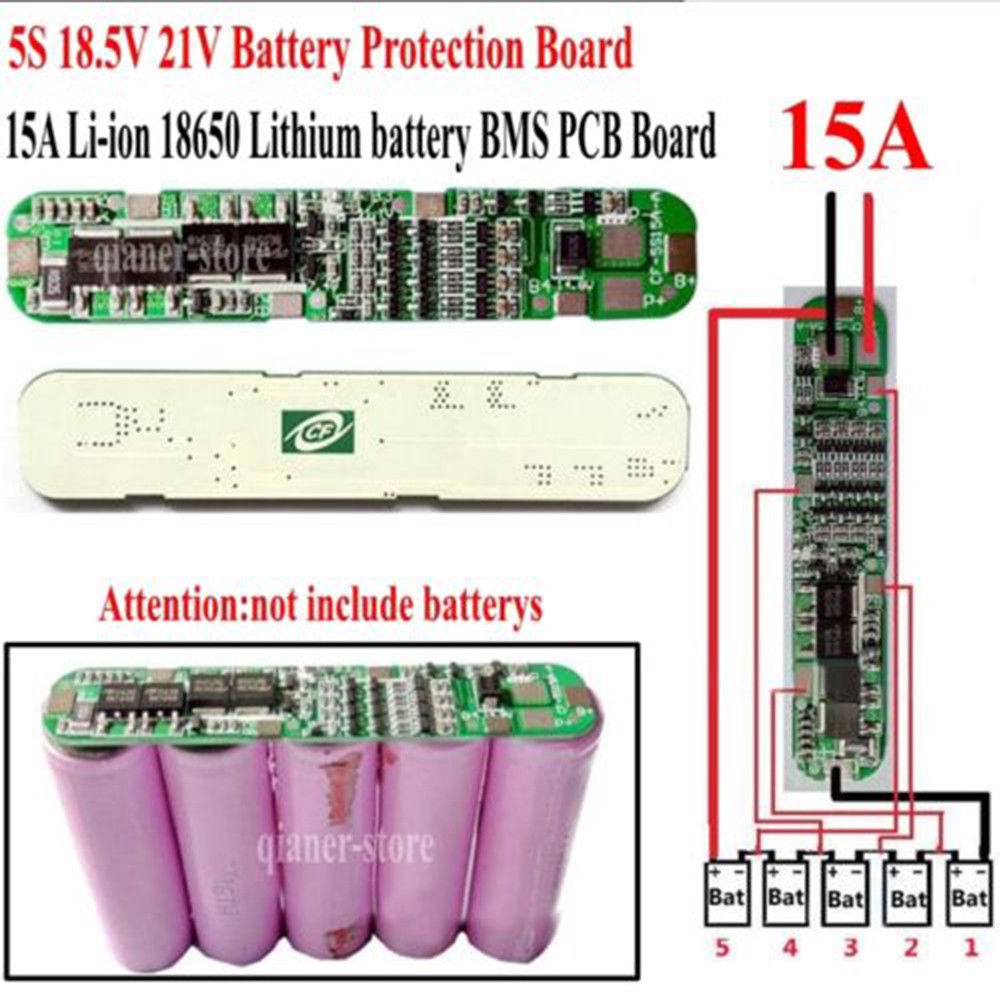

Connection description:
P+ P- is the abbreviation of PACK+ PACK-, that is, the output of positive and negative poles;
B+ B- is the abbreviation of BATTERY. which is the positive and negative pole of the battery.

Note: this item can't fit for driller .

Package Included:
1 x 5S Lithium 18650 Battery BMS Packs PCB Protection Board
