Detail LED Driver Adaptor Switching Power Supply Lampu Strip Panel Downlight

Led driver ini di pakai pada ceiling led model downlight, Contoh LED driver Ukuran 12-15W dipasang pada lampu LED ukuran 12 watt s/d 15 watt ( maksimal ).
Keterangan : apabila di pasang di bawah 12 watt dan di atas 15 watt maka lampu led akan kedip2 ( tidak cocok ) jadi disesuaikan yah untuk pembelian led divernya sesuai kapasitas Watt lampu LED.

Kabel output : warna merah untuk ke lampu led ( + DC ) dan kabel hitam ( DC ).
Kabel input : 2 kabel putih ke listrik 220v AC.

Features:
* Electrolytic capacitor
* High efficiency transformer
* Long working life
* Energy Saving
* Constant current IC
* Avoid flickering
* Overvoltage protection
* Pure copper wire
* Comes with connection cables, easy to install.
* This LED driver can be applied to down lamp, ceiling lamp, panel light etc.
* With short circuit protection, over voltage protection, over current protection,over temperature protection.
* With high quality and durable performance.

Spesifikasi :

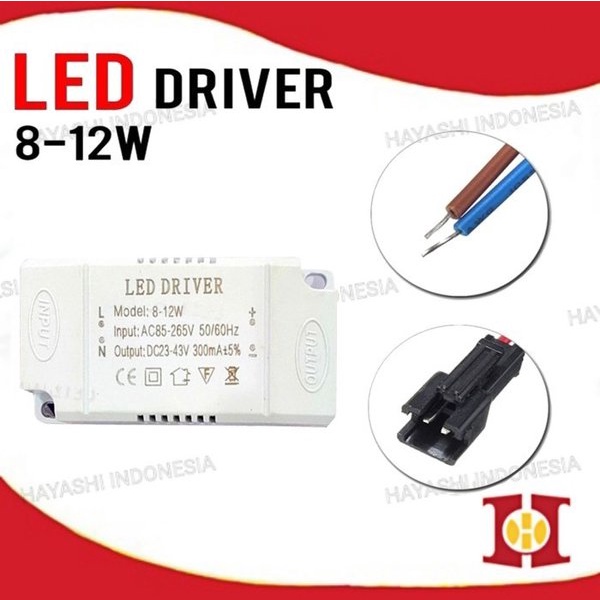

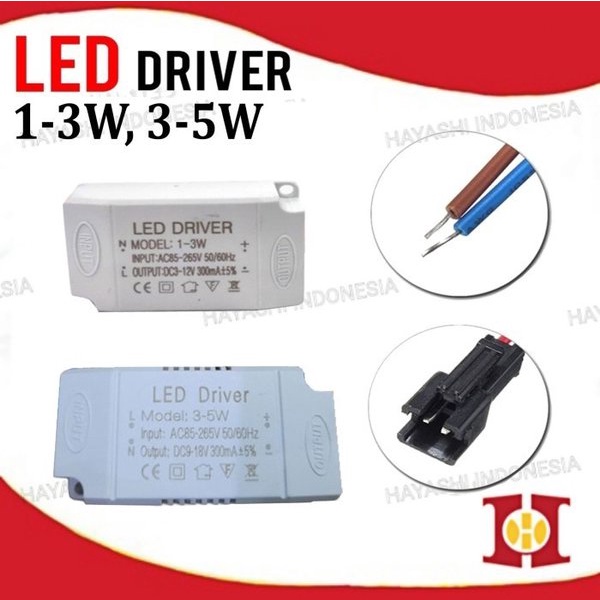

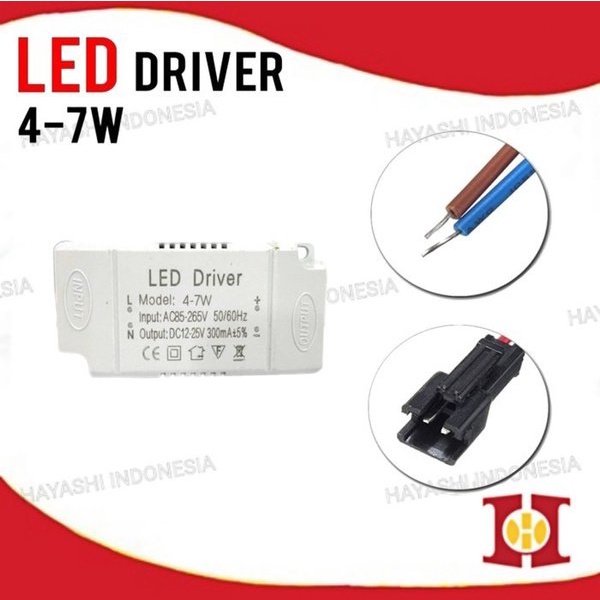

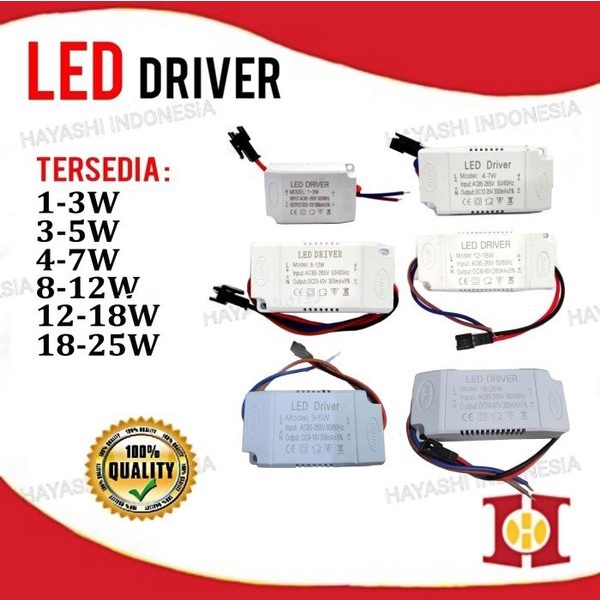

* Power: 1-3W / 3-5W / 4-7W / 8-12W / 12-18W / 18-25W
* Input voltage: AC 85-265V / 50-60Hz
* Output voltage: DC 3-65V (Dari LED Driver 1-3W sampai 12-18W)
* Current: 290-300mA (Dari LED Driver 1-3W sampai 12-18W)
* Housing: safety plastic housing

Note :
Untuk Varian 18-25 Watt konektor ada 2 warna yaitu hitam dan putih dan akan dikirim random yah sesuai dengan stok yang ada di kami.

Applicable to LED decorative lighting, building lighting, lighting, LED display, etc.
Suitable for LED lights, ceiling light and other indoor lights, projects etc.
