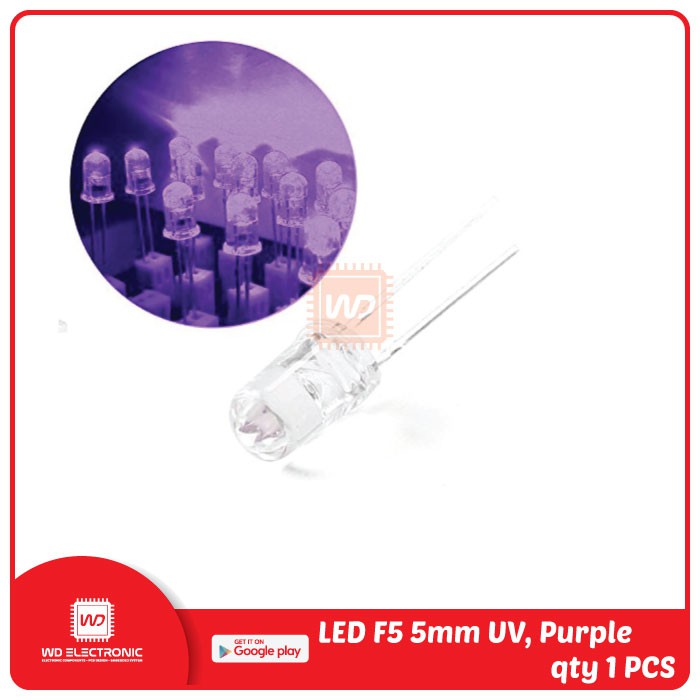

Detail LED 5mm 5 mm UV Ultra violet LED 3mm 3 mm Ungu Purple

Hi #RekanEasyWare ...
- EasyWare Part# [3mm]: EP001553
- EasyWare Part# [5mm]: EP001554

*** Silahkan antum pilih ukuran LED yang diinginkan, dan harga tersebut untuk jumlah 1 PCS ***

Spesifications :
- Emitted Colour : UV (Purple)
- Size (mm) : 5mm / 3mm
- Lens Colour : Water Clear
- Peak Wave Length (nm) : 395~400
- Forward Voltage (V) : 3.2 ~ 3.8
- Reverse Current (uA) : <=30
- Luminous Intensity Typ Iv (mcd) : Average in 2000
- Life Rating : 100,000 Hours
- Viewing Angle : 120 ~ 140 Degree
- Absolute Maximum Ratings (Ta=25°C)
- Max Power Dissipation : 80mw
- Max Continuous Forward Current : 30mA
- Max Peak Forward Current : 75mA
- Reverse Voltage : 5~6V
- Lead Soldering Temperature : 240°C (<5Sec)
- Operating Temperature Range : -25°C ~ +85°C

Package :
- 1x 5mm / 3mm Straw Hat UV Purple Light Wide Angle Ultraviolet
