LDR SENSOR CAHAYA MODULE LDR LIGHT SENSOR MODULE
Deskripsi singkat
Elektronik > Elektronik Lainnya > LDR SENSOR CAHAYA MODULE LDR LIGHT SENSOR MODULE
- Pengiriman Ekspres
- Barang yang diperiksa
- Bayar di tempat berlaku
- Kualitas, Prestise
- Pengembalian produk
- Dukung pembuatan faktur
Produk Terkait
Detail LDR SENSOR CAHAYA MODULE LDR LIGHT SENSOR MODULE
Hi #RekanEasyWare ...EasyWare Part#: EP001014

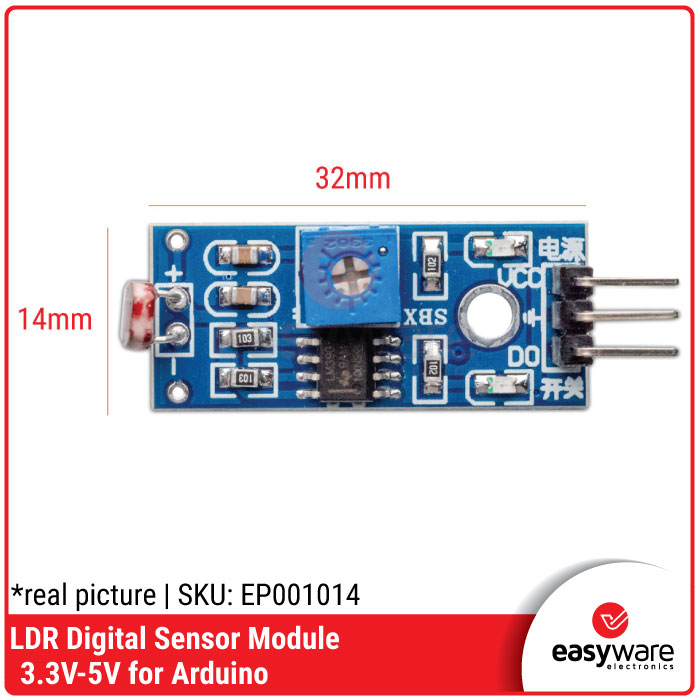

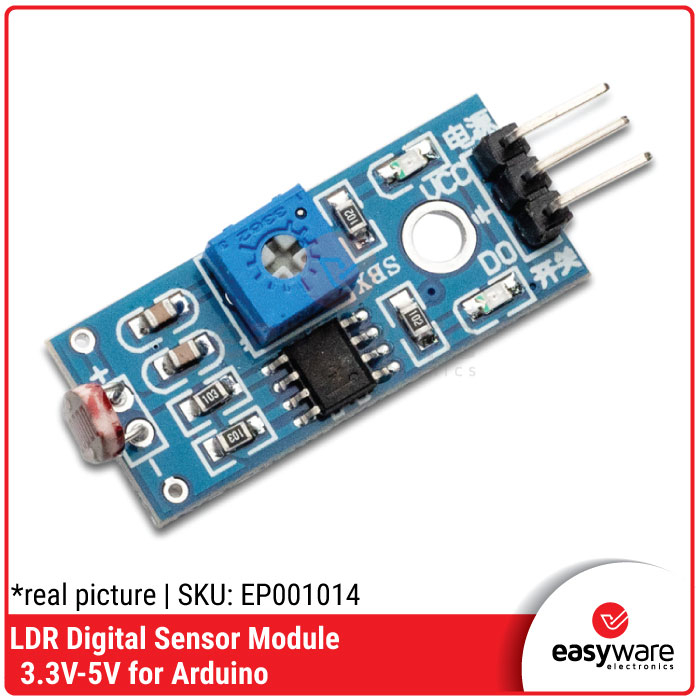

LDR sensor module is used to detect the intensity of light. It is associated with both analog output pin and digital output pin labelled as AO and DO respectively on the board. When there is light, the resistance of LDR will become low according to the intensity of light. The greater the intensity of light, the lower the resistance of LDR. The sensor has a potentiometer knob that can be adjusted to change the sensitivity of LDR towards light.
FITUR :
* Datang dengan Mounting Hole Screw
* Mudah dipasang
* Indikator untuk keluaran sinyal
* Module LDR 4 Pin
* Mendeteksi kecerahan sekitar dan intensitas cahaya
* Sensitivitas yang dapat disesuaikan
* Output: DO digital switch output (0 and 1), AO analog voltage output Compatible with Arduino, Raspberry, and other microcontroller board
SPESIFIKASI :
* IC Chip : LM393
* Input Voltage (V) : 3.3 to 5
KELENGKAPAN :
* 1pcs LDR Module LM393 Photosensitive
Gambar produk
