Detail LDR GL5516 Light Dependent Resistor Peka Cahaya Sensor GL 5516 5mm

Description:
100% brand new and high quality
Photosensitive resistance is the resistance of a semiconductor material, the conductivity change with light intensity varies.
The use of this feature will work made of different shapes and light-receiving area of the photosensitive resistance.
Photoresistor is widely used in toys, lamps, cameras and other industries.
Specification:
Material: metal +CdS
Color: as pic shows
Size: single approx. 0.20*0.16*1.42inch/0.5*0.4*3.6cm
Model: GL5528
Bright resistance (10Lux) (KΩ): 10-20
Dark resistance (MΩ): 1100λ10:0.6
Maximum voltage (V-DC): 150
Maximum power dissipation (MW): 100
Ambient temperature (°C): -30 ~ +70
Spectral peak (nm): 540
Response time (MS): Rise: 20 fall: 30
Illumination resistance characteristics: 3

Gambar produk

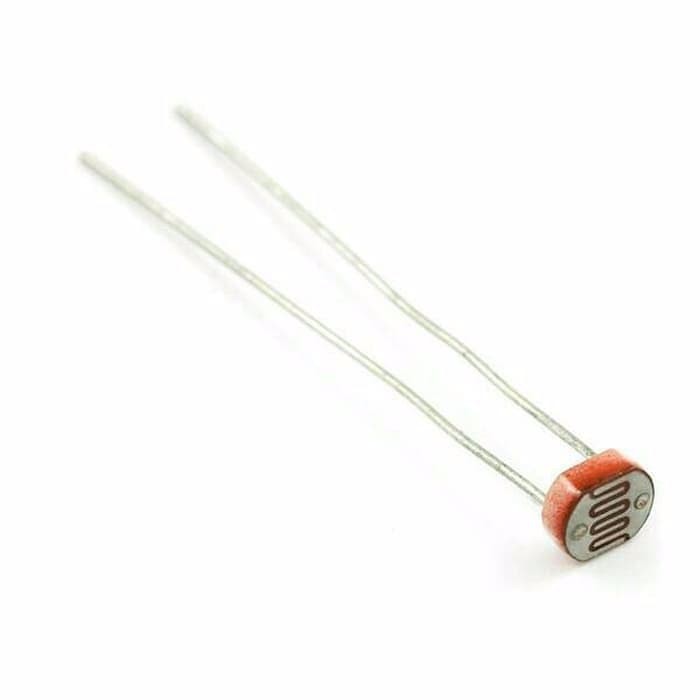

LDR GL5516 Light Dependent Resistor Peka Cahaya Sensor GL 5516 5mm
