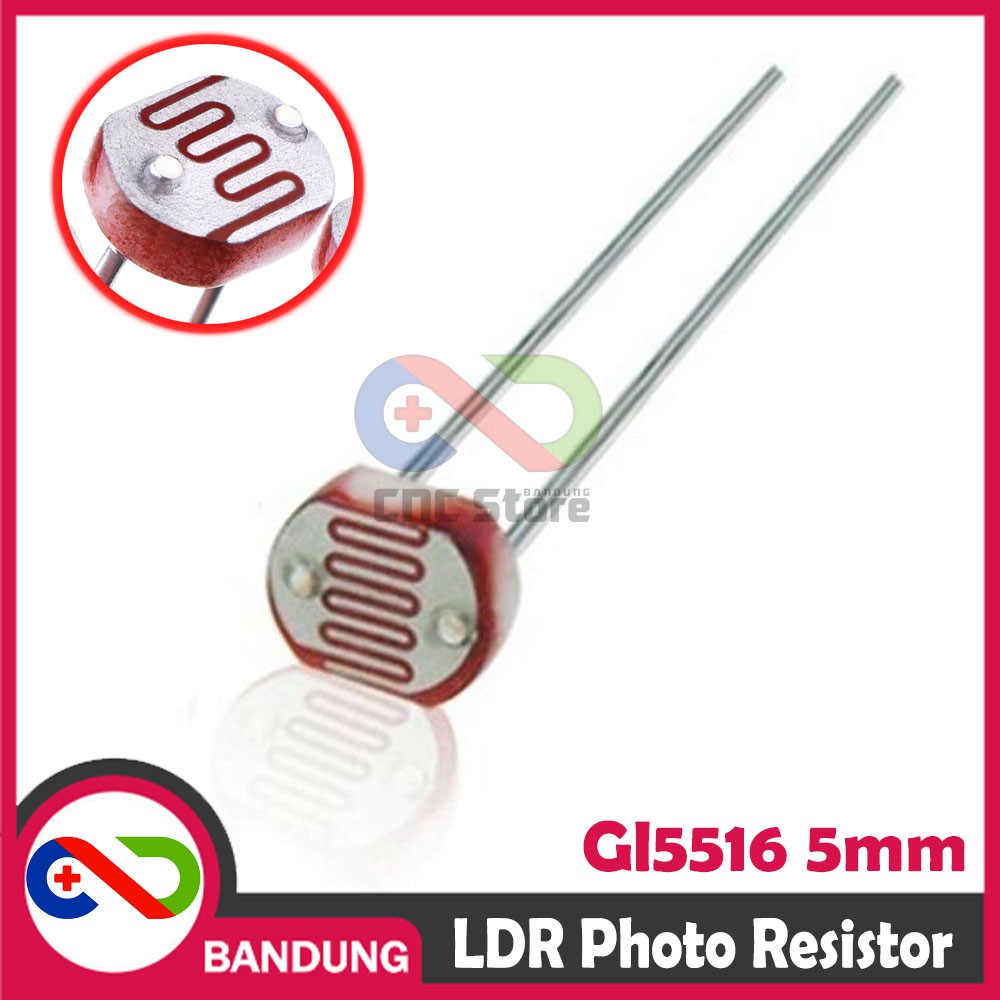

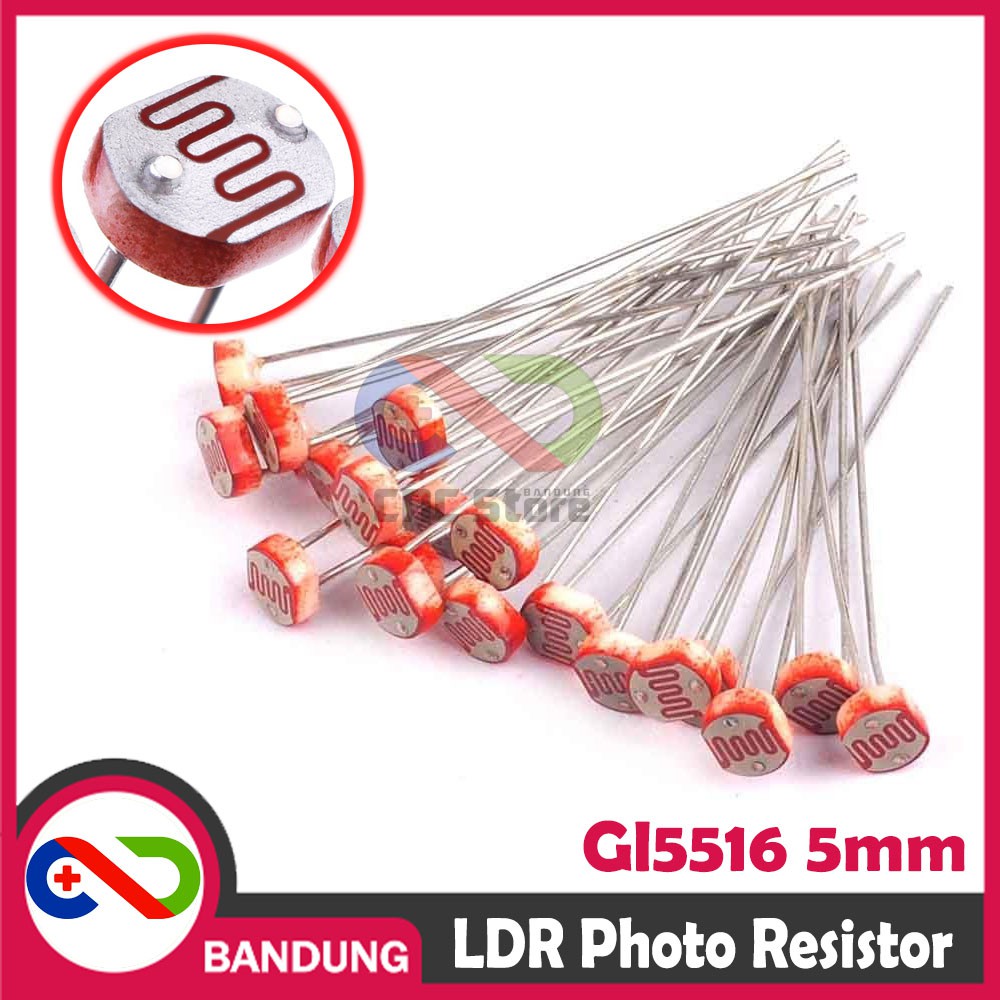

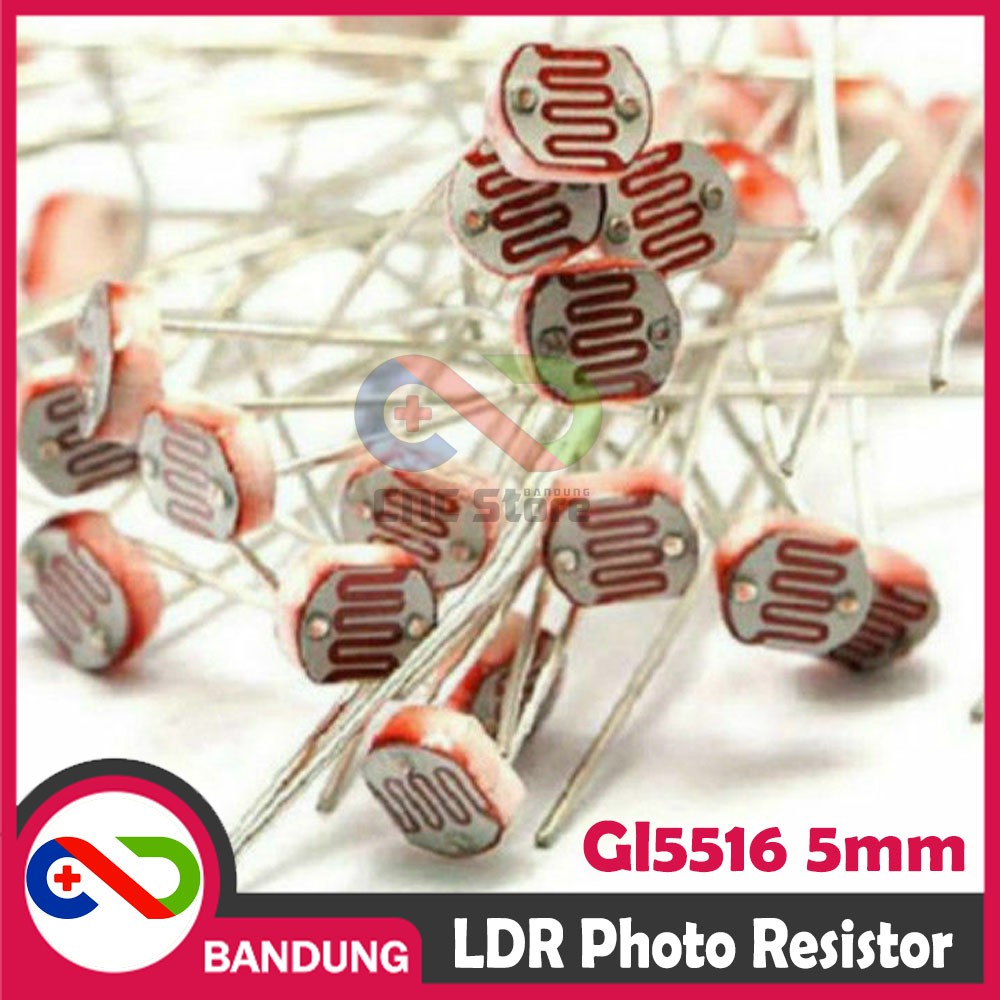

LDR GL5516 5MM PHOTORESISTOR PHOTO RESISTOR GL 5516

Detail LDR GL5516 5MM PHOTORESISTOR PHOTO RESISTOR GL 5516

PAS-0016
========

Deskripsi:
=================================
LDR, photosensitive resistor berdiameter 5mm ini resistansinya berubah ketika ada perubahan intensitas cahaya. Ketika kondisi gelap, resistansinya besar hingga 0.5MOhm tetapi ketika kondisi terang, resistansinya mengecil menjadi 5-10kOhm. Perubahan resistansi ini bisa agan pake sebagai input analog di arduino agan.

So, smri di ORDER gan !!!! :D

Specification:
=================================
- Model: GL5516
- Maximum voltage: 150V, DC
- Maximum wattage: 90mW
- Diameter : 5mm
- Operating temperature: -30C ~ 70C
- Spectral peak: 540nm
- Bright resistance (10Lux) : 5-10KOhm
- Dark resistance: 0.5 M
- Response time: 20ms (Rise), 30ms (Down)
- Resistance illumination: 2

Features:
=================================
- Epoxy Encapsulated
- Smali Size
- Quick Response
- Reliable Performance
- High Sensitivity
- Good Characteristic of Spectrum

Applications:
=================================
- Auto Flash For Cameras
- Room Light Control
- Photolamp
- Industrial control
- Photoelectric Control
- Annunciator
- Photoswitch
- Electronic Toys

Paket :
=================================
- 1x LDR GL5516 5MM PHOTORESISTOR PHOTO RESISTOR GL 5516
terima kasih

UNTUK HARGA GROSIR CHAT US ^^

Gambar produk
