Detail LDR 5mm GL5516 LDR GL5528 LDR Photo Resistors for Arduino
Hi #RekanEasyWare ...EasyWare Part#: - 5516: EP000474 ; - 5528: EP000475
*** Silahkan antum pilih varian untuk resistansi ldr tersebut, terdapat dua pilihan. Terima kasih ***

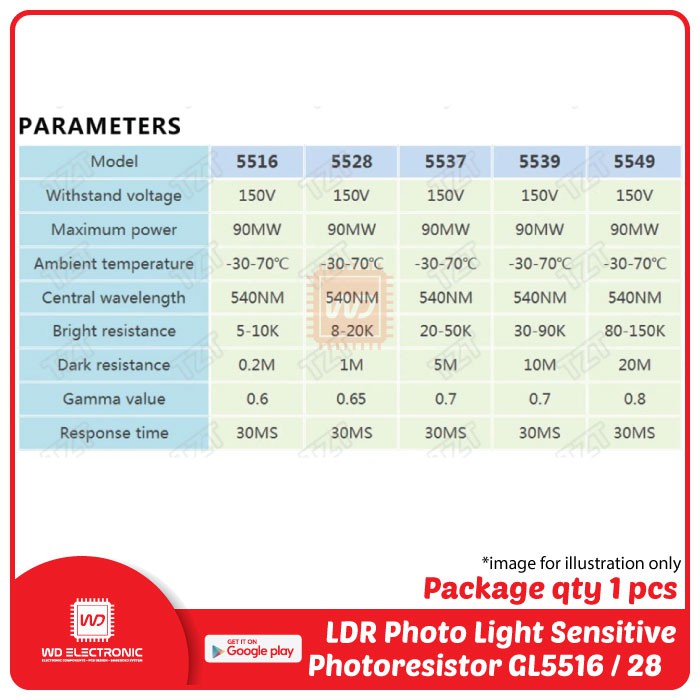

Spesifications for GL5516 :
- Maximum voltage (vdc): 150
- Maximum power consumption (mw): 100
- Ambient temperature (°C): 25
- Spectral peak (nm): 540
- Bright resistance (10lux) (thousand ohms): 5-10
- Dark resistance (Mega): 0.5
- Response time (ms): rising: 20 falling:30
Spesifications for GL5528 :
- Maximum voltage (vdc): 150
- Maximum power consumption (mw): 100
- Ambient temperature (°C): 25
- Spectral peak (nm): 540
- Bright resistance (10lux) (thousand ohms): 10-20
- Dark resistance (Mega): 1
- Response time (ms): rising:20 falling:30
Package :
- 1x LDR GL5516 / GL5528
