LCR-TC1 Component Tester Diode Triode Capacitor Resistor Transistor

Detail LCR-TC1 Component Tester Diode Triode Capacitor Resistor Transistor

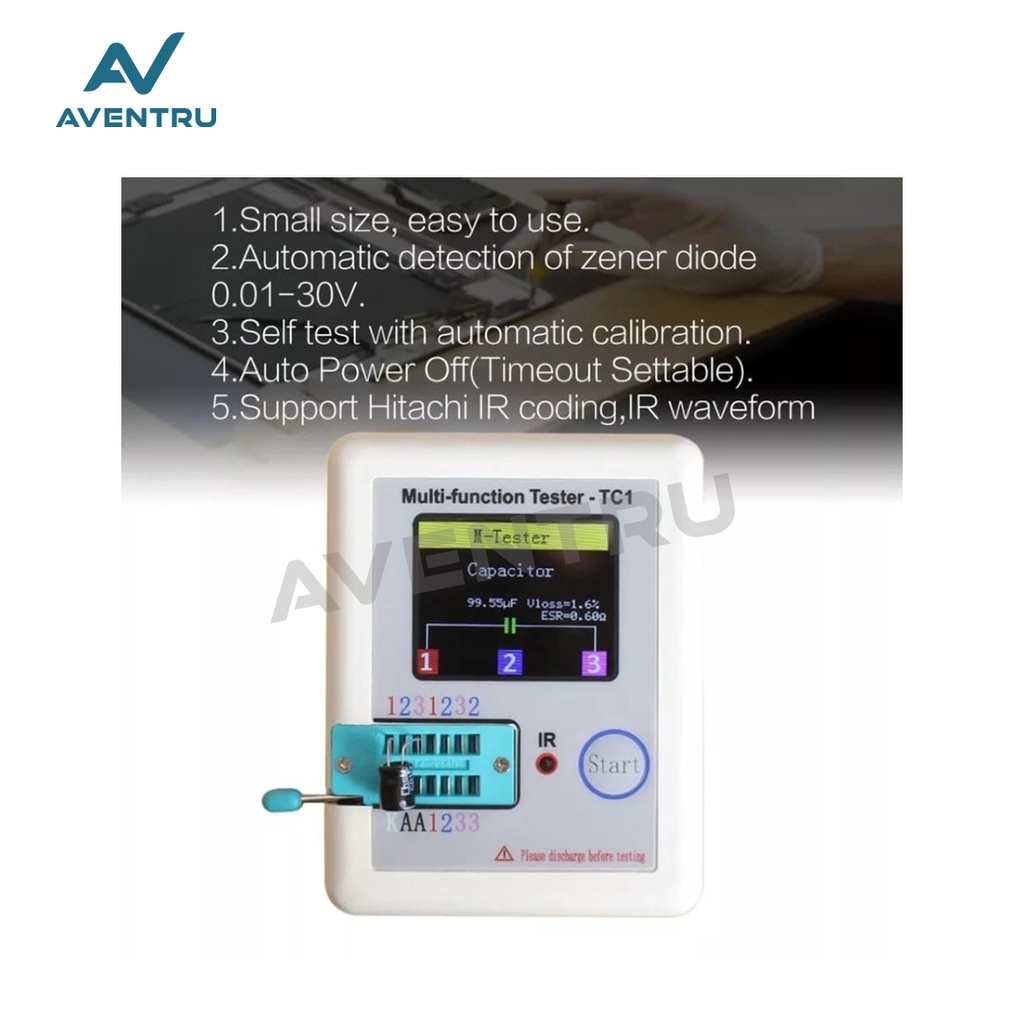

Features:

- It can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFETs, IGBTs, JFETs, triacs and batteries etc.
- It can also be used to detect infrared waveforms .
- It can also detect the zener diode and has a self-calibration function .
After detection, align the infrared remote control with "IR" light, then press the button on the remote control, if the detector succeeds in decoding it, it will display the data code and infrared waveform.
- One button operation , automatically detects on and off, and you can press the multi-functional button to close the detector as well.
- Put the pins of component in corresponding area, then dial the little handle and the detector will test it automatically, finally the results will display on the back light TFT screen clearly.
- Unlike the usual black and white display, this detector will show color results .


Specifications :
- Display: 1.8 inch TFT Screen
- Rentang Diode: <4.5V
- Zener Diode: Area Deteksi Transistor: 0.01-4.5V
- Area Deteksi Zener Diode: 0.01-30V
- Triac Range: IGT <6mA
- Capacitance: 25pF-100mF
- Resistor : 0.01-50MΩ
- Inductance: 0.01mH-20H
- Battery: 0.1-4.5V
- Power Mode: Rechargeable Lithium Battery ( INCLUDED )
- Ukuran Barang: 8,8 x 8 x 2,8 cm / 3,47 x 3,15 x 1,10in
- Item Weight: 111.5g / 3.94oz
- Package Size: 14.5 x 12 x 2.7 cm / 5.71 x 4.73 x 1.06in
- Package Weight: 114g / 4.02oz

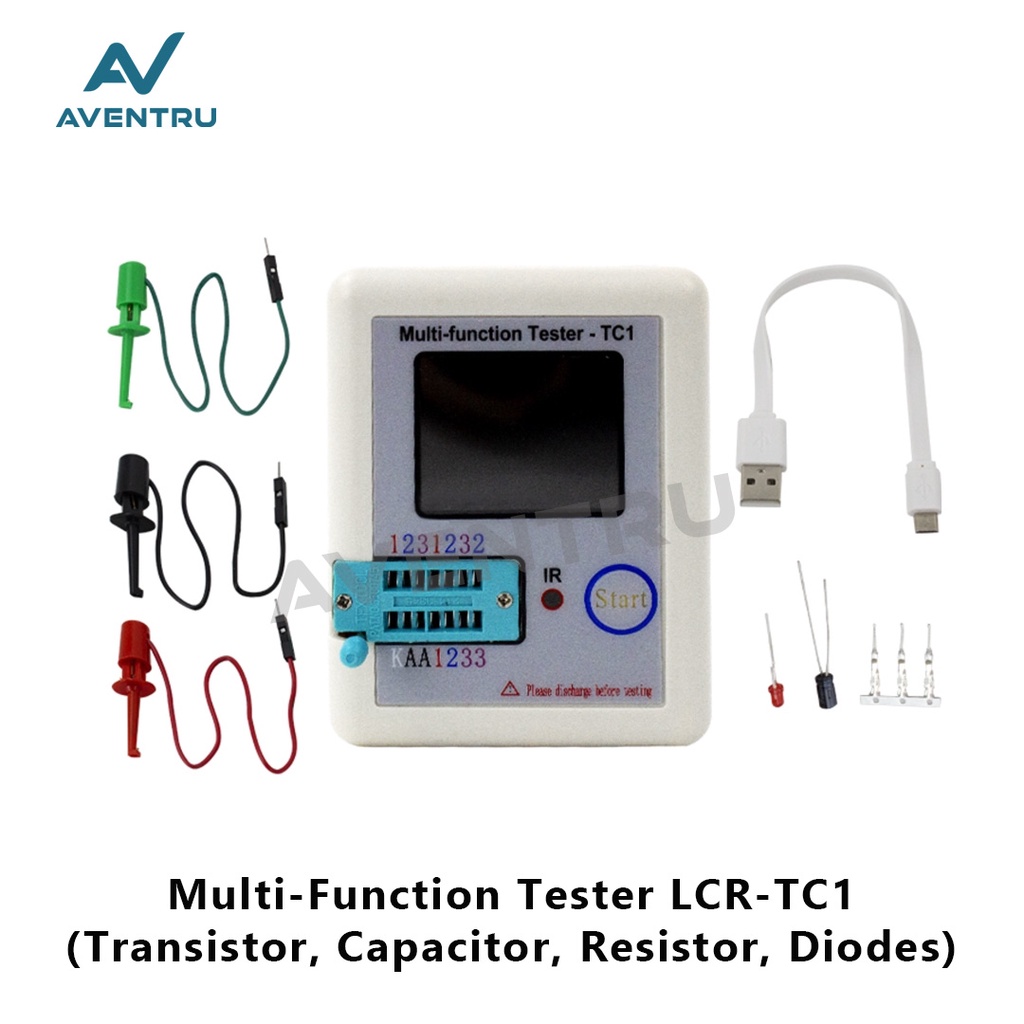

Package List:

1 x TFT transistor tester
1 x Electronic component set
3 x Test hooks
1 x Micro USB Cable

Gambar produk
