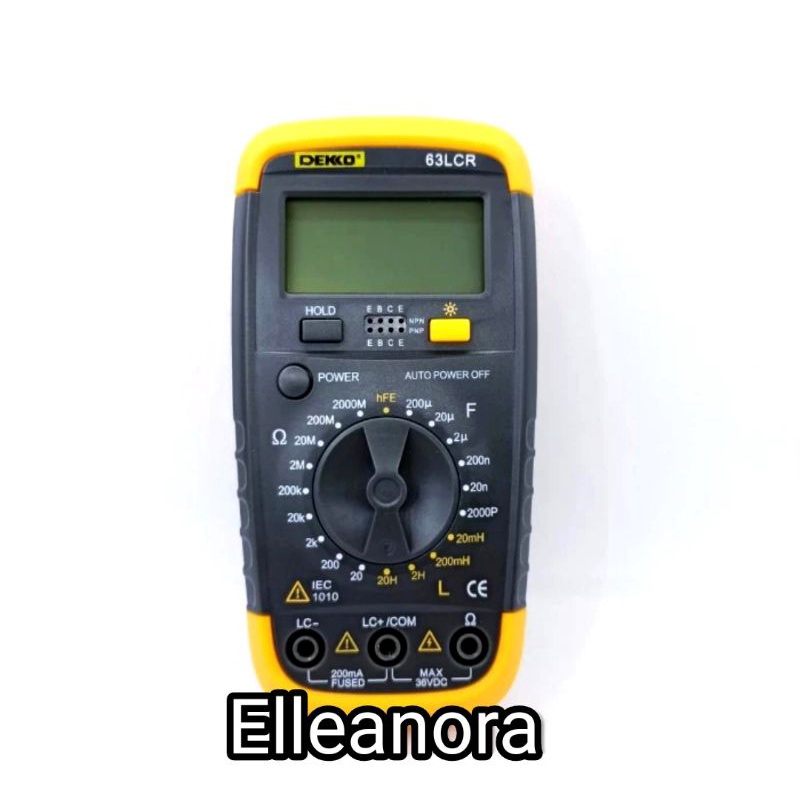

LCR Meter Digital Dekko 63LCR

Detail LCR Meter Digital Dekko 63LCR

LCR Meter Digital Dekko 63LCR

Brand: Dekko
Type: 63LCR

Type ini cocok bagi anda yang mengutamakan pengukuran Lilitan (bisa juga untuk pengukuran capasitor)

Specs:
General Charactheristic :
- 3,5 Inch Digit Big LCD, Max Indication 1999
- Auto Zero & Auto-Polarity
- Over Range Indicator of 1 or -1
- Low Battery Indicator
- Power supply : 9V Zinc Carbon Battery
- Temperature for best accuracy : 23 Celcius +/- 5%
- Working temperature range : 0 - 40 Celcius
- Storage temerature range : -20 - 60 Celcius
- Working humidity range : Max 75%RH
- Storage humidity range : Max 80%RH
- Size : 143x75x32mm
- Weight : 200 gr

Measurement Specification :
- Resistance : 20 Ohm, 200 Ohm, 2K Ohm, 20K Ohm, 200K Ohm, 2M Ohm, 20M Ohm, 200M Ohm 2000M Ohm
- Capacitance : 2000PF, 20nF, 200nF, 2uF, 20uF, 200uF
- Inductance : 20mH, 200mH, 2H, 20H
- Transistor hFE test
- Backlight

Kelengkapan:
1x Dekko 68LCR
1x Buku petunjuk
1x Batere 9V
1x Kabel Tester
