LCD1602 LCD 1602 LCD modul 16X2 DC 5V backlight biru

Detail LCD1602 LCD 1602 LCD modul 16X2 DC 5V backlight biru

Brand new and high quality.
LCD display module with BLUE blacklight.
Wide viewing angle and high. contrast.
Built-in industry standard HD44780. equivalent LCD controller.
Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
LCM type: Characters Can display 2-lines X 16 characters.
Operate with 5V DC.
Module dimension: 80mm x 36mm x 11mm
Viewing area size: 64.5mm x 16mm

Pin Configurations:
1 = VSS
2 = VDD
3 = VO
4 = RS
5 = RW
6 = E
7 = D0
8 = D1
9 = D2
10 = D3
11 = D4
12 = D5
13 = D6
14 = D7
15 = backlight anoda
16 = backlight katoda

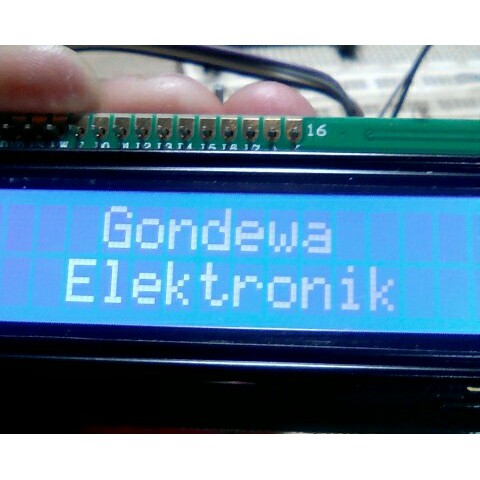

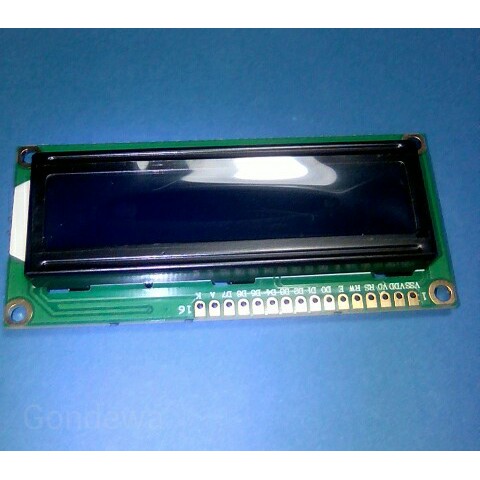

Gambar produk
