LCD1602 LCD 1602 LCD modul 16X2 DC 5V backlight yellow green

Detail LCD1602 LCD 1602 LCD modul 16X2 DC 5V backlight yellow green

Brand new and high quality.
LCD display module with Yellow green blacklight.
Wide viewing angle and high contrast.
Built-in industry standard HD44780 equivalent LCD controller.
Commonly used in: copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices.
LCM type: Characters
Can display 2-lines X 16-characters.
Operate with 5V DC.
Module dimension: 80mm x 36mm x 11mm.
Viewing area size: 64.5mm x 16mm
Pin Configurations:
1 = VSS
2 = VDD
3 = VO
4 = RS
5 = RW
6 = E
7 = D0
8 = D1
9 = D2
10 = D3
11 = D4
12 = D5
13 = D6
14 = D7
15 = backlight anoda
16 = backlight katoda

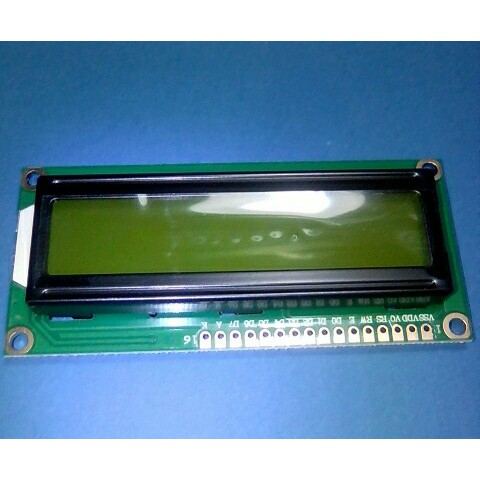

Gambar produk
