LAN Tester DIGITAL SC8108 - DIGITAL LAN Tester CATegory 5e

Detail LAN Tester DIGITAL SC8108 - DIGITAL LAN Tester CATegory 5e

LAN Tester DIGITAL SC8108 - DIGITAL LAN Tester CAT5e

DISKRIPSI PRODUK
SC8108 CAT5 RJ45 Network LAN Length Cable Tester Meter Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R).
LCD: 4 x 16 characters (visible dimension: 61.6 x 25.2 mm)
Application: STP / UTP twin twisted cable, coaxial cable, telephone line
Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R)
The extra BNC and RJ11 converters are used to measure and check the continuity of coaxial cable and telephone line
Length measurement of twin twisted cable:
Scope : 1350M (31,200 FT)
Calibration accuracy : 3% ( 0.5m or 1.5 ft) (calibrating cable > 5 M)
Shipment accuracy : 5% ( 0.5m or 1.5 ft) (AMP, AT&T Class 5 cable)
Display : M or FT
Length calibration: User can set calibration factor by himself by a given length cable.
The length of calibrating cable is more than 5m.
Working temperature: -10C to 60C
Powered by 4 AA batteires (NOT included)
Dimension: 180 x 80 x 40 mm

ISI KEMASAN/PAKET
1 X Network tester
1 X User manual

FUNGSI PRODUK
1. Mudah dioperasikan
2. Memeriksa kesalahan kabel dari 5E & 6E kabel koaksial dan saluran telepon, termasuk rangkaian terbuka,
3. Hubung singkat, kawat jumper, membalikkan koneksi dan cross-talk gangguan
4. Cari lokasi kabel atau koneksi error
5. Mengukur panjang kabel, dan menemukan lokasi sirkuit terbuka dan sirkuit pendek

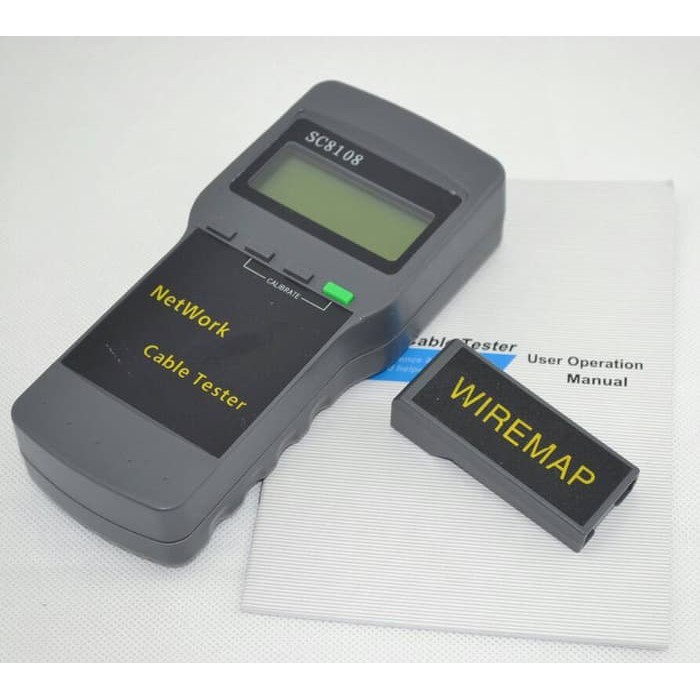

Gambar produk
