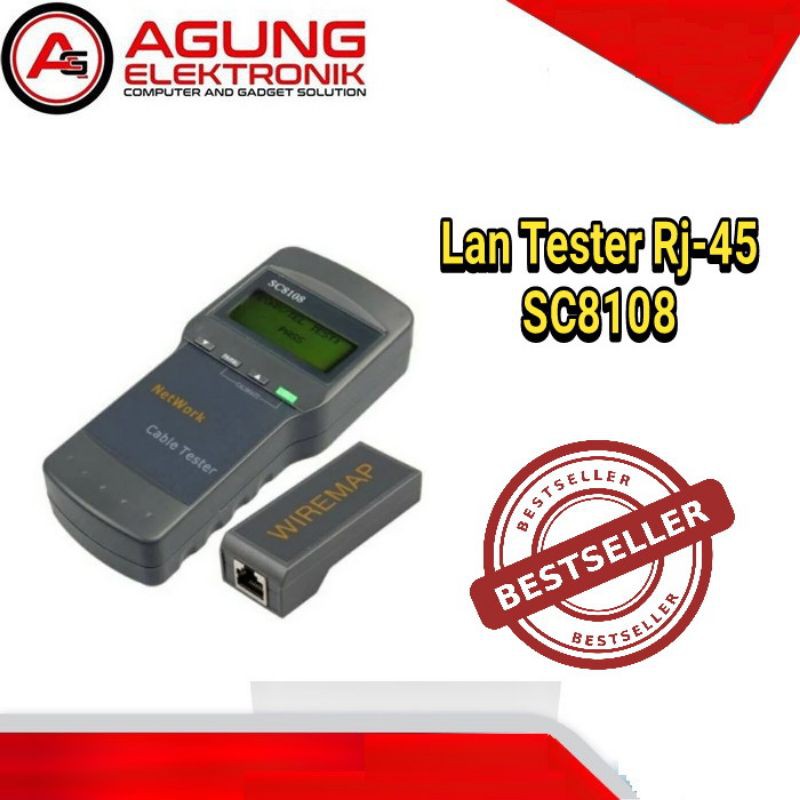

LAN TESTER DIGITAL SC8108 [LAN TESTER RJ-45]

Detail LAN TESTER DIGITAL SC8108 [LAN TESTER RJ-45]

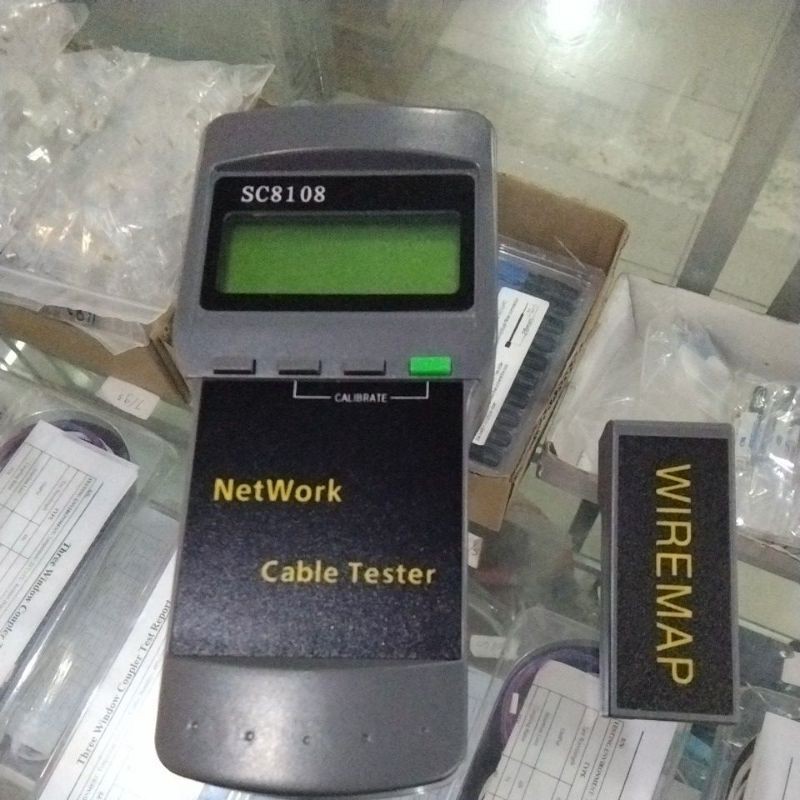

LAN Tester DIGITAL SC8108 - DIGITAL LAN Tester CAT5e DISKRIPSI PRODUK SC8108 CAT5 RJ45 Network LAN Length Cable Tester Meter Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R). LCD: 4 x 16 characters (visible dimension: 61.6 x 25.2 mm) Application: STP / UTP twin twisted cable. Tester RJ45 master port (M), tester LOOPBACK RJ45 port (L), far-end recognizer RJ45 port (R) Length measurement of twin twisted cable: Scope : 1350M (31,200 FT) Calibration accuracy : 3% ( 0.5m or 1.5 ft) (calibrating cable > 5 M) Shipment accuracy : 5% ( 0.5m or 1.5 ft) (AMP, AT&T Class 5 cable) Display : M or FT Length calibration: User can set calibration factor by himself by a given length cable. The length of calibrating cable is more than 5m. Working temperature: -10C to 60C Powered by 4 AA batteires (NOT included) Dimension: 180 x 80 x 40 mm ISI KEMASAN/PAKET 1 X Network tester 1 X User manual FUNGSI PRODUK 1. Mudah dioperasikan 2. Memeriksa kesalahan kabel dari 5E & 6E kabel, 3. Hubung singkat, kawat jumper, membalikkan koneksi dan cross-talk gangguan 4. Cari lokasi kabel atau koneksi error 5. Mengukur panjang kabel, dan menemukan lokasi sirkuit terbuka dan sirkuit pendek

Gambar produk
