Detail LAN TESTER 4 in 1 RJ45/RJ11/USB/BNC / ALAT TESTER LAN

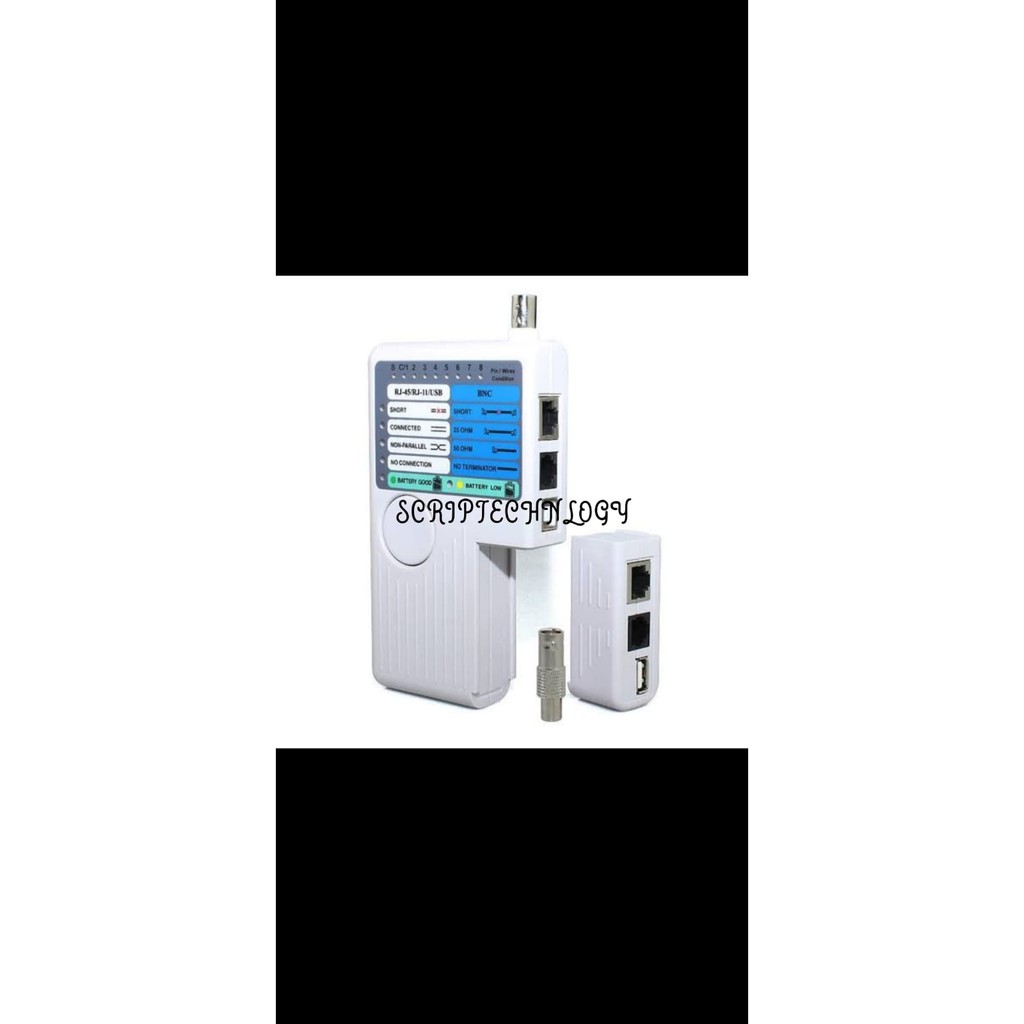

4 in 1 Phone Network Remote Cable Tester RJ45 RJ11 BNC.

Features:

Test 4 types of cables: RJ-45, RJ-11, USB and BNC.
Test installed wiring or patch cables.
Tests shielded (STP) or unshielded (UTP) LAN cables.
Test shields in USB cables.
Can test from 2 remote points.
Beeper provides audible annunciation of test results.
Remote unit stores in Main unit.
BNC terminator 25/50 Ohm indications.
Straight or crossover indications.
LEDs indicate connections and faults of wire and pins.
RJ-11/RJ-45 are equipped with 50u gold plating.
300 feet test distance (RJ-45/RJ-11/BNC).
Ergonomic portable handheld design.
Powered by a 9V Alkaline battery. (Not included)


Specifications:

Cable Tested:
Test 4 types of cables (RJ-45, RJ-11, USB and BNC).
Simple one button test.
Fast speed testing:
UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568).
RJ-11 cables with male connectors, 2 to 6 conductors installed.
USB cables with Type A flat plug on one end and type B square Plug on other end.
BNC cables with male connectors.
Faults Indicated: No Connections, Shorts, Opens and Crossover.Low Battery Indicator: LED lights to indicate low battery.Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included).Size: 16cm x 8.5cm x 2.5cm.

Package of Contents :

1 x 4 in 1 Cable Tester
1 x Portable Bag
1 x Use Manual.
