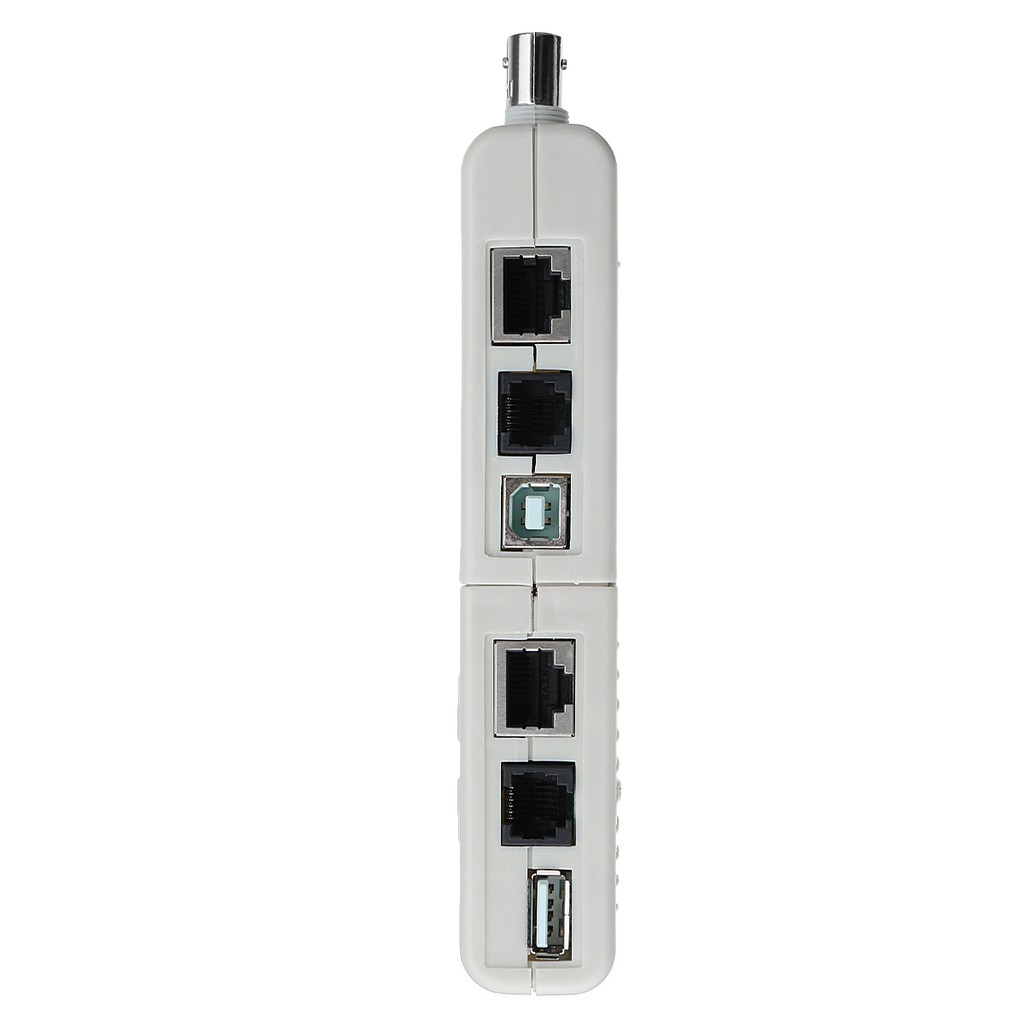

Features: Test 4 types of cables: RJ-45, RJ-11, USB and BNC. Test installed wiring or patch cables. Tests shielded (STP) or unshielded (UTP) LAN cables. Test shields in USB cables. Can test from 2 remote points. Beeper provides audible annunciation of test results. Remote unit stores in Main unit. BNC terminator 25/50 Ohm indications. Straight or crossover indications. LEDs indicate connections and faults of wire and pins. RJ-11/RJ-45 are equipped with 50u gold plating. 300 feet test distance (RJ-45/RJ-11/BNC). Ergonomic portable handheld design. Powered by a 9V Alkaline battery. (Not included)
Specifications:
Cable Tested: Test 4 types of cables (RJ-45, RJ-11, USB and BNC). Simple one button test. Fast speed testing: UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568). RJ-11 cables with male connectors, 2 to 6 conductors installed. USB cables with Type A flat plug on one end and type B square Plug on other end. BNC cables with male connectors. Faults Indicated: No Connections, Shorts, Opens and Crossover.Low Battery Indicator: LED lights to indicate low battery.Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included).Size: 16cm x 8.5cm x 2.5cm.

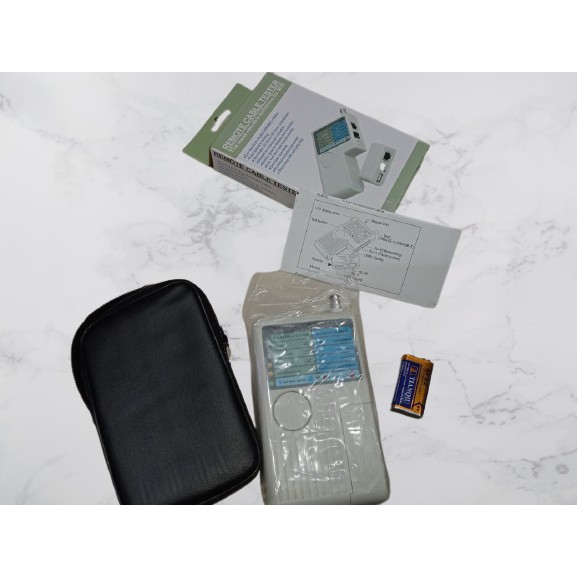

Package of Contents : 1 x 4 in 1 Cable Tester 1 x Portable Bag 1 x Use Manual
