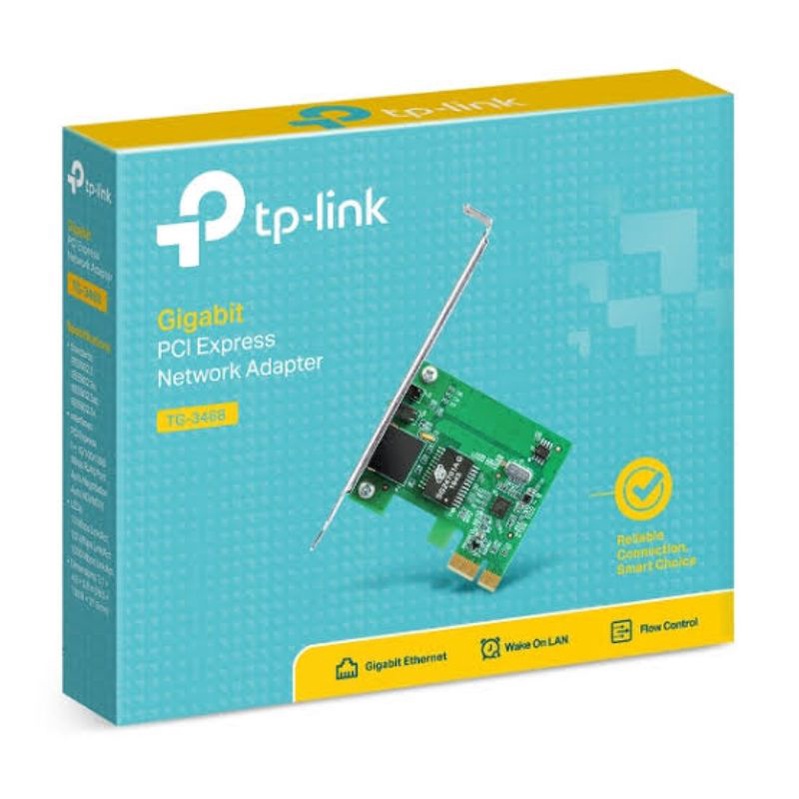

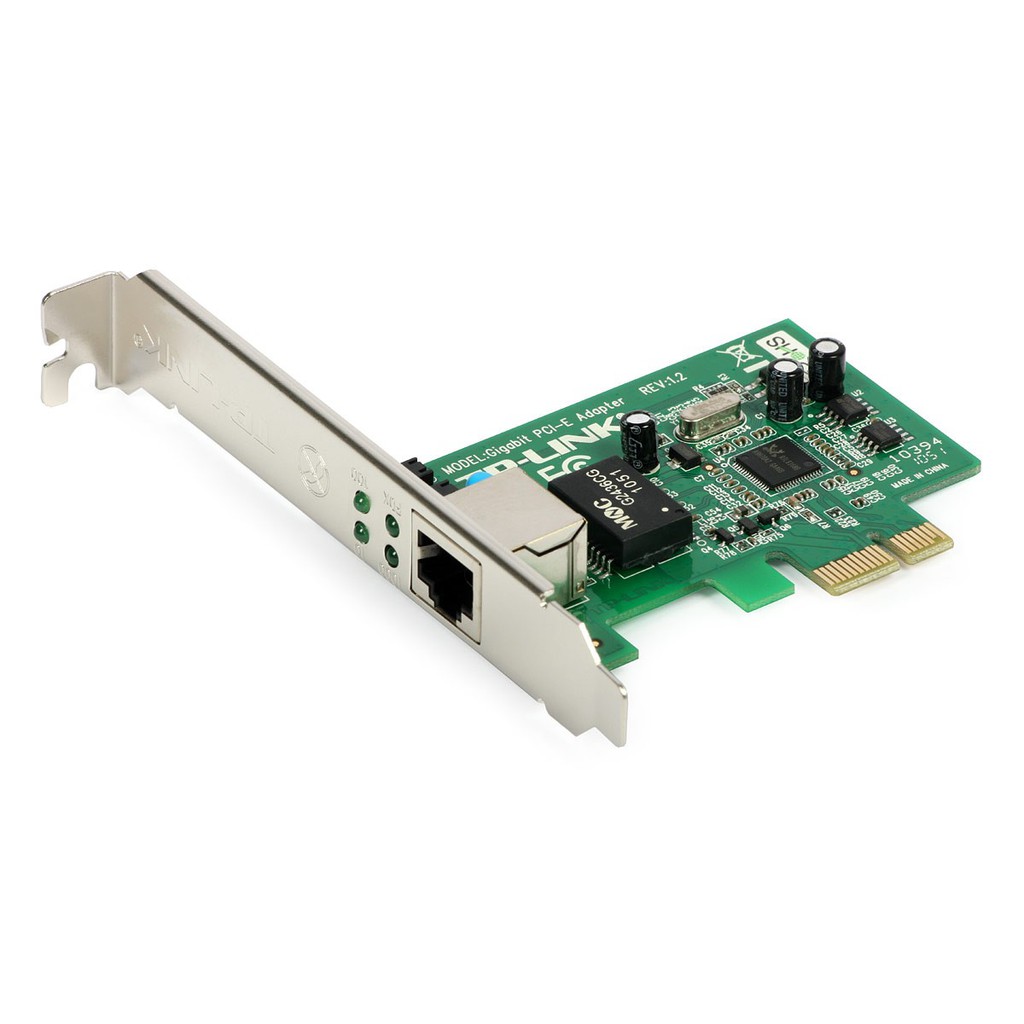

LAN Card Tp-Link TG-3468 Gigabit LAN 10/100/1000Mbps PCI Ekspress

Detail LAN Card Tp-Link TG-3468 Gigabit LAN 10/100/1000Mbps PCI Ekspress

Features
- 10/100/1000Mbps PCIe Adapter
- 32-bit PCIe interface, saving the finite chassis space
- Wake-on-LAN, convenient to over LANmanage

What This Product Does
TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

SPECIFICATIONS
HARDWARE FEATURES
Standards and Protocols: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP

Interface : 32-bit PCI Express
1 10/100/1000Mbps RJ45 port

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)

Data Rates
10/100/1000Mbps for Half-Duplex mode
20/200/2000Mbps for Full-Duplex mode

LED Indicator
1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act

Flow Control IEEE 802.3x Flow Control (Full-Duplex)

OTHERS
Certification CE, FCC, RoHS

Package Contents
- Gigabit PCI Express Network Adapter TG-3468
- Resource CD
- Quick Installation Guide

System Requirements:
- Windows 10/8.1/7(32/64bits),Windows Vista(32/64 bits),Window XP(32/64bits)
