Lampu Strip Led Drl Untuk Mobil / Motor

Detail Lampu Strip Led Drl Untuk Mobil / Motor

The color is white, ice blue;
Product Name: Snake Snake Daytime Light
Features:
壹. The design is unique, the design is inspired by the “snake snake” humanized and bendable installation, beautiful: (patented product)

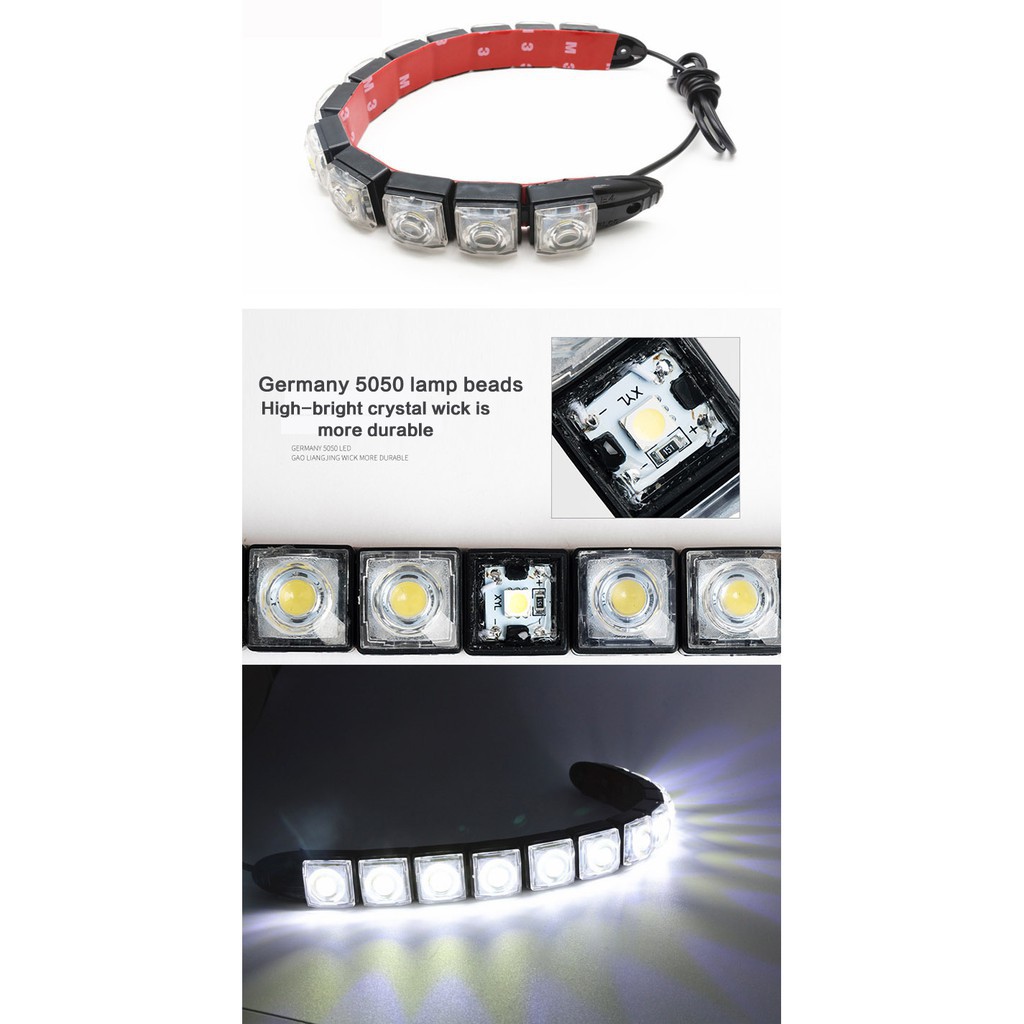

1. Adopt imported LED high-power light source, the lampshade adopts concentrated light output of condenser lens, and the twelve lamp beads are beautiful and generous.

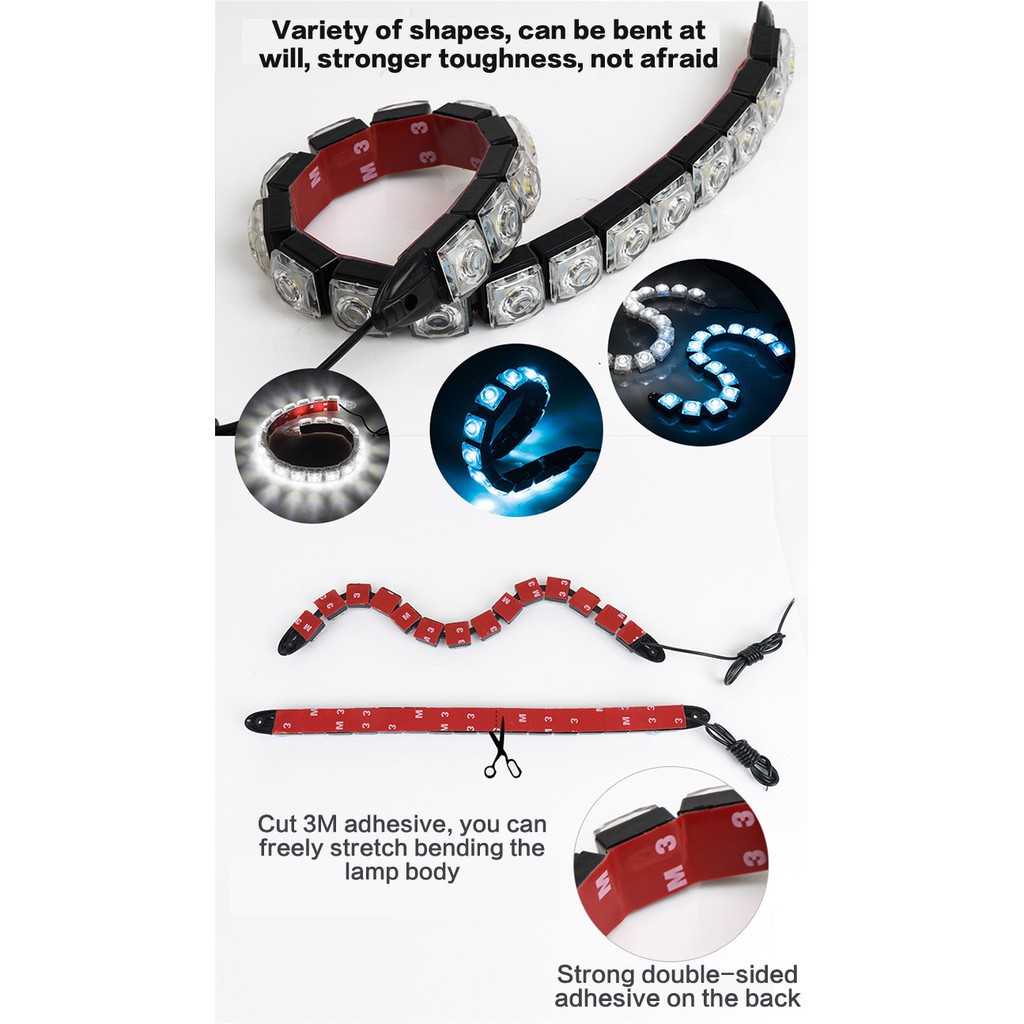

2. With unique physical design, it can be bent at 360 degrees in different orientations; the larger range is suitable for complex installation positions of automobiles;
3, the back is equipped with super-strong double-sided adhesive can be pasted, the lamp body has screw holes at both ends to lock the screw double insurance.
4. The lamp body is sealed and waterproof. Waterproof rating IP67
Second, use the transformation
It can be used as a daytime running light, fog light, brake light, reverse light, decorative light, license plate light, door light, and chassis light. It only needs to change the line connection mode and installation position; it can be installed in various models of high, medium and low. The installation is simple; outside the car, the bottom of the car can be installed everywhere.
Third, the performance is stable
Waterproof, anti-aging, energy saving, anti-interference, temperature resistance, anti-collision, excellent performance
Four. Product parameters
1. Power: 0.5 watt per wick
2. Voltage: DC 12V
3. Color temperature: 8000K~8500K
4. Light color: white light, ice blue
6, product size:
6 lamp size: length 18cm × width 2cm × thickness 1.5cm
8 lamp size: length 22cm × width 2cm × thickness 1.5cm
9 lamp size: length 24cm × width 2cm × thickness 1.5cm
10 lamp size: length 26cm × width 2cm × thickness 1.5cm
12 lamp size: length 30cm × width 2cm × thickness 1.5cm
14 lamp size: length 34cm × width 2cm × thickness 1.5cm

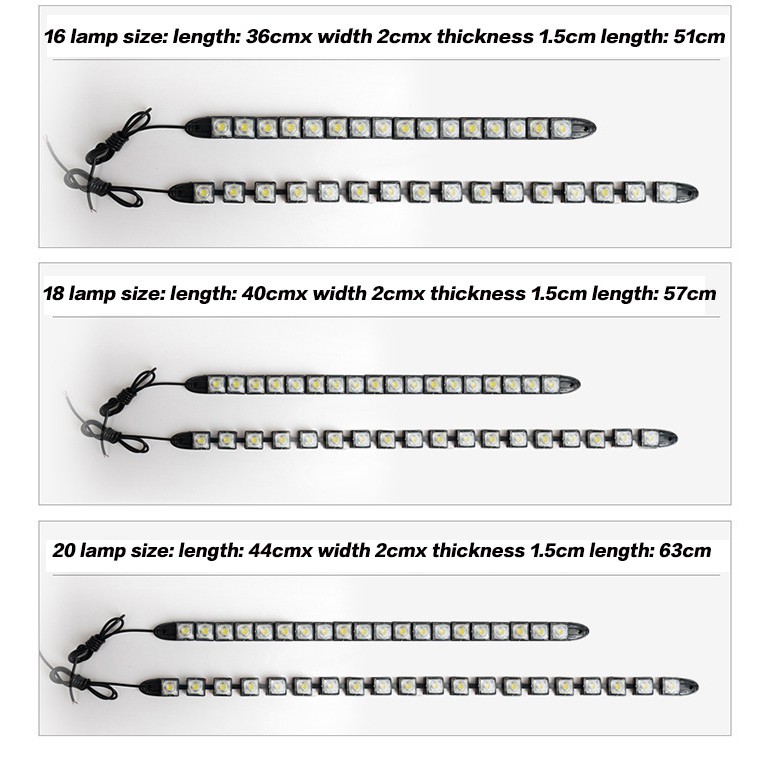

16 lamp size: length 36cm × width 2cm × thickness 1.5cm
18 lamp size: length 40cm × width 2cm × thickness 1.5cm
20 lamp size: length 44cm × width 2cm × thickness 1.5cm
Wiring method: Each lamp has two lines of red and black, the red line is connected to the positive pole of the power supply, and the black line is connected to the negative pole. According to different needs, the corresponding power supply can be connected. For example, when the running light can be connected with the red wire and the ignition switch, the black wire is automatically turned on when the car is ignited; when the reversing light is used, the red wire can be connected to the reverse lamp and the black wire is connected to the negative pole to open. When the reversing light is turned on; the other power supply is the same, the red line is connected to the positive black line, the negative pole is energized, the light is turned off, and the light is turned off.
