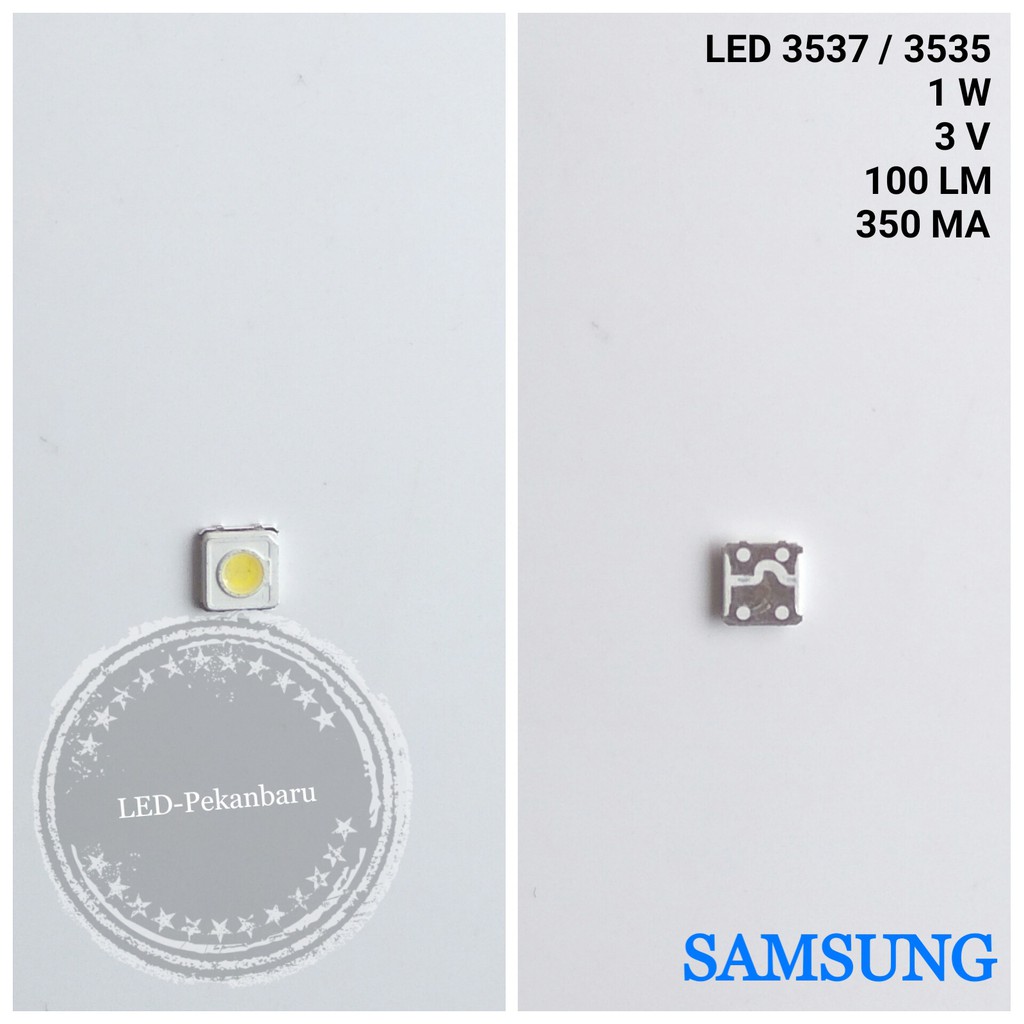

Detail LAMPU LED BACKLIGHT TV LCD SAMSUNG 3537 3535 3V 1A
LED Backlight tv lcd samsung, MODEL NAME : A127CECEBUP8C-6078 Manufacturer : LUMENS Origin : Korea Package Model:Loaded Quantity 5000PCS Per Reel Forward Current (IF ): 350mA Pulse Forward Curren t1 (IFp): 500mA Reverse Current (IR): 25mA Reverse Voltage (VR): 5V (5mA) Power Dissipation (PD): mW Operatin Tgemperature (Topr): -40 - +85 ° C Storage Temperature (Tstg): -40 - +100 ° C Soldering Temperature (Tsld): Reflow Soldering:260 ° C for 10secs Hand Soldering:350 ° C For 3secs Junctio Tnemperature (Tj ): 110 ° C Forward Voltage (VF): 3.15-3.40V (350mA) Luminous Flux (LM): lm (350mA) Luminous Intensity ( IV ) : 23-24cd (350mA) Wavelength (nm) : -nm mA CIE : x=0.2666 y=0.2291(450mA)
