Detail LAMPU LED BACKLIGHT LCD TV SAMSUNG 3228 2828 3V 3W 110LM 3WATT

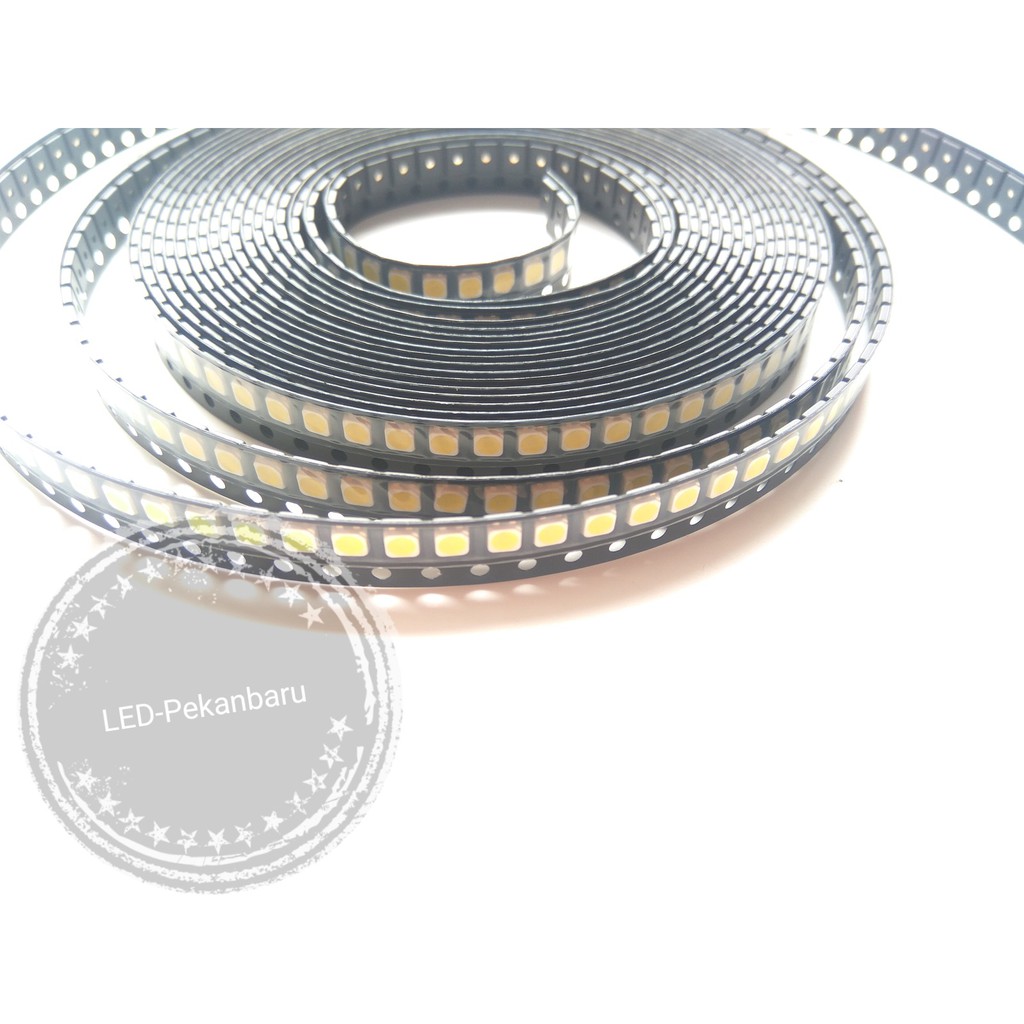

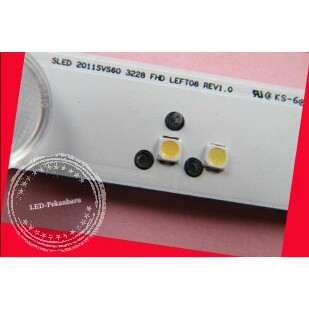

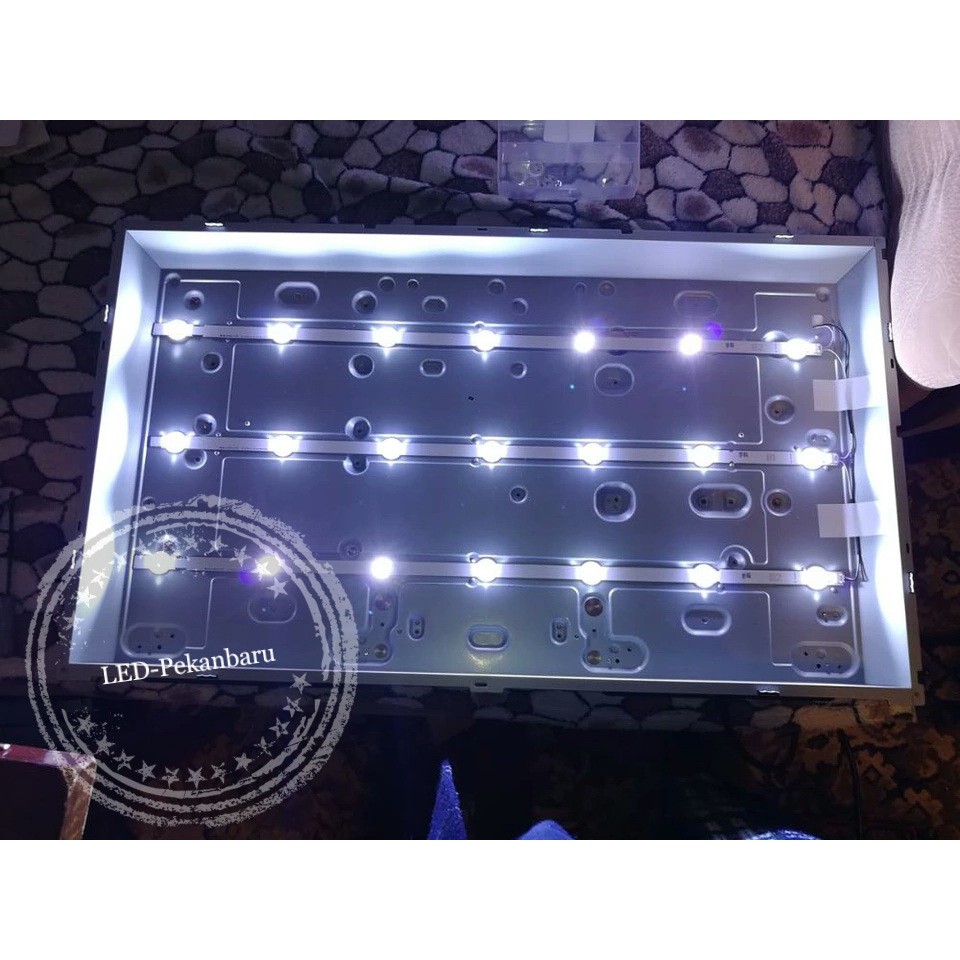

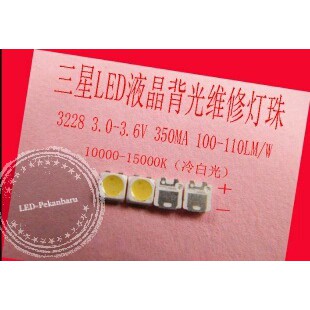

Lampu led backlight untuk repair/ perbaikan tv lcd samsung dll yang menggunakan lampu led tersebut, barang sesuai di foto
Spesifikasi,
MODEL NAME : SPBWH1320S1EVC1BIB
Forward Current (IF ): 570mA
Pulse Forward Curren t1 (IFp):mA
Reverse Current (IR):uA
Reverse Voltage (VR):0.7-1.2V (5mA)
Power Dissipation (PD): 3W
Operatin Tgemperature (Topr): - 40 +85C °
Storage Temperature (Tstg): -40 - +100 C °
Soldering Temperature (Tsld): Reflow Soldering:265 °C for 10secs
Hand Soldering: 350 °C for 3secs
Junctio Tnemperature (Tj ): 140 °C
Forward Voltage (VF): 3.3-3.9V (400mA)
Luminous Flux (IV): 30.81-36.79CD (400mA)
Wavelength (nm) : 438-448nm (400 mA)
Emissions-farbe Color of Emission :
Color Correlated Temperature (CCT): K
CRI : 80°
Viewing angle : 120°
