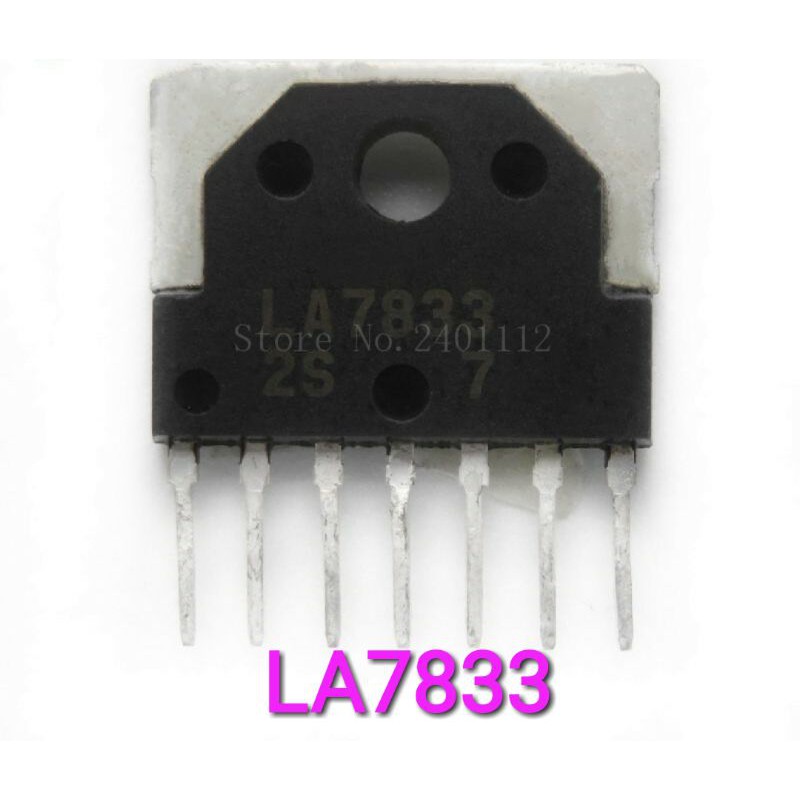

Detail LA7833 IC LA 7833 Color TV Vertical Deflection Output Circuit
LA7833 LA 7833 Color TV Vertical Deflection Output Circuit BS67
Overview The LA7833 is a monolithic linear IC for vertical deflection output for large color television sets that requires few external components and dissipates little power. When used in conjunction with the LA7620 series of video chroma deflection ICs, the LA7800 series of deflection ICs, and the LA7850 series of display ICs, it is possible to create a stable and compact vertical Output deflection circuit.
Features . High output. . Low power dissipation due to built-in pump-up circuit. . Few external components needed. . Thermal protection circuit built in.
