L9110 H-bridge Dual Stepper Motor DC Driver Controller for arduino

Elektronik > Remot Kontrol > L9110 H-bridge Dual Stepper Motor DC Driver Controller for arduino
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail L9110 H-bridge Dual Stepper Motor DC Driver Controller for arduino

Features
onboard two the L9110S motor control chip
the module can simultaneously drive two DC motors or a 4-wire 2-phase stepper motor
the module input voltage :2.5-12V
the 800mA continuous current output capability per channel

1. Low static work current

2. Power supply voltage: DC2.5-12V

3. Each channel has 800mA continuous current output

4. Low saturation pressure drop

5. TTL/CMOS output level compatible, can be connected directly to the CPU

6. Output built-in clamping diode, apply to the perceptual load

7. Control and drive integrate in IC

8. Have pin high pressure protection function

9. Working temperature: 0-80 ℃
10.Size:29.2(mm)x23(mm)



51 test code:

#include

sbit MOTOR_A_1 = P0 ^ 0;

sbit MOTOR_A_2 = P0 ^ 1;

sbit MOTOR_B_1 = P0 ^ 2;

sbit MOTOR_B_2 = P0 ^ 3;

void delay(unsigned long cnt)

{

while(cnt--);

}

void forward(void)

{

MOTOR_A_1 = 1;

MOTOR_A_2 = 0;

MOTOR_B_1 = 1;

MOTOR_B_2 = 0;

}

void backward(void)

{

MOTOR_A_1 = 0;

MOTOR_A_2 = 1;

MOTOR_B_1 = 0;

MOTOR_B_2 = 1;

}

void main(void)

{

EX0 = 1;

EX1 = 1;

EA = 1;

while(1)

{

forward();

delay(30000);

backward();

delay(30000);

Gambar produk

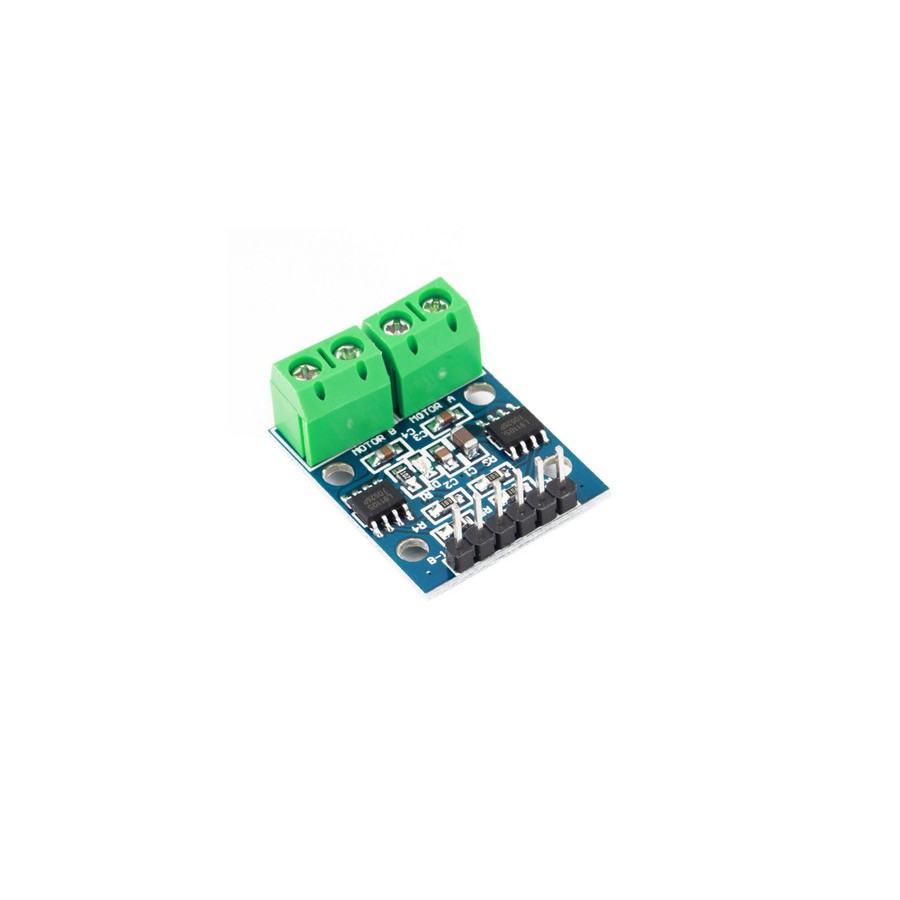

L9110 H-bridge Dual Stepper Motor DC Driver Controller for arduino
