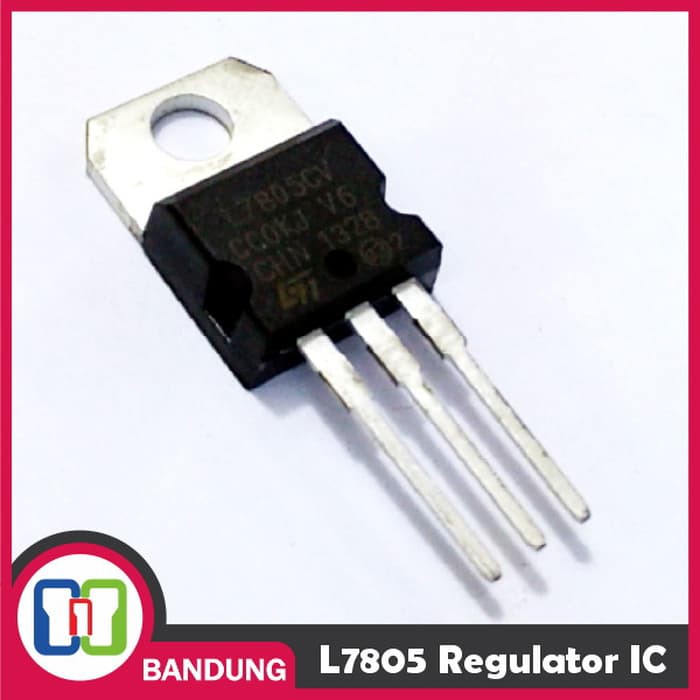

Detail L7805CV L7805 7805 TO 220 POSITIVE VOLTAGE REGULATOR 5V

PN : ICS-0001

===========

Mohon maaf Order yg kami terima minimal Rp.5.000 diluar ongkir, di bawah Rp.5.000 tidak akan kami proses, order diatas Rp.5.000 akan kami proses.

Deskripsi
The L7800 series of three-terminal positive regulators is available in TO-220, TO-220FP, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications.


These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current.

Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Fitur
- Output current : up to 1.5A
- Output voltages of : 5V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection

Paket : 1x L7805 POSITIVE VOLTAGE REGULATOR 5V

Gambar produk

L7805CV L7805 7805 TO 220 POSITIVE VOLTAGE REGULATOR 5V
L7805CV L7805 7805 TO 220 POSITIVE VOLTAGE REGULATOR 5V
