Detail L298N L298 DUAL H-BRIDGE MOTOR DRIVER MODULE

Hi #RekanEasyWare ...
EasyWare Part#: EP000766

The L298N Motor Driver Module is a high voltage Dual H-Bridge manufactured by ST company. It is designed to accept standard TTL voltage levels. H-bridge drivers are used to drive inductive loads that requires forward and reverse function with speed control such as DC Motors, and Stepper Motors. This Dual H-Bridge driver is capable of driving voltages up to 46V and continuous current up to 2A in each channels.

FITUR DAN SPESIFIKASI :
* Driver: L298 Dual H Bridge DC Motor Driver IC
* Operating Voltage: 7 to 35V
* Peak current: 2A
* Maximum power consumption: 20W (when the temperature T = 75 C)
* Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
* Driver Board Weight: 33g

KELENGKAPAN :
* 1pcs L298N Dual H-Bridge Motor Driver Module

Gambar produk

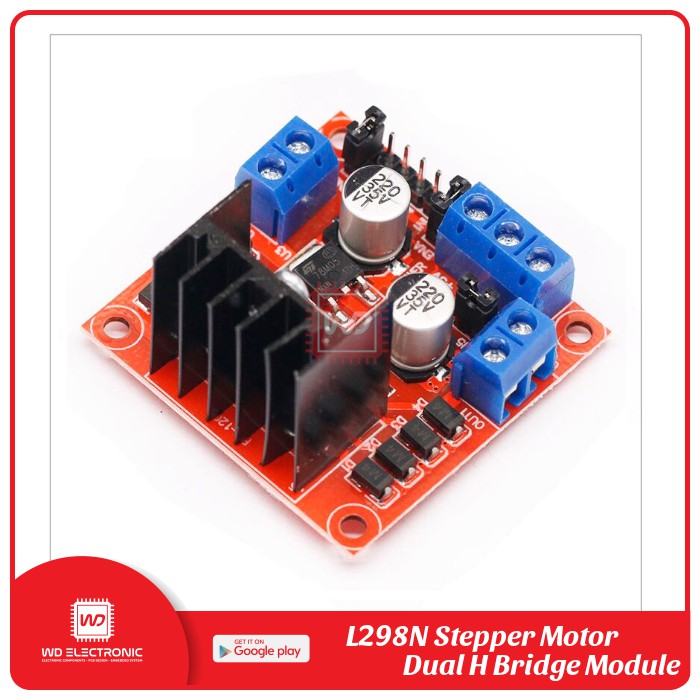

L298N L298 DUAL H-BRIDGE MOTOR DRIVER MODULE

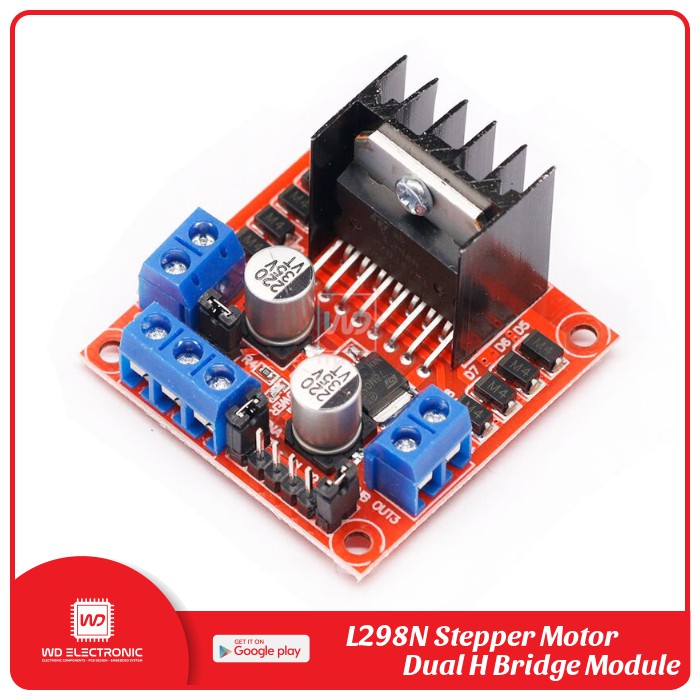

L298N L298 DUAL H-BRIDGE MOTOR DRIVER MODULE
L298N L298 DUAL H-BRIDGE MOTOR DRIVER MODULE
L298N L298 DUAL H-BRIDGE MOTOR DRIVER MODULE
