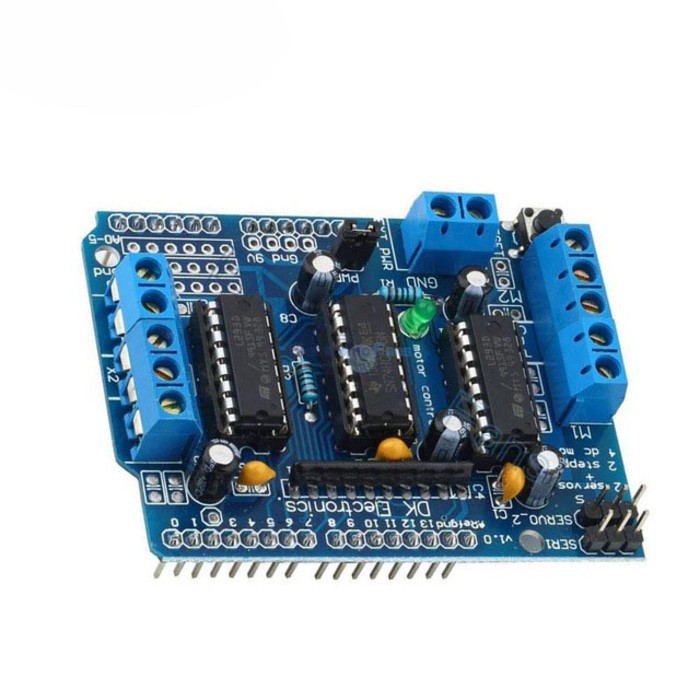

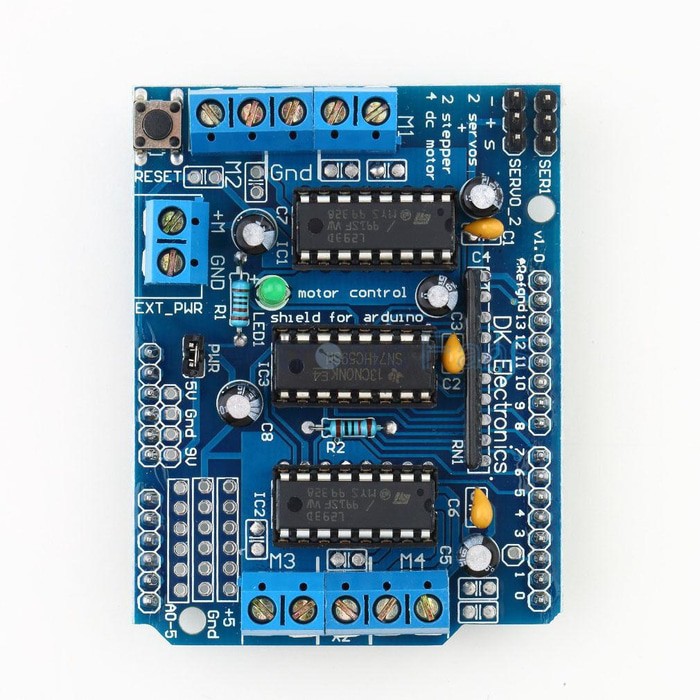

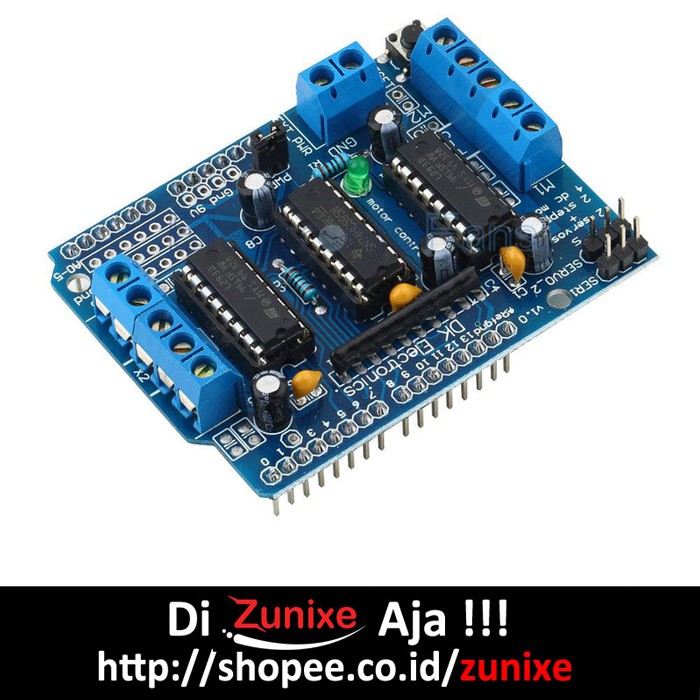

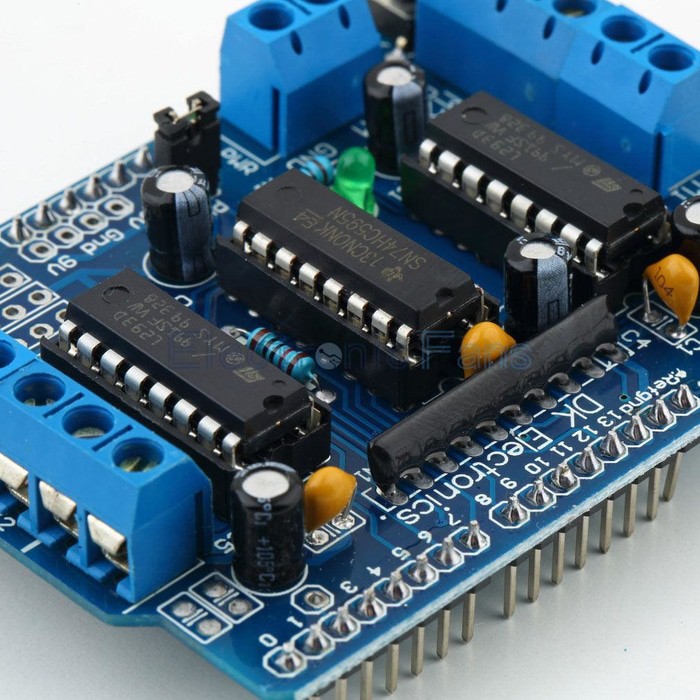

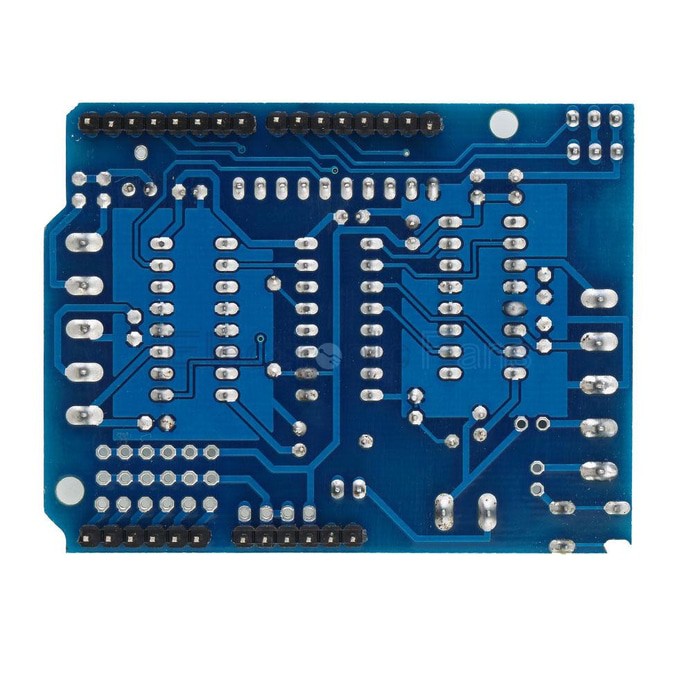

Detail L293 L293D MOTOR DRIVER SHIELD FOR ARDUINO MEGA UNO NANO

Motor driver shield L293D yang kompatibel dengan board arduino (bisa ditancapkan langsung di arduino UNO dan MEGA).

Spesifikasi :
-Four H-Bridges: Two L293D Motor driver chips
-L293D is rated at 0.6A per bridge (1.2A peak) with thermal shutdown protection, internal kickback protection diodes.
-Motor Voltages from 4.5VDC to 16VDC. (up to 36V if C6 and C7 are upgraded)
-Up to 4 bi-directional DC motors with individual 8-bit speed selection (256 speeds)
-Up to 2 stepper motors (unipolar or bipolar)
-Pull down resistors keep motors disabled during power-up
-Separate Logic and Motor power connections
-Terminal block connectors for motors and power
-2 connections for 5V 'hobby' servos

Dimensi (PxLxT) : 7 x 5.3 x 1.3 cm
