Detail L293D L293 STEPPER MOTOR DRIVER CONTROL SHIELD

Hi #RekanEasyWare ...
EasyWare Part#: EP000777

L293D is a monolithic integrated, high voltage, high current, 4-channel driver. Basically this means using this chip you can use DC motors and power supplies of up to 36 Volts, thats some pretty big motors and the chip can supply a maximum current of 600mA per channel. The L293D chip is also what's known as a type of H-Bridge. The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.

Spesifications :
- Motor voltage: 4.5V~25V
- Current: ≤1A
- 2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter.
- Can drive 4 DC motors or 2 stepper motors or 2 Servo.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection.
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection.
- Pull down resistors keep motors disabled during power-up.
- Built In Reset Button.
- 2 external terminal power interface, for separate logic/motor supplies.
- Fully compatible for Mega, Diecimila & Duemilanove.

Package :
- 1x L293D MOTOR DRIVER SHIELD FOR ARDUINO

Gambar produk

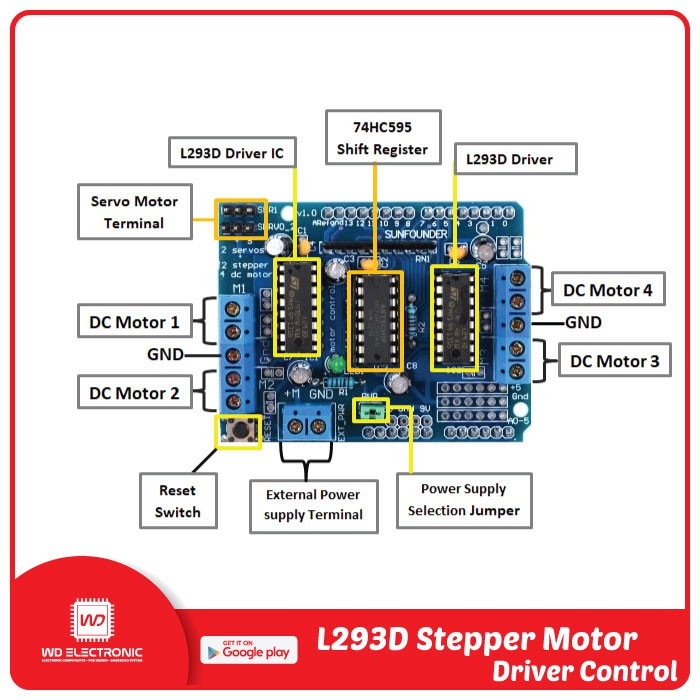

L293D L293 STEPPER MOTOR DRIVER CONTROL SHIELD

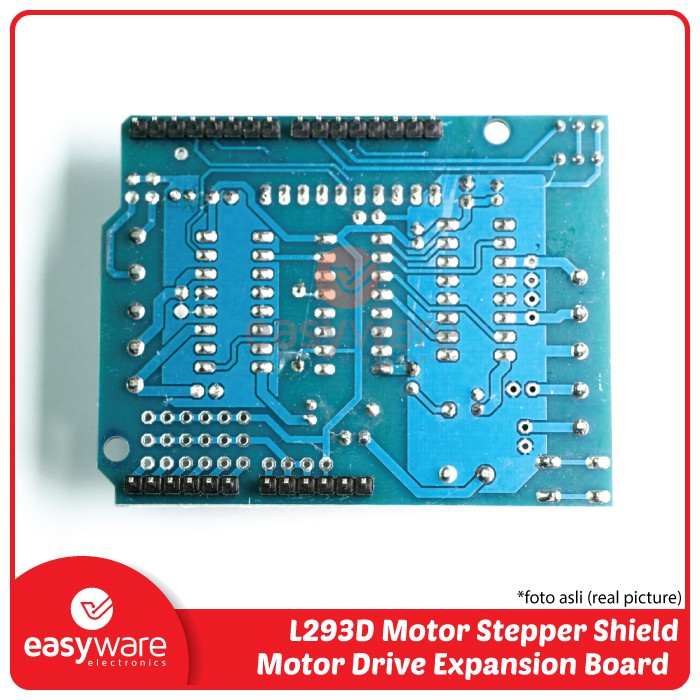

L293D L293 STEPPER MOTOR DRIVER CONTROL SHIELD

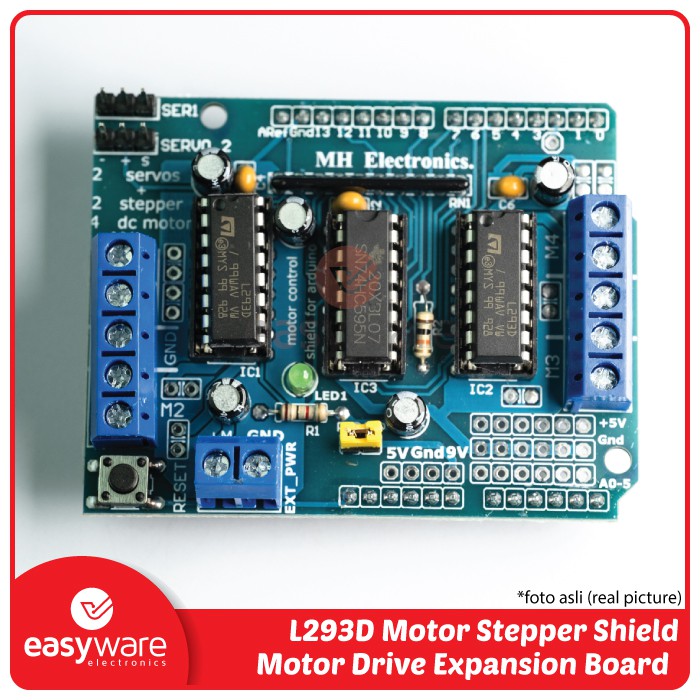

L293D L293 STEPPER MOTOR DRIVER CONTROL SHIELD

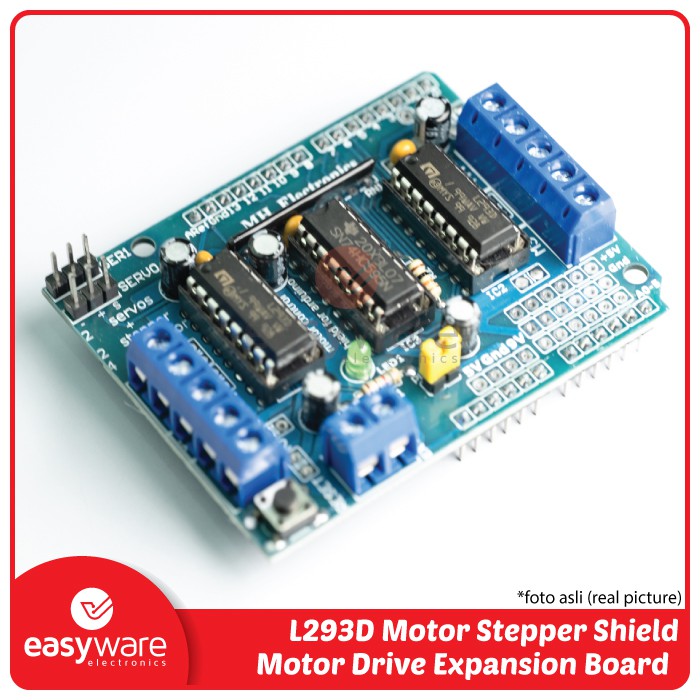

L293D L293 STEPPER MOTOR DRIVER CONTROL SHIELD
