Detail L293 L293D MOTOR DRIVER SHIELD FOR NODEMCU DOIT WIFI ESP8266 BOARD
ESP-0015========
Deskripsi
========
Shield L293 untuk nodemcu DOIT dan AMICA gan. Ukurannya terlalu kecil untuk LOLIN, Driver motor ini akan sangat membantu kita nih dalam hal mengontrol motor DC
Dengan Drivermotor ini, kita dapat membuat berbagai projeck mengendalikan motor DC Baik secara langsung atau berbasis Wifi, (IOT)
Features:
=================================
- Power input:Logic Operating current Iss: 60mA (Vi = L), 22mA (Vi = H);
- Motor Power (VM): 4.5V ~ 36V, can be a separately power supply;
- Control power supply (VIN): 4.5V ~ 9V (10VMAX), may be a separate power supply;
- Module provides short-circuit sub (short the VM and VIN), you can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor;
- Working current driving portion Io: 1.2A;
- Maximum power dissipation: 4W (T = 90 )
- Control signal input level: High: 2.3VVIHVIN; Low: -0.3VVIL1.5V
- Working temperature: -25 ~ + 125
- Drive Type: Dual high-power H-bridge driver
- ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
- Module Net Weight: about 20g
Paket :
=================================
- 1x L293 L293D MOTOR DRIVER SHIELD FOR NODEMCU WIFI ESP8266 BOARD
UNTUK HARGA GROSIR CHAT US ^^

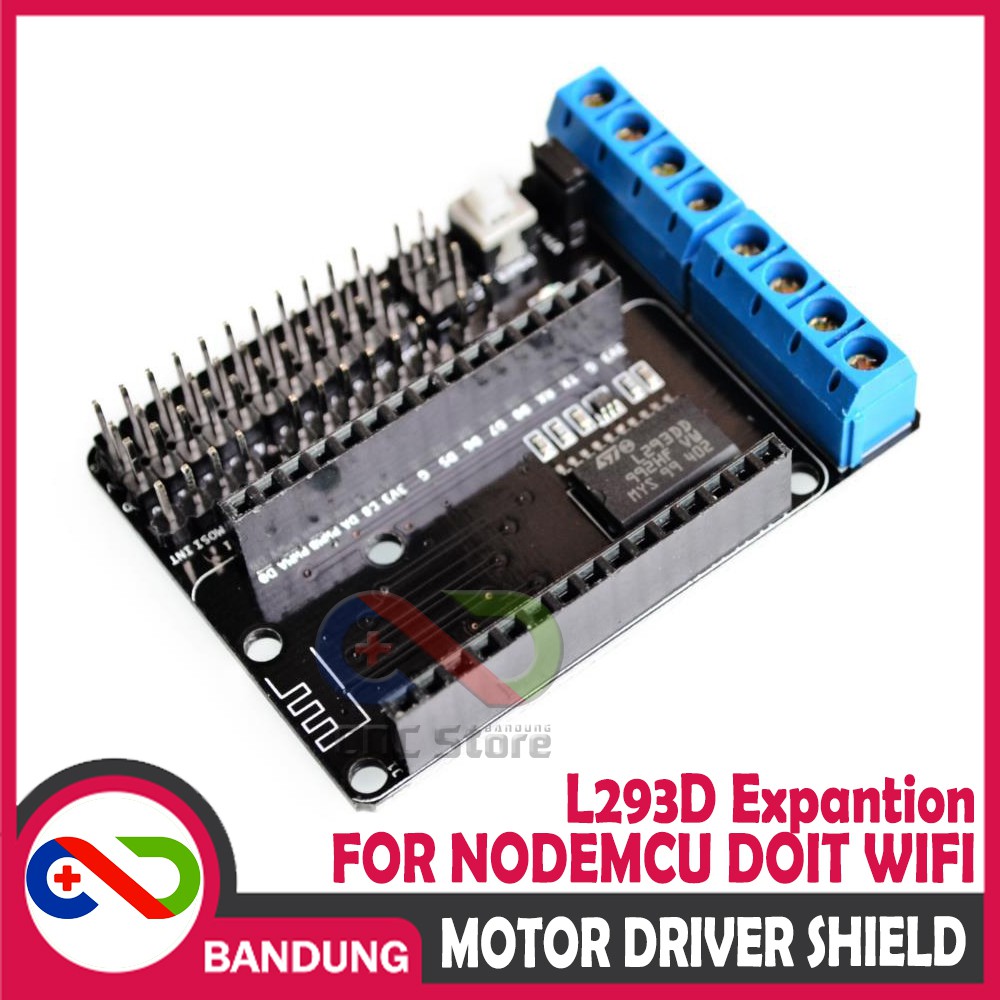

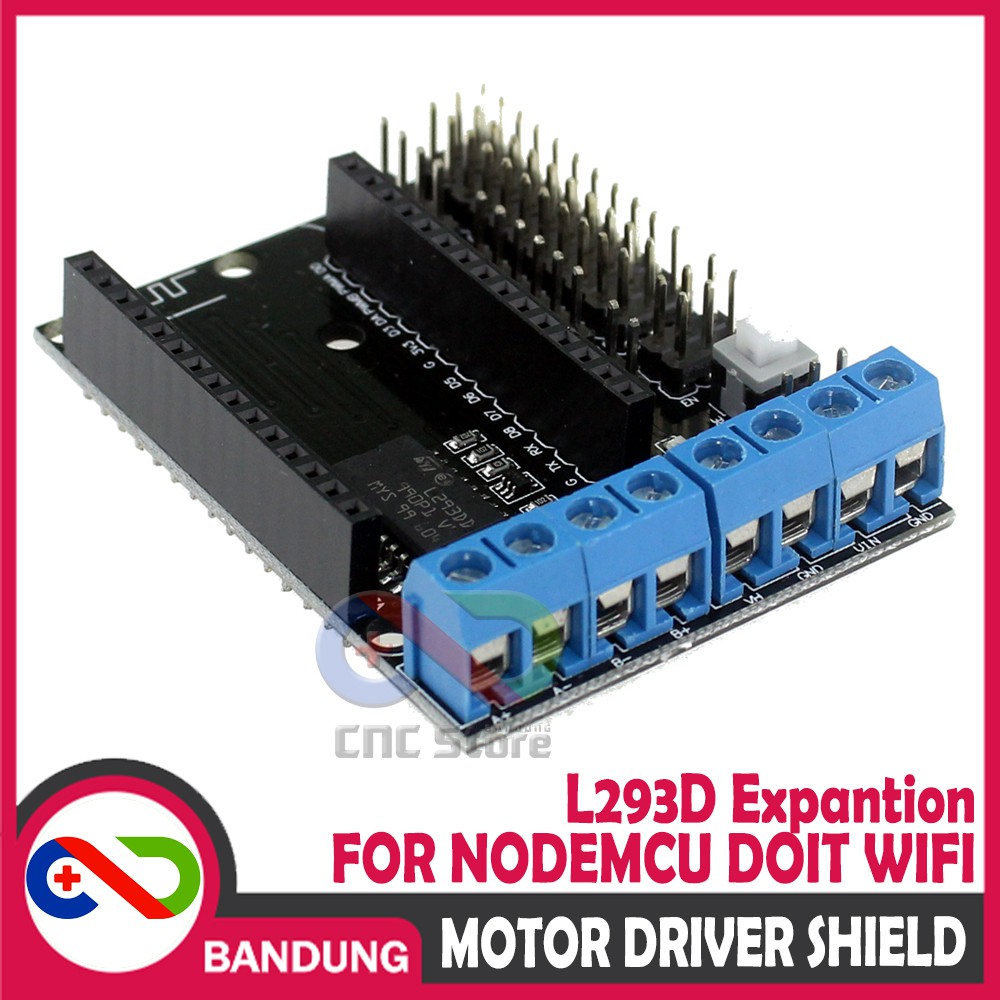

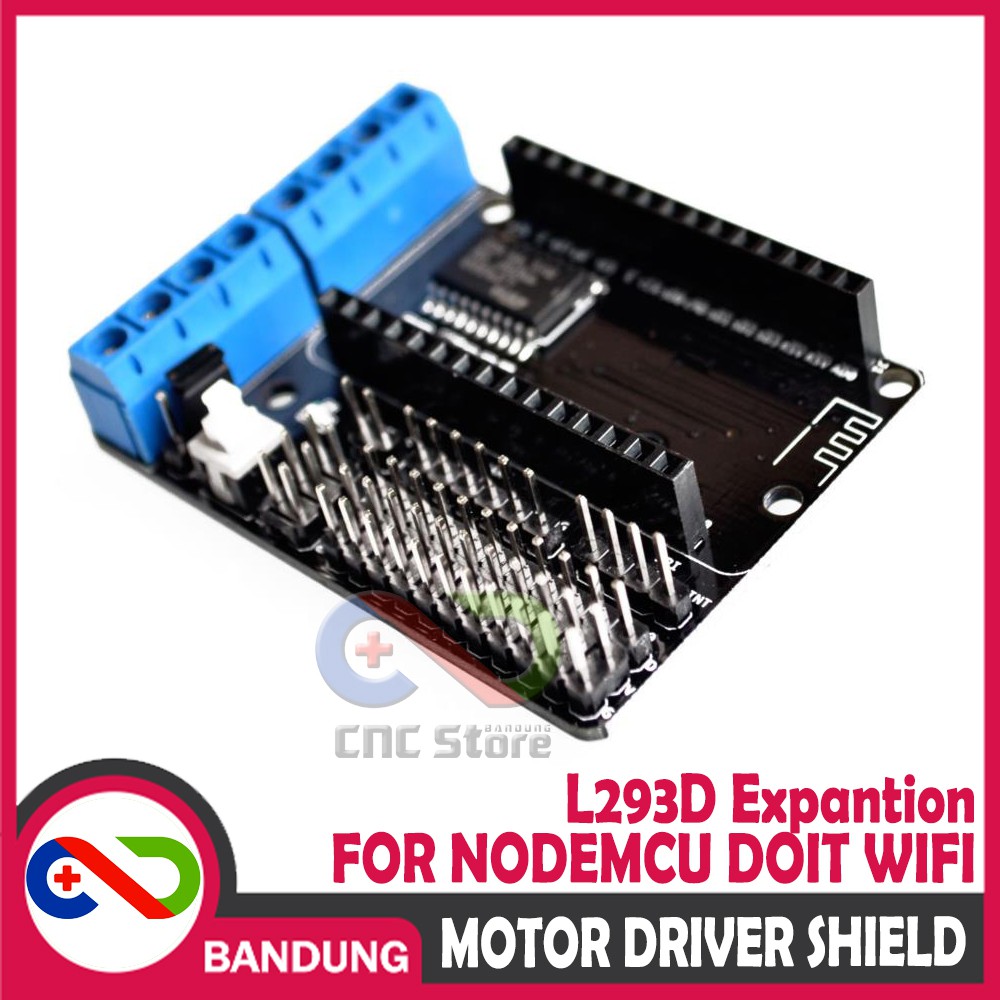

Gambar produk
