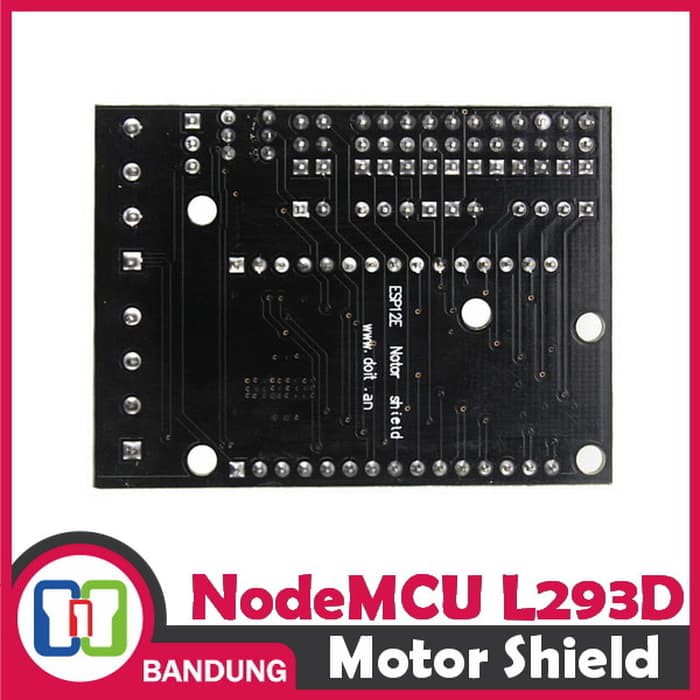

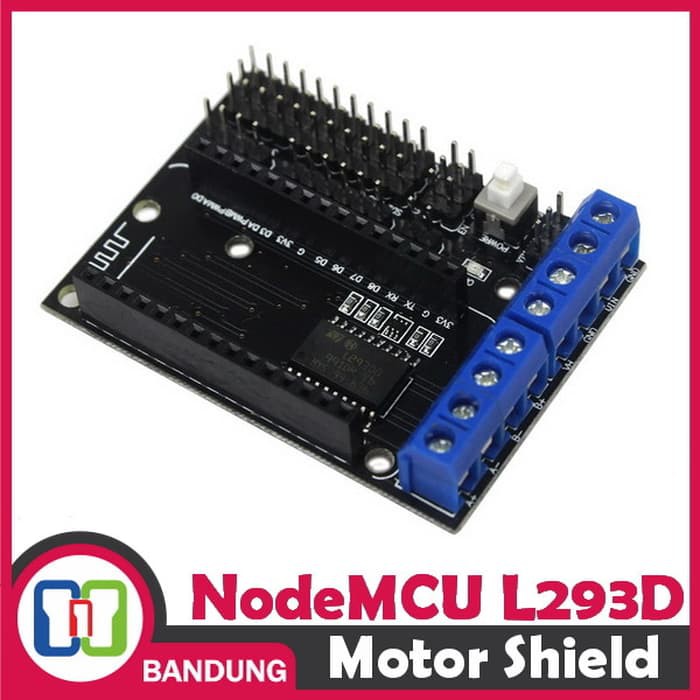

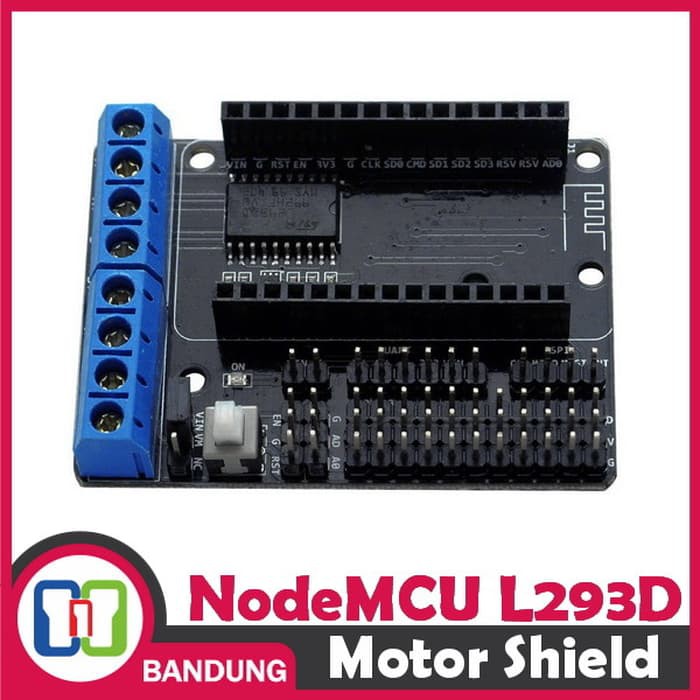

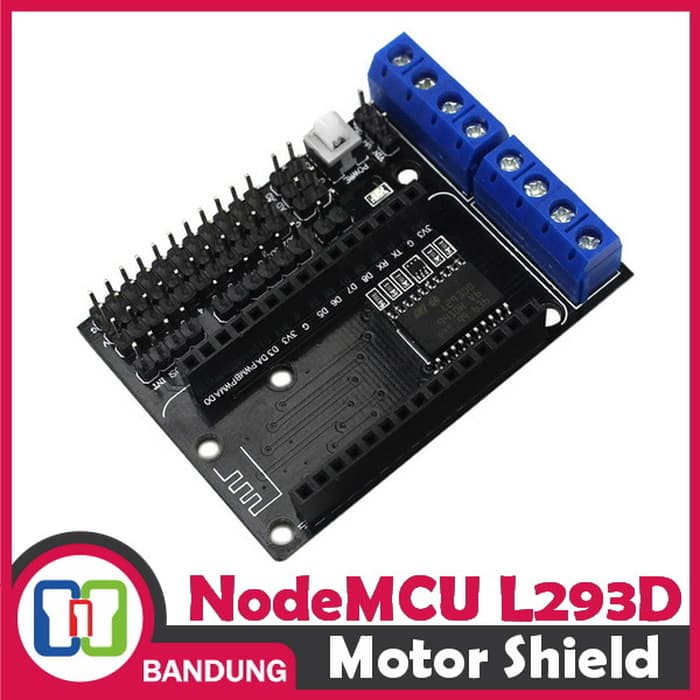

L293 L293D MOTOR DRIVER SHIELD FOR NODEMCU DOIT WIFI ESP8266

Detail L293 L293D MOTOR DRIVER SHIELD FOR NODEMCU DOIT WIFI ESP8266

P/N : ESP-0015

HARAP BACA DESKRIPSI


barang yang kami jual sudah melalui QC pabrik untuk jaminan kualitas dan fungsi. tidak ada garansi untuk barang yang kami jual, kecuali kesalahan kirim barang atau kekurangan barang dapat diselesaikan melalui diskusi. membeli berarti setuju dengan ketentuan ini.

===============

Shield L293 untuk nodemcu DOIT dan AMICA gan. Ukurannya terlalu kecil untuk LOLIN


Features:
- Power input:Logic Operating current Iss: 60mA (Vi = L), 22mA (Vi = H);
- Motor Power (VM): 4.5V ~ 36V, can be a separately power supply;
- Control power supply (VIN): 4.5V ~ 9V (10VMAX), may be a separate power supply;
- Module provides short-circuit sub (short the VM and VIN), you can easily use one power (which must be 4.5V ~ 9V) simultaneously drive and control the motor;
- Working current driving portion Io: 1.2A;
- Maximum power dissipation: 4W (T = 90 )
- Control signal input level: High: 2.3VVIHVIN; Low: -0.3VVIL1.5V
- Working temperature: -25 ~ + 125
- Drive Type: Dual high-power H-bridge driver
- ESP12E Dev Kit Control Port: D1, D3 (A motor); D2, D4 (B motor)
- Module Net Weight: about 20g

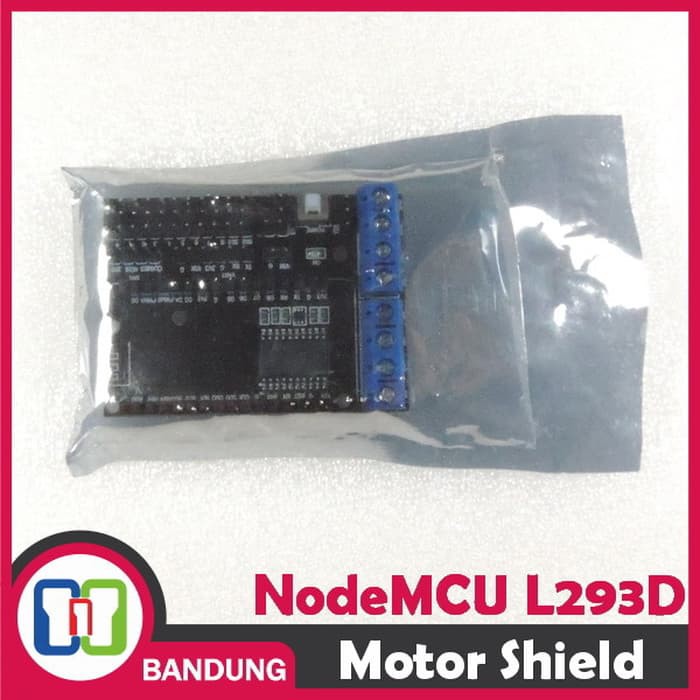

Paket : 1x L293 L293D MOTOR DRIVER SHIELD FOR NODEMCU WIFI ESP8266 BOARD

Gambar produk
