Detail L225 | Saklar LED Switch Tombol On Off Lampu Motor Universal Nmax Aerox PCX ADV Sonic CB 150 CBR Scoopy Fino

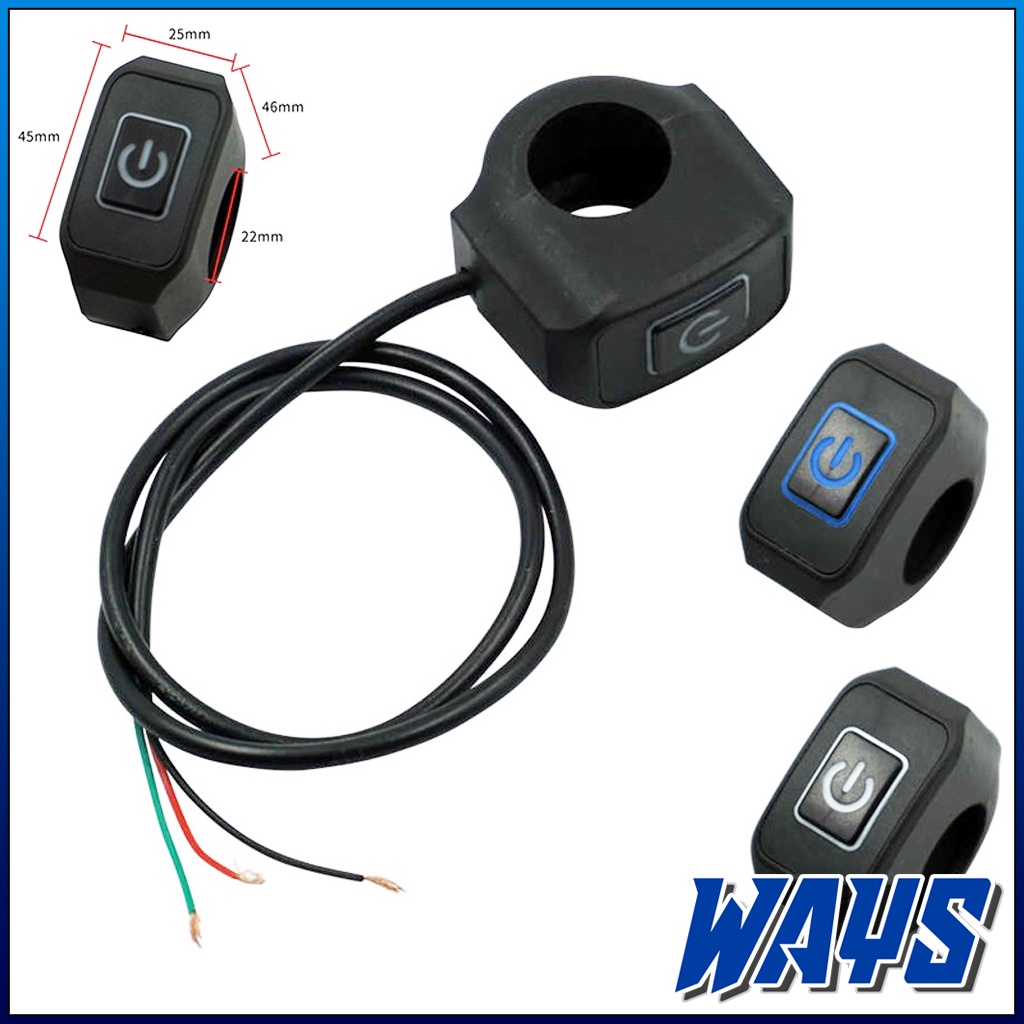

Saklar LED Sepeda Motor Tombol On Off Push Button Universal Switch

Saklar tekan yang dilengkapi lampu LED bentuk logo On/Off, waterproof dan berdaya tahan tinggi.

Jenis Saklar = Push Switch / Self Locking ( Jika ditekan, tombol akan terkunci di dalam dan akan tetap di dalam walaupun jari sudah dilepas. Untuk mengeluarkannya, tekan sekali lagi.)

Bisa 2 mode :
1. Indikator LED ON terus
2. Indikator LED ON / OFF sesuai fungsi saklar ( LED ON, saklar nyala / LED OFF, saklar mati )

Dimensi Tombol 1.2cm x 1.7cm dengan logo On/Off

Spesifikasi :
- LED Input : 3V-12V DC
- Rating Saklar : 6A
- Bahan : ABS Plastik
- Panjang Kabel : 60cm
- Dimensi Saklar : 4.6cm x 4.5cm x 2.5cm
- Berat Saklar : 48gr

Terdiri dari 3 Kabel :
- Kabel Merah : PPositif
- Kabel Hitam : Negatif
- Kabel Hijau : Positif

Cara Menyambung :
#. Logo LED ON permanen = Sambungkan kabel hijau ke 3-12V DC secara langsung, kabel hitam ke negatif
#. Logo LED ON jika di tekan (saklar ON) = Sambungkan kabel merah ke 3-12V DC, kabel hitam ke negatif
