Kyoritsu 4106 Earth ground resistance and resistivity tester grounding

Detail Kyoritsu 4106 Earth ground resistance and resistivity tester grounding

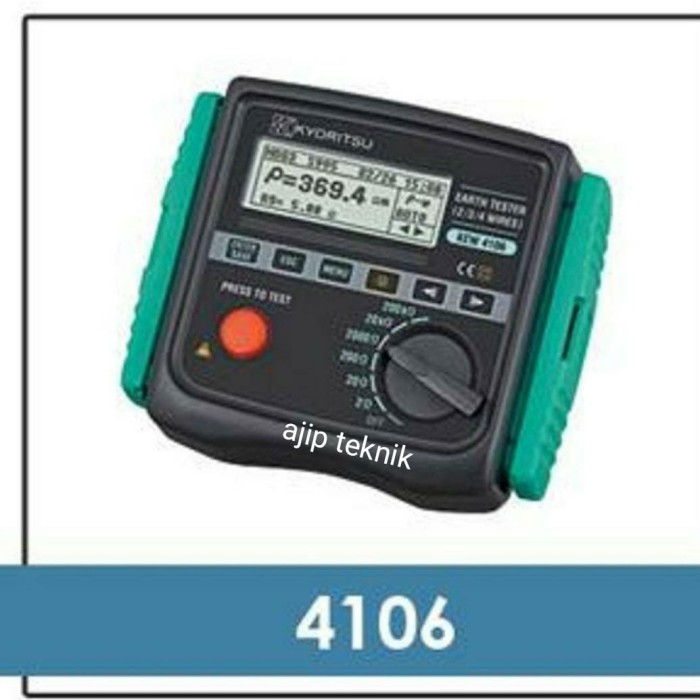

Kyoritsu KEW 4106 Earth Resistance & Resistivity Tester

The large graphic display with backlight on the Kyoritsu 4106 Earth Resistance and Resistivity Tester helps you take readings in poorly illuminated areas.

Features
High test current up to 80mA yielding resolution of 0.001 Ohms on 2Ohm range
Advanced filtering method (based on FFT Fast Forier Transform) reduces noise interference for obtaining stable measurements.
Automatic and manual selection of the test current frequency in four bands (94/105/111/128Hz). In automatic mode, DEW 4106 will select the most suitable frequency
Several sub-results can be shown on the display: Resistance of the Auxiliary Earth Spikes, Frequency of Test Current, Voltage and Frequency of Interference (noise), Residual Resistance Rk, etc.
Warning for excessive noise and high auxiliary earth spikes resistance
Large graphic display with backlight for readings in poorly illuminated areas
Up to 800 measurement results can be saved in the memory and recalled on the display
The stored results can be transferred to a PC using the "KEW Report" software and a USB adaptor which are included
Robust design with IP54 protection

What's included with the Kyoritsu 4106
Earth Resistance & Resistivity Tester
7229A Earth Precision measurement test leads (Red:40m, Green/Yellow/Black:20m)
7238A Simplified measurement test leads
2 x 8032 Auxiliary earth spikes (2 spikes/set)
8200-04 Cord reel (4 pieces)
8212-USB USB adaptor with KEW Report Software
9121 Shoulder strap
9125 Carrying case
8 x R6 Batteries
Instruction manual
Calibration certificate ...
