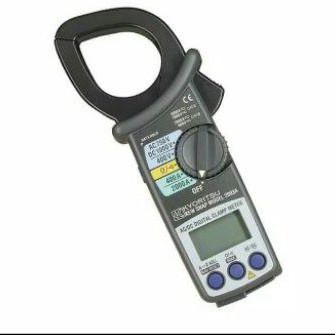

Detail Kyoritsu 2003A AC/DC Digital Clamp Meters

digital clamp meter
KYORITSU type 2003 A
can measure AC and DC currents up to 2000A.
Output terminal for connection to recorders.

Kyoritsu 2003A AC/DC Digital Clamp Meters

AC A 400A/2000A (0~1000A)
|1.5%rdg2dgt [50/60Hz]
|3%rdg4dgt [40~500Hz]
|5%rdg4dgt [500Hz~1kHz]
2000A (1001~2000A)
|3%rdg2dgt [50/60Hz]
AC V 400/750V
|1.5%rdg2dgt [50/60Hz]
|1.5%rdg4dgt [40Hz~1kHz]
DC A 400/2000A 1.5%rdg2dgt
DC V 400/1000V 1%rdg2dgt
400/4000|1.5%rdg2dgt
Continuity buzzer buzzer sounds below 5035
Output
Recorder : DC400mV against AC/DC400A
DC200mV against AC/DC2000A
Conductor Size 55mm max.
Safety Standard IEC 61010-1 CAT.IV 600V CAT.III 1000V
IEC 61010-031
IEC 61010-2-032
Frequency Response 40Hz~1kHz
Withstand Voltage 6880V AC for 5 seconds
Power Source R6P (AA) (1.5V) 2
Dimensions 250(L) 105(W) 49(D)mm
Weight 530g approx.
Accessories 7107A (Test leads)
8201 (Output Plug)
9094 (Carrying Case)
R6P (AA) 2
Instruction Manual
Optional 8008 (Multi-Tran) (AC only)
7014 (Output cord)
