KYORITSU 1019R POCKET DIGITAL MULTIMETER TRUE RMS ASLI 100%

Detail KYORITSU 1019R POCKET DIGITAL MULTIMETER TRUE RMS ASLI 100%

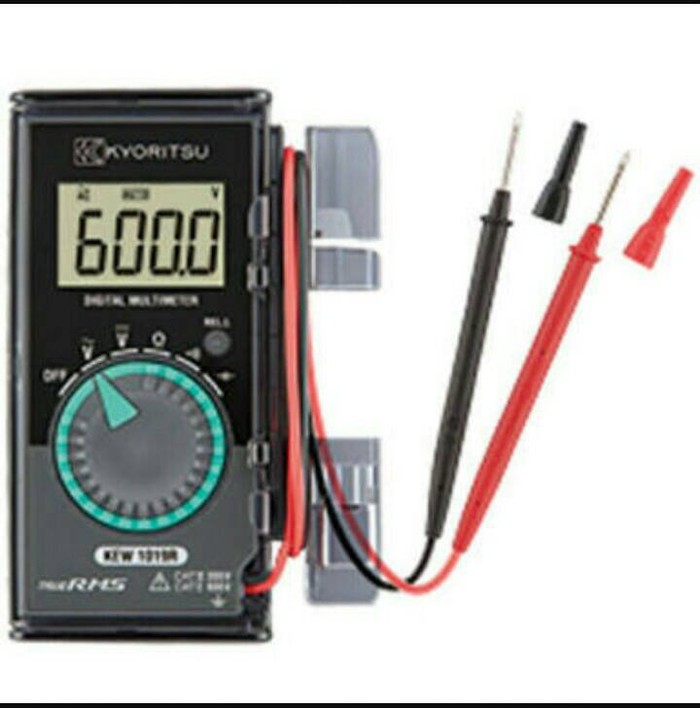

Digital Multitester Kyoritsu 1019R ( True RMS )

Elegant shiny-black finish
Comes with user-friendly Hard case
Large Display
Accurate reading with True-RMS technology
Electronic protection (no fuse!) on ohm and continuity ranges
Safety Standard IEC 61010-1 / 61010-031 / 61010-2-033 CAT III 300V / CAT II 600V

DC V 600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10M)
|0.8%rdg|5dgt (600.0mV/6.000/60.00V)
|1.0%rdg|5dgt (600.0V)
AC V
(RMS) 6.000/60.00/600.0V (Input impedance: approx. 10M)
|1.3%rdg|5dgt (6.000/60.00V) (50/60Hz)
|1.7%rdg|5dgt (6.000/60.00V) (45 - 500Hz)
|1.6%rdg|5dgt (600.0V) (50/60Hz)
|2.0%rdg|5dgt (600.0V) (45 - 500Hz)
600.0/6.000/60.00/600.0k/6.000/40.00M
|1.0%rdg|5dgt (600.0/6.000/60.00/600.0k/6.000M)
|2.5%rdg|5dgt (40.00M)
Continuity buzzer 600.0 (Buzzer threshold value 60 or less)
Capacitance 6.000/60.00/600.0nF/6.000/60.00/600.0F
|3.5%rdg|50dgt (6.000nF)
|3.5%rdg|10dgt (60.00nF)
|3.5%rdg|5dgt (600.0nF/6.000/60.00F)
|4.5%rdg|5dgt (600.0F)
Applicable standards IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2
Power source CR2032 (3V) 1
Continuous measuring time Approx. 120 hours, Auto sleep: approx: 15 minutes
Dimensions 126(L) 85(W) 18(D)mm
Weight Approx. 135g (including hard case, battery)
Accessories 9188 (Hard case), CR2032 1, Instruction manual

* AC V: CF3(50/60Hz) For non-sinusoidal waveforms, add 0.5%rdg5dgt, 900Vpeak ...
