KYORITSU 1009 DIGITAL MULTIMETER ORIGINAL ASLI 100%

Detail KYORITSU 1009 DIGITAL MULTIMETER ORIGINAL ASLI 100%

Kyoritsu digital multimeter type 1009 ORIGINAL
spesifikasi :
DC V 400mV/4/40/400/600V (Input Impedance 10M)
|0.6%rdg4dgt (400mV/4/40/400V)
|1.0%rdg4dgt (600V)
AC V 400mV/4/40/400/600V (Input Impedance 10M)
|1.6%rdg4dgt (20 - 400mV)
|1.3%rdg4dgt (4/40V)
|1.6%rdg4dgt (400/600V)
DC A 400/4000A/40/400mA/4/10A
|2.0%rdg4dgt (400/4000A)
|1.0%rdg4dgt (40/400mA)
|1.6%rdg4dgt (4/10A)
AC A 400/4000A/40/400mA/4/10A
|2.6%rdg4dgt (400/4000A)
|2.0%rdg4dgt (40/400mA/4/10A)
400/4/40/400k/4/40M
|1.0%rdg4dgt (400/4/40/400k/4M)
|2.0%rdg4dgt (40M)
Continuity buzzer 400 (Buzzer sounds below 70)
Diode Test 1.5V Release Voltage:Approx. 0.4mA Test Current
Capacitance Test 40/400nF/4/40/100F
Frequency 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz
DUTY 0.1 - 99.9% (Pulse width/Pulse period) 2.5%5dgt
Withstand Voltage AC 3700V / 1min.
Applicable standards IEC 61010-1 CAT III 300V
IEC 61010-2-031
IEC 61326
Power Source R6 (1.5V) 2
Dimensions 161(L) 82(W) 50(D)mm
Weight Approx. 280g
Accessories 7066A (Test leads)
8919 (Ceramic fuse [10A/600V]) 1
8923 (Fuse [0.5A/600V]) 1
R6 2
Instruction manual

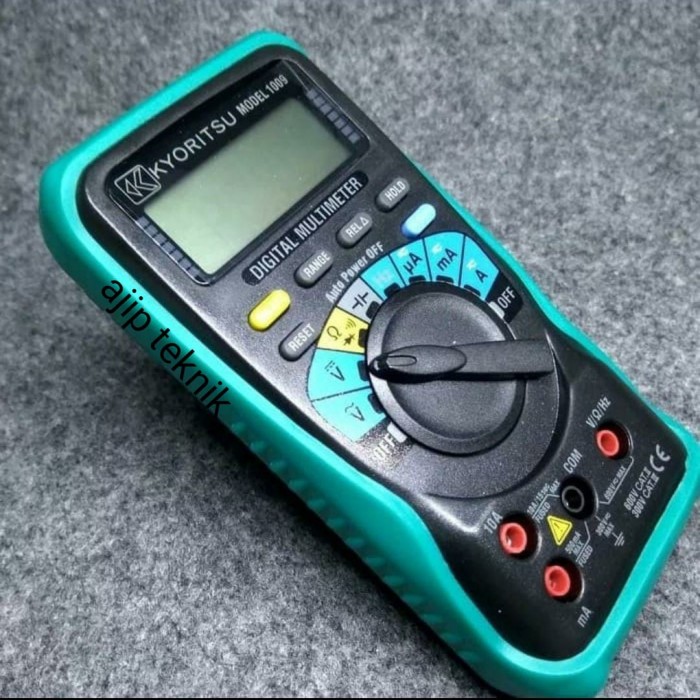

real picture


langsung di order saja gan ..
Tolong Tanyakan Stok Terlebih Dahulu kepada Admin Karena Stok Berjalan juga untuk toko Offline... . Kami Menerima Pembelian Barang Secara Grosir Dengan Harga SPECIAL , Untuk Pengambilan Grosir Silahkan Hub Kami melalui Chat. . RESI UPLOAD MAX 1 HARI SETELAH PEMESANAN . Di wajibkan setiap pembukaan packing melakukan video , jika barang rusak/kekurangan barang akan di validasi melalui video , jika tidak ada bukti video maka di anggap tidak sah untuk komplain maupun resolusi . Jika Sudah Berbelanja Jangan Lupa Untuk Memberi Ulasan Yaaaa.... . Terima Kasih...
